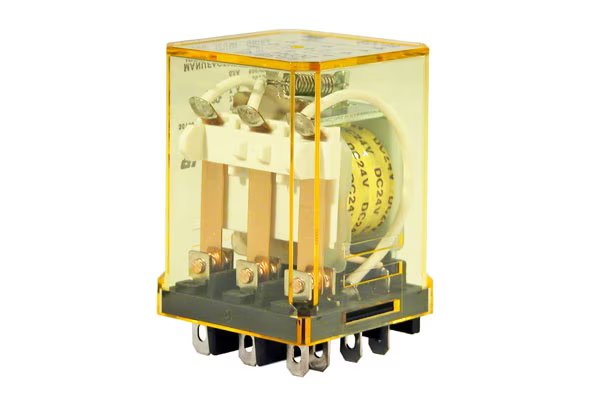

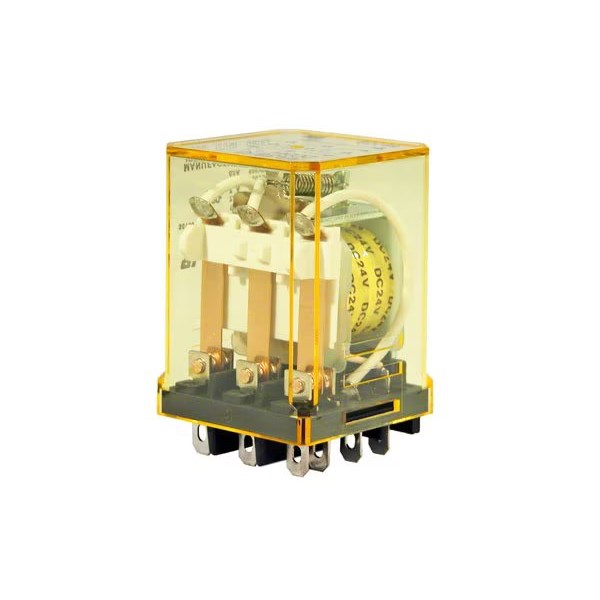

IDEC RELAY, 3PDT, 12V DC, 10A BLADE TERMINAL RR3B-UDC12

Product Code: RR3B-UDC12

The IDEC RR3B-UDC12 is a versatile 3PDT relay designed for efficient power management in electrical circuits. It operates on a 12V DC coil voltage and can handle up to 10A loads with blade terminal connections. This midget power type relay comes with options such as an indicator, a check button for test operations, and a side flange for added functionality. For installation flexibility, it supports DIN rail, surface, and panel mount sockets to suit various mounting requirements.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 30
Operating Time 25ms
Resistance to Shock (m/s²) 100
Resistance to Vibrations 10 to 55Hz
Terminal Shape Blade Terminal
Coil Voltage DC (V) 12
Contact Material Silver
Contacts 3PDT
Dimensions (mm) 36W x 54.8H x 36D
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 10,000,000
Model Standard
Operating Humidity 5 to 85%
Operational Temperature Range (°C) -25 to 40
Weight (g) 82
