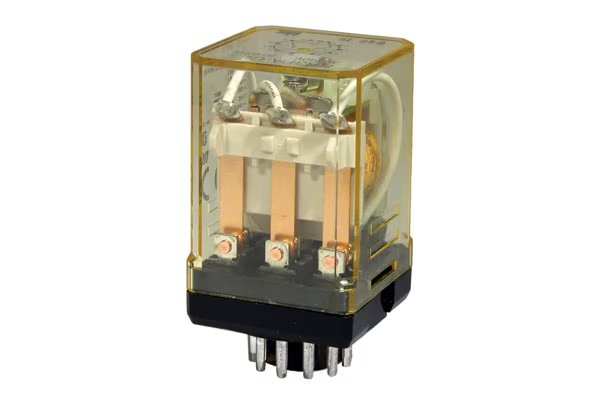

IDEC RELAY, 3PDT, 110V DC, 10A ROUND 11 PIN RELAY RR3PA-UDC110

Product Code: RR3PA-UDC110

The IDEC RR3PA-UDC110 is a robust 3PDT relay designed for demanding industrial environments. This 110V DC, 10A relay features a wear-resistant self-holding mechanism, ensuring high durability and reliability against vibration and shock. It is specifically engineered for latching relay applications, providing stable performance where it matters most. Additionally, this round 11-pin relay meets RoHS compliance standards, adhering to environmental safety regulations.

Technical Specifications

Contact Resistance (mO) 30
Operating Time 20ms (Measured at the rated voltage (at 20°C))
Power Consumption (VA) AC: 3VA (50Hz), 2.5VA (60Hz)
Resistance to Shock (m/s²) 100
Resistance to Vibrations 10 to 55Hz
Brand IDEC
Terminal Shape Pin Terminal
Ambient Temperature Range (°C) -25 to 40
Coil Voltage DC (V) 110
Contact Configuration 3PDT
Contact Material Silver
Contacts 3PDT
Dimensions (mm) 36.4W x 56H x 36.4D
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 Operations
Minimum Mechanical Life 10,000,000 Operations
Model Basic
No. of Pins 11
Operating Humidity 5 to 85% RH (No Condensation)
Operational Temperature Range (°C) -25 to 40
Power Consumption (W) DC:1.5W
Rated Current (A) 10
Terminal Type Pin
Weight (g) 96
