Product Code: RR3B-UDC110

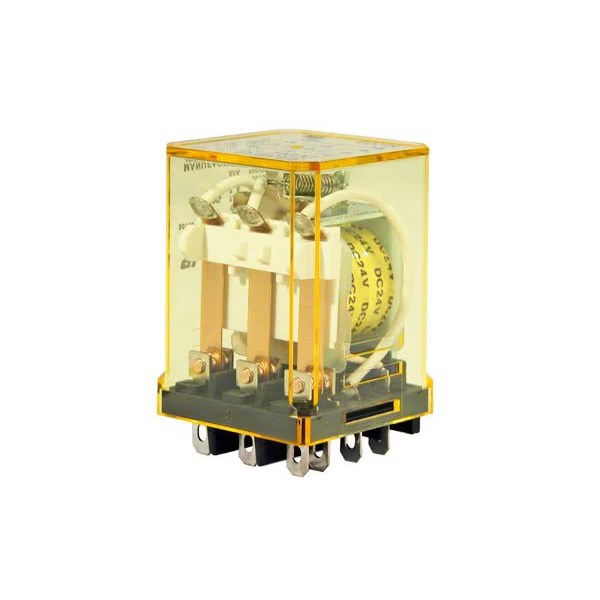

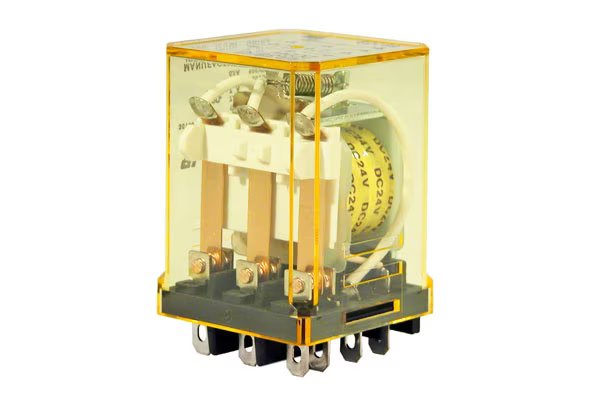

The IDEC RR3B-UDC110 is a compact midget power relay designed for versatile applications. This 3PDT relay operates at 110V DC with a current capacity of 10A and features blade terminal connections. It includes an indicator and a check button for convenient test operations, as well as a side flange for additional mounting options. Compatible with DIN rail, surface, and panel mount sockets, it offers flexibility in installation to meet various industrial requirements.

Brand	IDEC
Contact Resistance (mO)	30
Operating Time	25ms
Resistance to Shock (m/s²)	100
Resistance to Vibrations	10 to 55Hz
Terminal Shape	Blade Terminal
Coil Voltage DC (V)	110
Contact Material	Silver
Contacts	3PDT
Dimensions (mm)	36W x 54.8H x 36D
Insulation Resistance (MO)	100
Minimum Electrical Life	200,000
Minimum Mechanical Life	10,000,000
Model	Standard
Operating Humidity	5 to 85%
Operational Temperature Range (°C)	-25 to 40
Weight (g)	82
