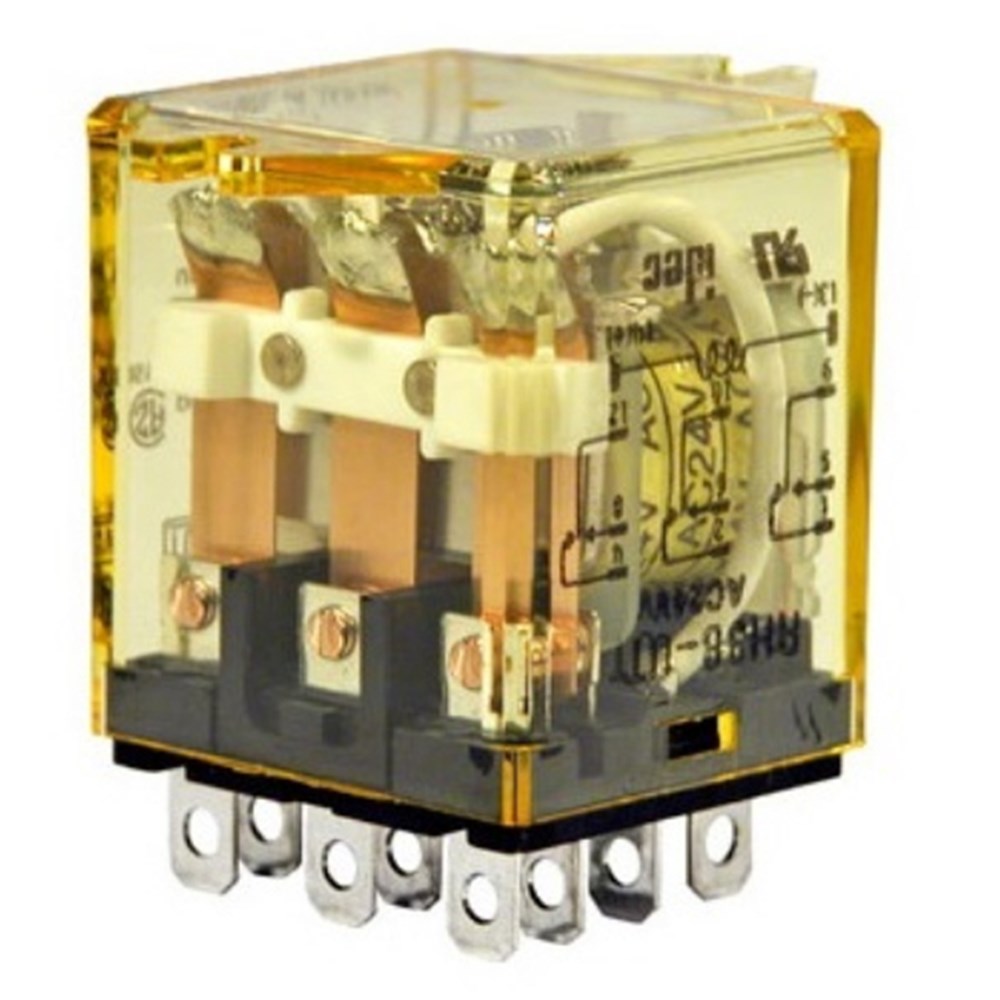

IDEC PLUG-IN RELAY 3PDT 110VAC 10A RH3B-UAC110

Product Code: RH3B-UAC110

The IDEC RH3B-UAC110 is a compact power relay from the RH3 Series, designed for efficient space utilization and high-performance switching. This 3PDT relay operates with a 110VAC coil voltage and supports a 10A switching current. Its blade style terminals ensure secure connections, while its compact size does not compromise on its robust 10A contact capacity. Ideal for applications requiring reliable power relaying in a condensed form factor.

Technical Specifications

Brand IDEC
Coil Voltage AC (V) 110
Contact Configuration 3PDT
Contact Material Silver cadmium oxide
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000 operations
Minimum Mechanical Life 50,000,000 operations
No. of Poles 3P
Operating Humidity 45 to 85% RH (no condensation)
Operational Temperature Range (°C) -25 to +40
Rated Current (A) 10
Relay Type RH3 3PDT Relay
Series RH
Suitable Base SH3B-05C
Terminal Type Blade
Weight (g) 50
