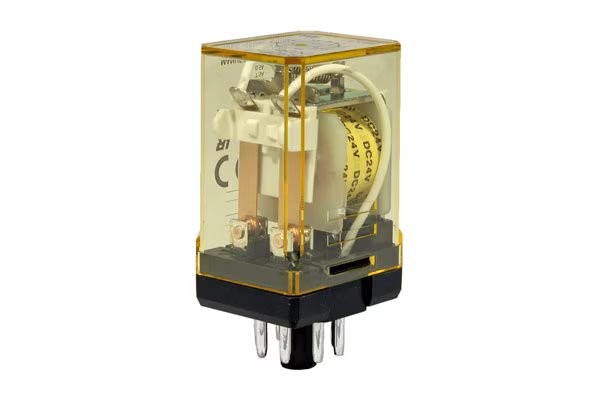

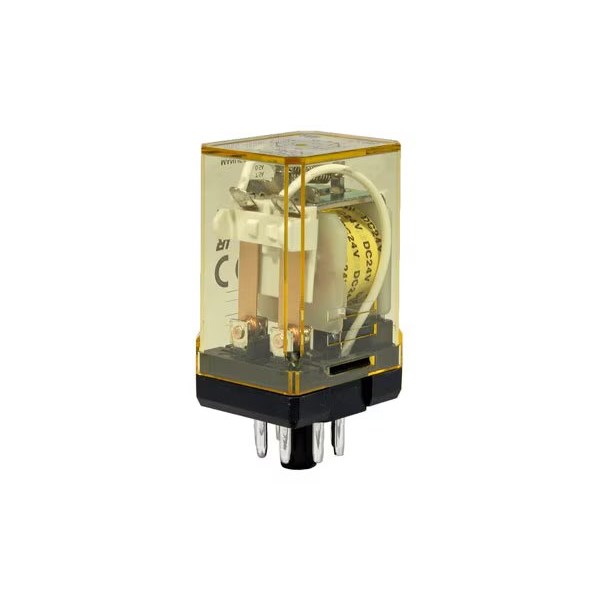

IDEC RELAY 10A, 24V DC DPDT RR2P-ULCDC24V

Product Code: RR2P-ULCDC24V

The IDEC RR2P-ULCDC24V is a DPDT relay designed for dependable performance with a 10A, 24V DC rating. It offers high reliability and longevity, suitable for various applications. This relay comes with global certifications including UL, CSA, TUV, and CE marks. It features a test operation check button and an indicator light for ease of use. Multiple mounting options are available such as flange mounting, DIN socket, or panel mount socket to accommodate different installation requirements.

Technical Specifications

Brand IDEC
Contact Resistance (mO) 30
Operating Time 25ms
Resistance to Shock (m/s²) 100
Resistance to Vibrations 10 to 55Hz
Terminal Shape Pin Terminal
Coil Voltage DC (V) 24
Contact Material Silver
Contacts DPDT
Minimum Electrical Life 200,000
Minimum Mechanical Life 10,000,000
Model With Indicator and Check Button
Operating Humidity 5 to 85%
Operational Temperature Range (°C) -25 to 40
Weight (g) 90
