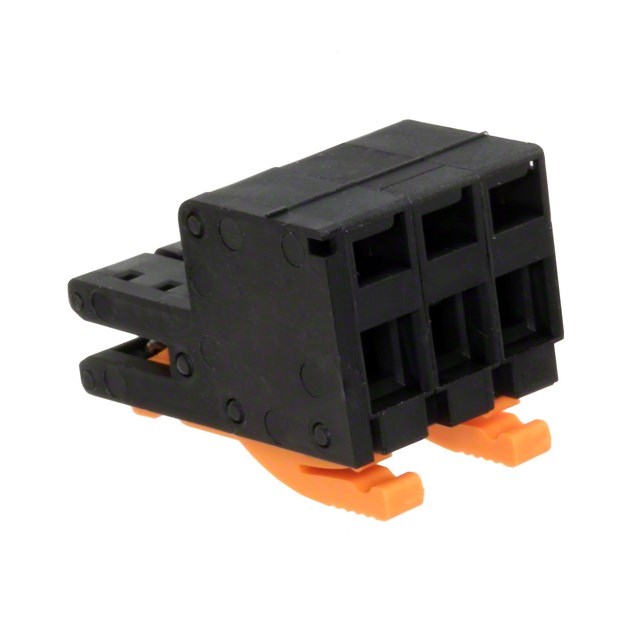

RED LION PLUG IN TERMINAL BLOCK 3 POSITION TB100003

Optimize your industrial timing operations with the Red Lion C48T Series Panel Meter, a versatile digital display designed for precision and reliability. This dual preset timer features a compact 1/16 DIN size and offers clear readings on a two-line, six-digit LCD, available in both reflective and backlit transmissive models. The main display boasts 0.3-inch high digits while the secondary display has 0.2-inch high digits for easy monitoring. The C48T is engineered to accommodate a wide range of power requirements. For AC-powered systems, it accepts an input voltage from 85 to 250 VAC at 50/60 Hz, consuming a maximum of 9 VA, and also supports DC power between 11 to 14 VDC at up to 150 mA. Alternatively, the DC version can operate on 18 to 36 VDC with a maximum power consumption of 5.5 W or on AC power at 24 VAC with standard tolerances. Data integrity is ensured with nonvolatile E2PROM memory, preserving settings even during power losses. Output options include solid-state (NPN or PNP open collector) and relay outputs, along with programmable timed outputs for diverse application needs. For advanced setups requiring communication capabilities, an optional RS485 serial communications interface is available. Whether you're managing manufacturing processes or complex machinery, the Red Lion C48T Panel Meter delivers accurate timing control within your system's architecture.
