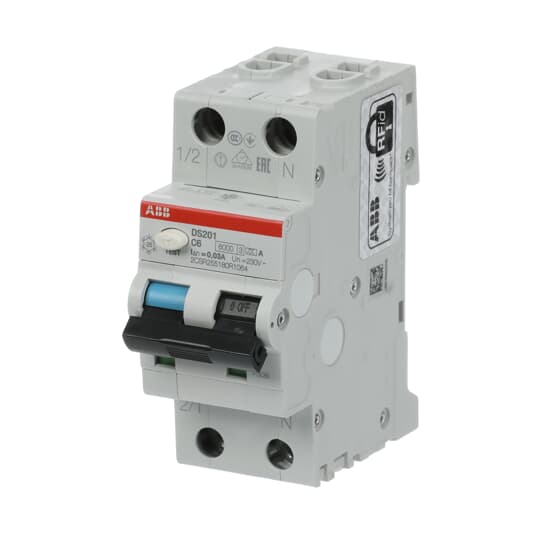

ABB RCBO 6kA 1P+N 6A 30mA TYPE A, C CURVE 2 MODULE DS201C6A30

Product Code: DS201C6A30

The DS201 series is a 1P+N RCBO in two-modules width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating and direct pulsating earth fault currents; protection against indirect contacts and additional protection against direct contacts.

Technical Specifications

Dielectric Test Voltage (kV) 2
Energy Limiting Class 3
Leakage Current Type A
Release Type C
Test Voltage (V) 170 - 264
Brand ABB
Connecting Capacity Busbar 10 - 10mm² Stranded 0.75 - 25mm² Flexible with Ferrule 0.75 - 16mm² Flexible 0.75 - 16mm²
Curve Type C
Degree of Protection Terminals: IP20 Housing: IP40
Dimensions (mm) 35W x 85H x 69D
Mounting Type DIN Rail
No. of Modules - Width 17.5 mm 2
No. of Poles 2
Operational Temperature Range (°C) -25 to 55
Overvoltage Category III
Power Loss (W) 2.6
Rated Conditional Short-Circuit Current - Inc (kA) 10
Rated Current (A) 6
Rated Frequency (Hz) 50 - 60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 500
Rated Operational Voltage (V) 240
Rated Residual Current (mA) 30
Rated Short-Circuit Capacity - Icn (kA) 6
Rated Voltage (V) 230
Standards and Approvals IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1
Terminal Type Screw Terminals
Type of Residual Current Type A
Weight (g) 200
Wire Stripping Length (mm) 12
