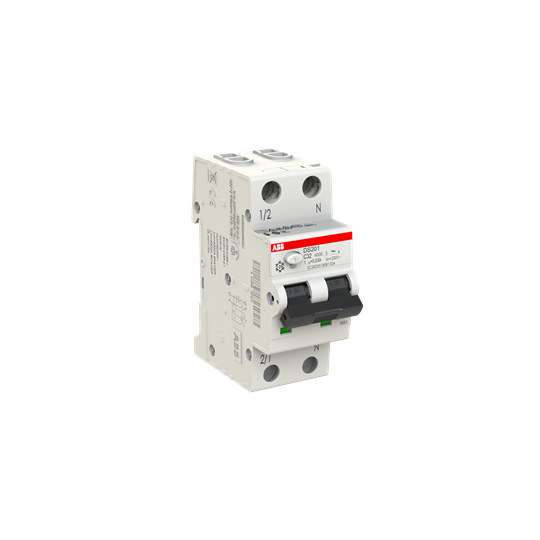

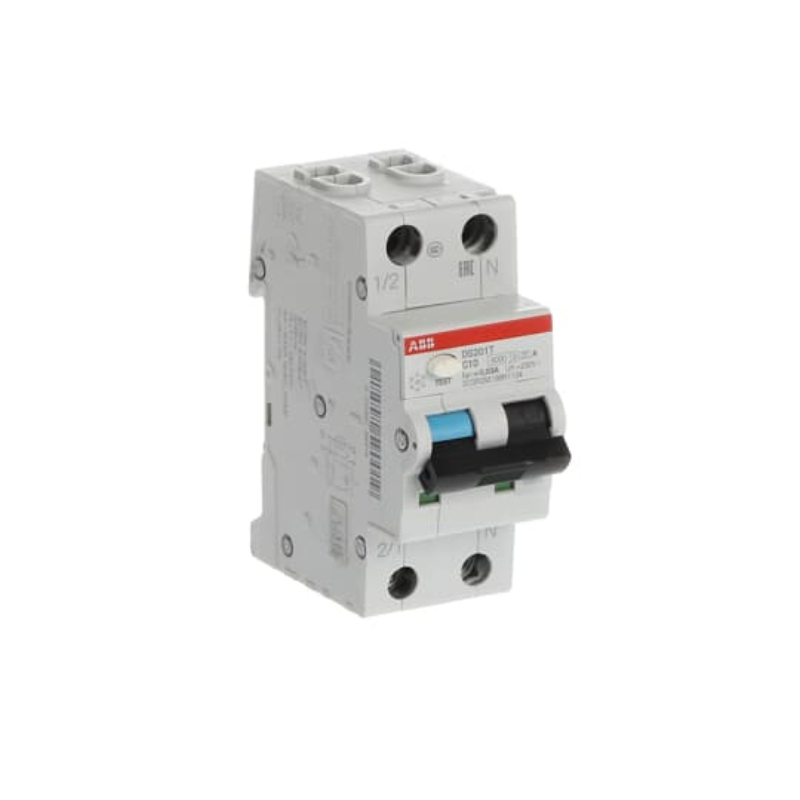

ABB RCBO, 6kA 1P+N 32A C-CURVE 30mA DS201C32A30

Product Code: DS201C32A30

Technical Specifications

Breaking Capacity 240V AC - Icu (kA) 6
Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 4
AC Voltage (V) 230/240
Breaking Capacity (kA) 6 @240 V AC
Current Rating (A) 32
Curve Type C Curve
Degree of Protection IP40 (Housing), IP20 (Terminals)
Dimensions (mm) 35Wx85Hx69D
Family DS200
No. of Poles 1P+N
Operational Temperature Range (°C) -25 to +55
Poles 1P+N
Rated Current (A) 32
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage AC (V) 500
Rated Operational Voltage AC (V) 230/240
Rated Residual Current (mA) 30
Rated Voltage (V) 230
Residual Current Type A
Series DS200
Terminal Type Screw Terminals
Trip Curve C Curve
Type of Residual Current A
