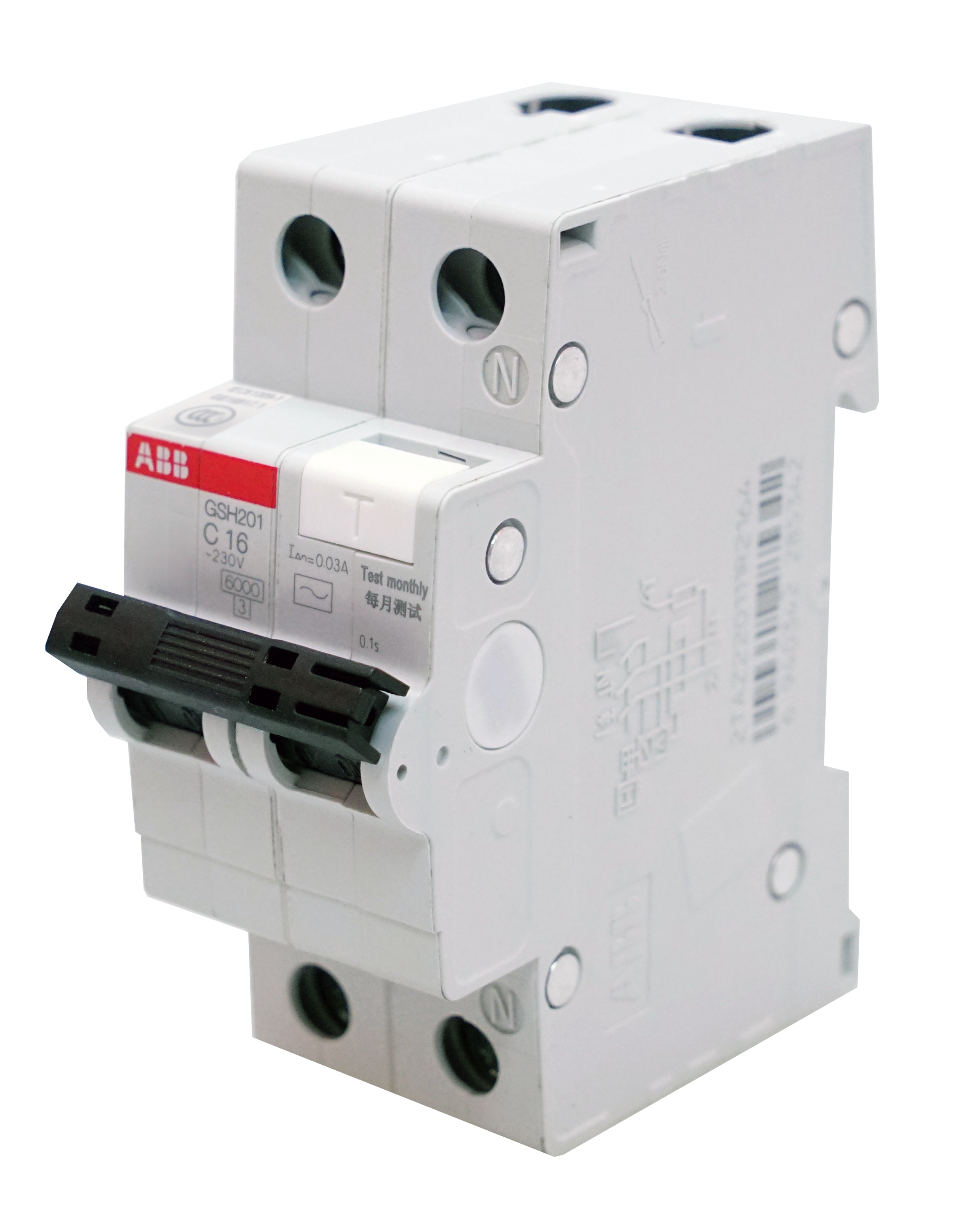

ABB RCBO 6kA 1P+N 20A C CURVE TYPE A 30mA GSH201C20A30

Product Code: GSH201C20A30

The RCBO is a combined MCB/RCD that provides protection against short circuit, thermal overload, and earth leakage. It has a breaking capacity of 6kA at 230VAC and is designed for use in a 1P+N configuration. The RCBO has a current rating of 20A and follows the C curve Type A standard. It has a sensitivity of 30mA and occupies two modules in an electrical panel or distribution board.

Technical Specifications

Brand ABB
AC Voltage (V) 230/240
Ambient Temperature Range (°C) -25 to 55
Current Rating (A) 20
Curve Type C Curve
Degree of Protection IP20
Dimensions (mm) 85H x 69D x 35W
Family GSH201
Icn-Rated Short Circuit Capacity (kA) 6
Mounting Type DIN Rail
No. of Poles 1P+N
Poles 1P+N
Rated Current (A) 20
Rated Frequency (Hz) 50/60
Rated Operational Voltage AC (V) 230
Rated Residual Current (mA) 30
Rated Short-Circuit Capacity - Icn (kA) 6
Residual Current Type A
Series GSH201
Standards and Approvals IEC 61009-1, GB/T 16917.1, AS/NZS 61009.1
Terminal Type Cage
Trip Curve C Curve
Type of Residual Current A
