Energy Limiting Class	3
No. of Protected Poles	1
Rated Service Short-Circuit Breaking Capacity - Ics (kA)	11.2
Brand	ABB
Ambient Temperature Range (°C)	-25 to 55
Dimensions (mm)	35W x 85H x 69L
No. of Poles	2
Power Loss (W)	Average per Pole 1.3 W Phase Pole 2.4 W Neutral Pole 0.2 W Total 2.6 W
Rated Current (A)	6
Rated Frequency (Hz)	50 - 60
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	500
Rated Operational Voltage (V)	240
Rated Residual Current (mA)	30
Rated Short-Circuit Capacity - Icn (kA)	10
Standards	IEC/EN 61009-1, IEC/EN 61009-2-1
Tightening Torque (Nm)	2.8
Trip Curve	C
Type of Residual Current	Type F
Weight (kg)	0.2
Wire Stripping Length (mm)	12

DIN MCB

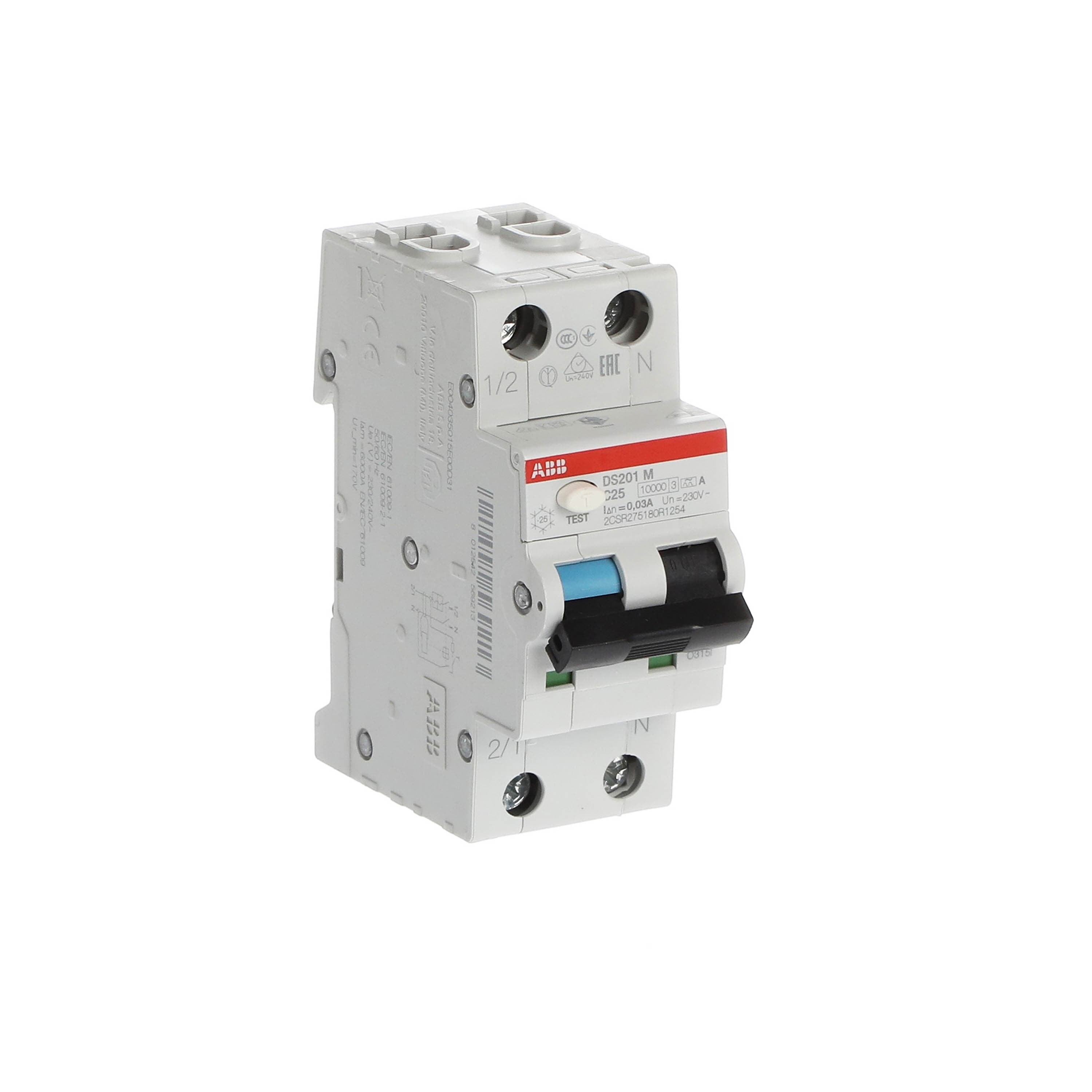

ABB RCBO 10kA 1P+N 6A 30mA TYPE F DS201MC6F30
