DIN MCB

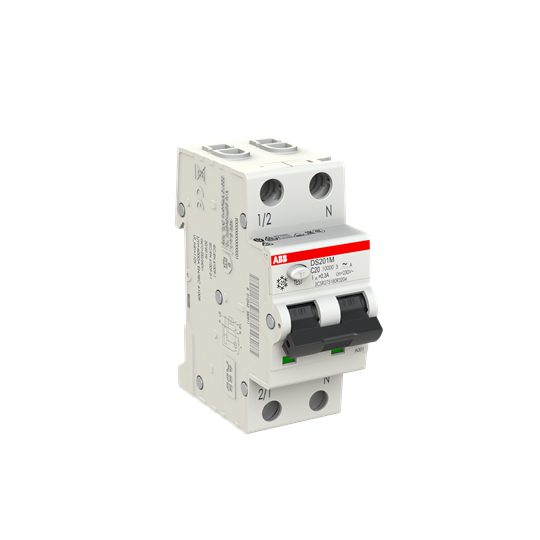

ABB RCBO 10KA 1P+N 20A C CURVE TYPE A 300mA DS201MC20A300

Product Code: DS201MC20A300

The RCBO is a combined MCB/RCD that provides protection against short circuit, thermal overload, and earth leakage. It has a breaking capacity of 10kA at 230V AC and is designed for use in a 1P+N configuration. The RCBO has a current rating of 20A and follows the C curve Type A standard. It is two modules wide and has a sensitivity of 300mA.

Technical Specifications

Brand ABB
AC Voltage (V) 230/240
Ambient Temperature Range (°C) -25 to 55
Current Rating (A) 20
Curve Type C Curve
Degree of Protection IP40 (Housing), IP20 (Terminals)
Dimensions (mm) 85H x 69D x 35W
Family DS201M
Icn-Rated Short Circuit Capacity (kA) 10
Mounting Type DIN Rail
No. of Poles 1P+N
Poles 1P+N
Rated Current (A) 20
Rated Frequency (Hz) 50/60
Rated Operational Voltage AC (V) 230
Rated Residual Current (mA) 300
Rated Short-Circuit Capacity - Icn (kA) 10
Residual Current Type A
Series DS201 M
Standards and Approvals IEC / EN 61009-1, IEC / EN 61009-2-1
Terminal Type Screw
Trip Curve C Curve
Type of Residual Current A
