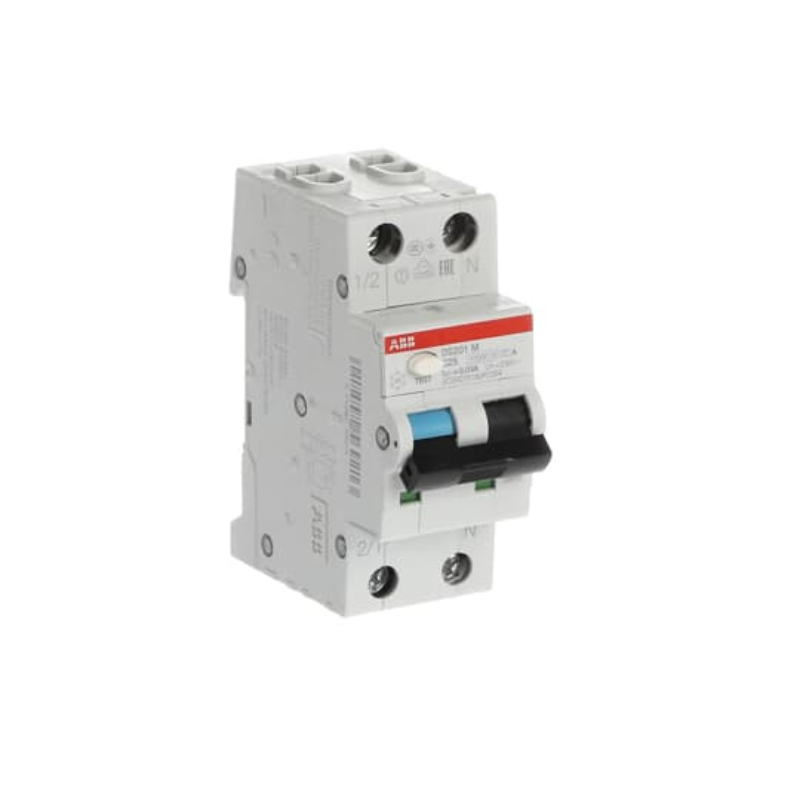

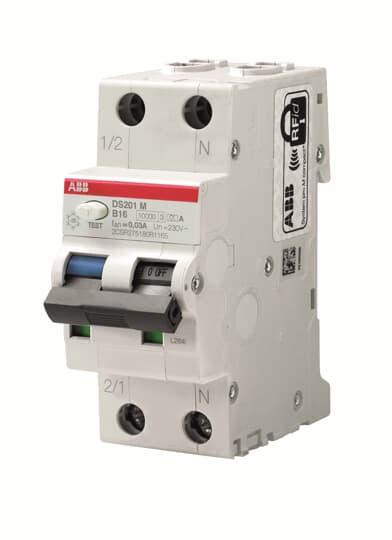

ABB DS201MC16A10 RCBO 10kA 1P+N 16A C CURVE TYPE A 10mA

Product Code: DS201MC16A10

The ABB RCBO is a combined MCB/RCD that offers protection against short circuit, thermal overload, and earth leakage. It has a breaking capacity of 10kA at 230VAC and is designed for commercial and industrial use. This RCBO is 1P+N (single pole + neutral) and has a current rating of 16A. It features a C curve and is Type A with a sensitivity of 10mA. The RCBO is two modules wide, making it compact and space-saving.

Technical Specifications

Brand ABB
Impulse Withstand Voltage (kV/1.2µS) 4
AC Voltage (V) 230/240
Application Commercial and Industrial
Breaking Capacity (kA) 15 @230 V AC
Breaking Capacity 230V AC - Icu (kA) 15
Current Rating (A) 16
Curve Type C Curve
Degree of Protection IP40 (Housing), IP20 (Terminals)
Family DS201M
Housing Material Insulation Group I - II, RAL 7035
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 15
Mounting Type DIN Rail
No. of Poles 1P+N
Poles 1P+N
Pollution Degree 2
Power Loss (W) 3.3
Rated Conditional Short-Circuit Current - Inc (kA) 15
Rated Current (A) 16
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage AC (V) 500
Rated Operational Voltage AC (V) 230/240
Rated Residual Current (mA) 10
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Voltage AC (V) 230
Residual Current Type A
Series DS201M
Test Voltage (kV) 0.11-0.264
Trip Curve C Curve
Type of Residual Current A
