Brand	ABB
Connecting Capacity	Solid 1 x 1 - 6mm² Solid 2 x 2.5mm² Flexible 1 x 0.75 - 2 x 2.5mm²
Ambient Temperature Range (°C)	-25 to 55
Colour	Red
Conductor Material	Copper
Degree of Protection	IP20
Dimensions (mm)	9W x 85H x 68D
No. of Modules - Width 17.5 mm	0.5
No. of Normally-closed Contacts	1
No. of Normally-open Contacts	1
No. of Poles	2
Power Loss (W)	0.5
Rated Current (A)	16
Rated Frequency (Hz)	50/60
Rated Operational Voltage AC (V)	250
Rated Voltage (V)	Lamp: 48V
Standards and Approvals	EN60068-2-1, EN60068-2-2, EN60068-2-30, DIN EN 60669-1, VDE 0632-1, UL508
Storage Temperature Range (°C)	-40 to 70
Switch Type	Double Interrupting Contacts
Switching Voltage (V)	250
Tightening Torque (Nm)	1.2 - 1.5
Weight (kg)	0.049

DIN Accessories

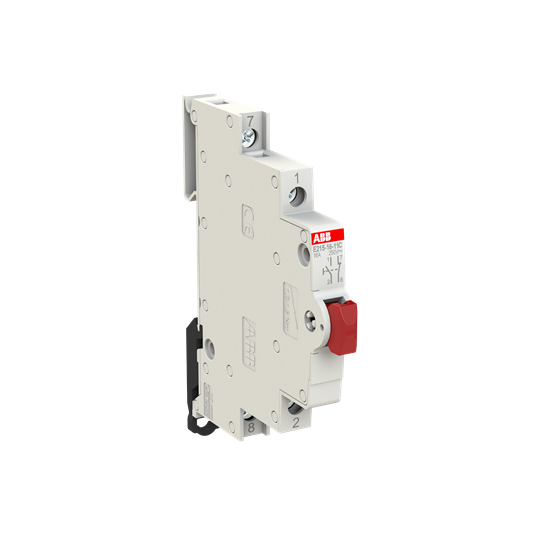

ABB PUSH BUTTON 1NO + 1NC 16A/250V AC RED E215-16-11C
