Industrial Power Supplies

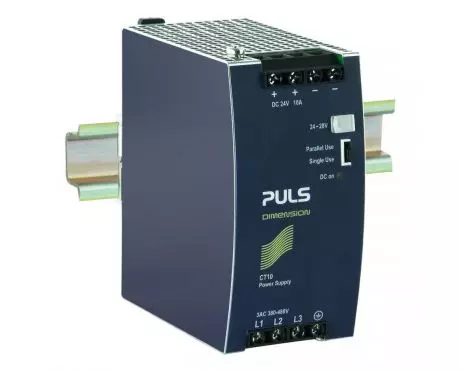

PULS DC POWER SUPPLY INPUT 3X3 80-480VAC OUTPUT 24-28VDC 10A DC POWER SUPPLY INPUT 3X380-48 CT10.241-C1

Product Code: CT10.241-C1

The 380-480V wide-range input power supply features passive power factor correction (PFC) and has an efficiency of up to 92.9%. It is conformal coated for added protection. The input inrush current is negligibly low. The power supply can continuously utilize 20% power reserves at temperatures up to +45°C. It provides full output power within a temperature range of -25°C to +60°C. Additionally, it can be adjusted to parallel mode for load sharing.

Technical Specifications

Efficiency 92.8%
Harmonic Correction Active
Input Current (A) 4
Mounting Method DIN rail
Output Current Range (A) 8.6 - 10
Output Power (W) 240
Power Factor 0.53
Power Reserves 20%
Brand PULS
Connection Type Screw terminals
Dimensions (mm) 62W x 124H x 117D
Input Voltage AC (V) 380 - 480
Operational Temperature Range (°C) -25 to 70
Output Voltage DC (V) 24 - 28
Power Loss (W) 18.6
Suitable For 3 phase system
Weight (g) 750
