Product Code: QT40.241-B2

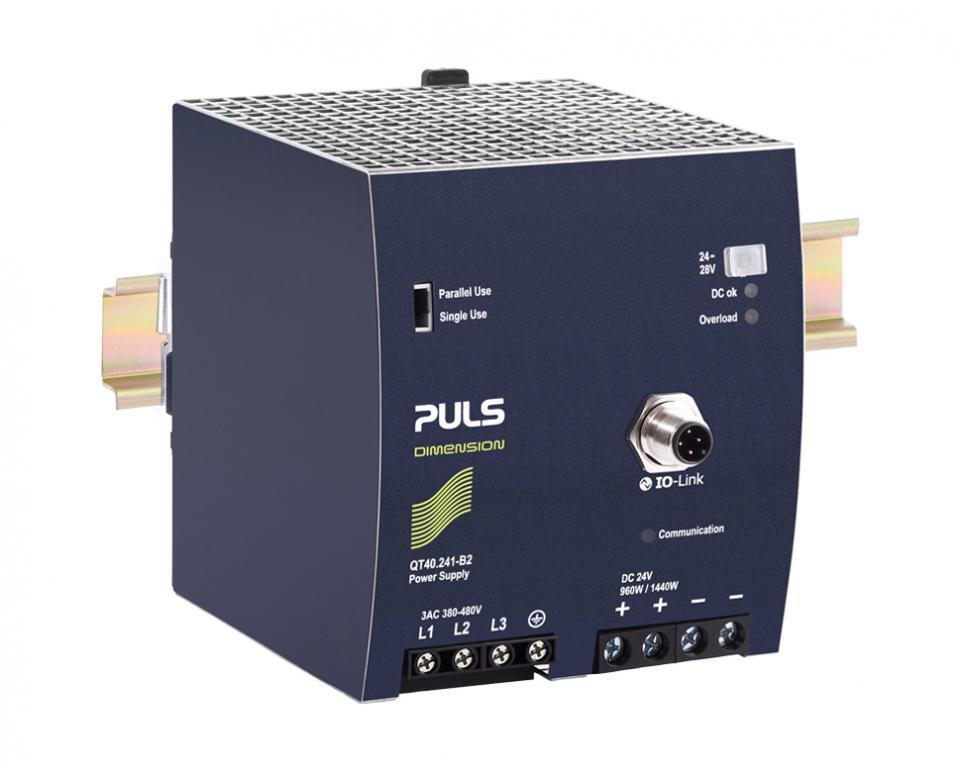

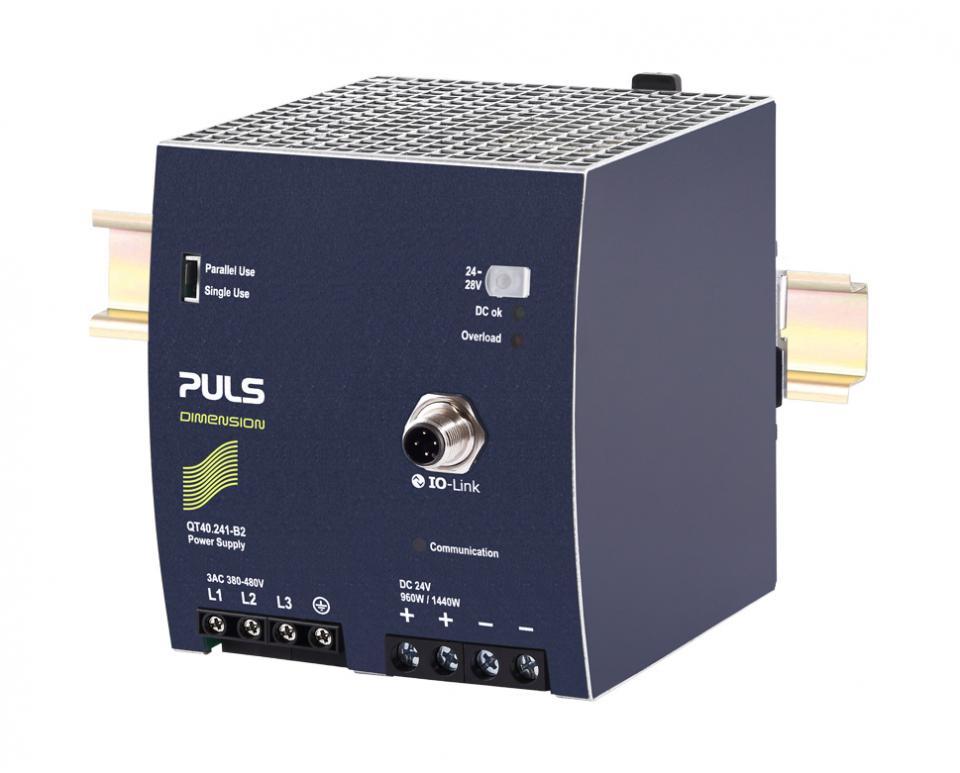

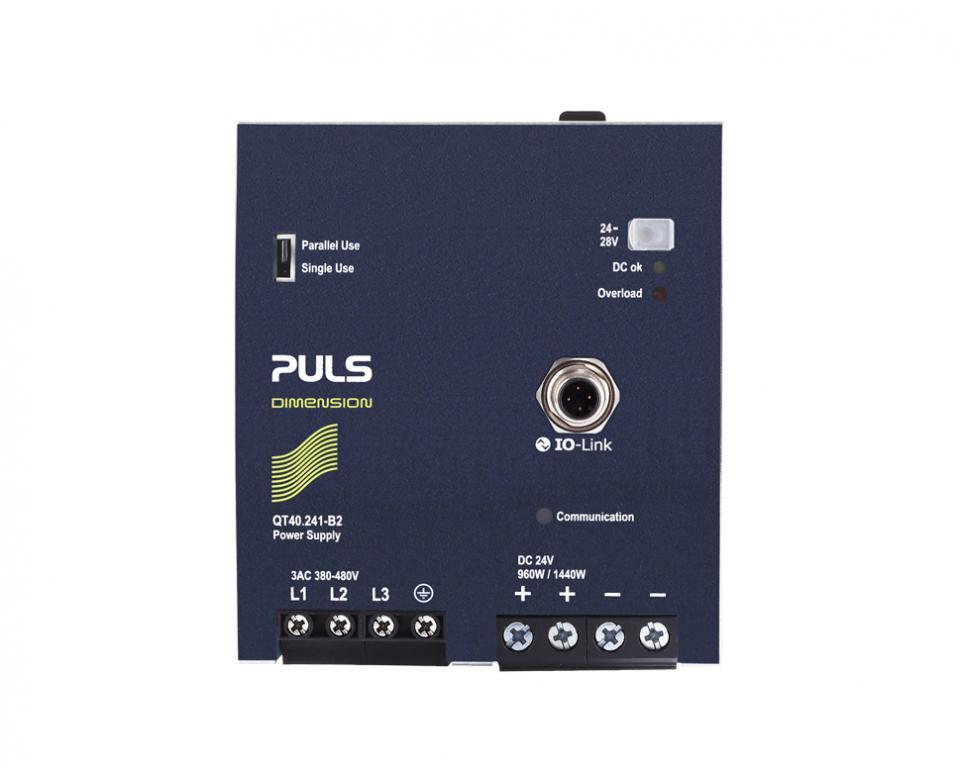

The product is a 3-phase AC power supply with a wide-range input of 380-480V. It features an IO-LinkV1.1 communication interface (IEC 61131-3) and a 4-pole M12 connector. The width of the power supply is only 110mm. It has a high efficiency of 95.3% at full load and excellent partial load efficiencies. Additionally, it offers a bonus power of 50% with a maximum output of 1440 W for up to 5 seconds. For easy fuse tripping, the power supply has a peak current of 110 A for 25 ms. It also includes active power factor correction (PFC) and negligibly low input inrush current. The power supply can operate at full power within a temperature range of -25°C to +60°C. It supports transmission speed COM3 and comes with an integrated 8 kbit EEPROM for automated parameterization. Furthermore, remote control of the outputVoltage and remote shut-downVia IO-Link are possible if required.

AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	Czech Republic
DC-OK Signal	Yes
Derating	20 W/°C
Derating Temperature (°C)	+55 to +70
E Classification	E-CS01
Efficiency	95.30%
External Input Fuse Recommendation	B-6 A / C-6 A
Harmonic Correction	Active
Input Inrush Current (A)	4.5 / 4.5
Input Inrush Current Limitation	Active
Input Voltage Range AC (V)	380-480
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	100
Output Current Range (A)	40 - 34.3
Output Power (W)	960
Output Voltage (V)	24-28
Power Reserve Type	BonusPower
Power Reserves	50%
Special Application	Semiconductor
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	110W x 124H x 127D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	47.3
Range	DIMENSION
Rated Current (A)	40
Series	Q series
Standards and Approvals	EU Declaration of Conformity, SEMI F47, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	1500
