Product Code: QT40.242

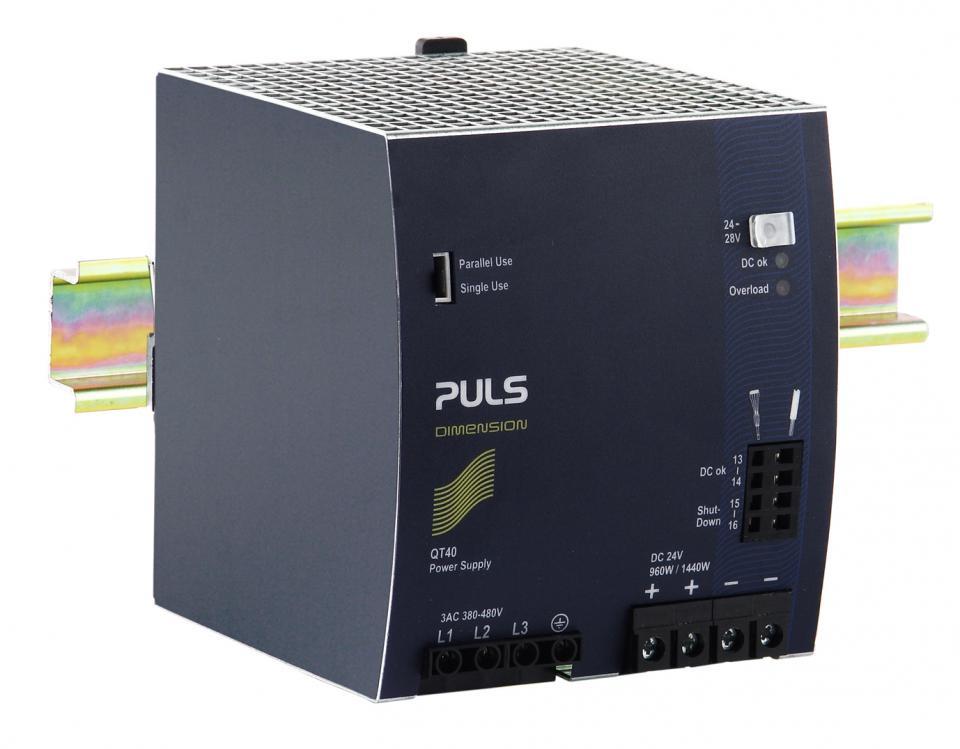

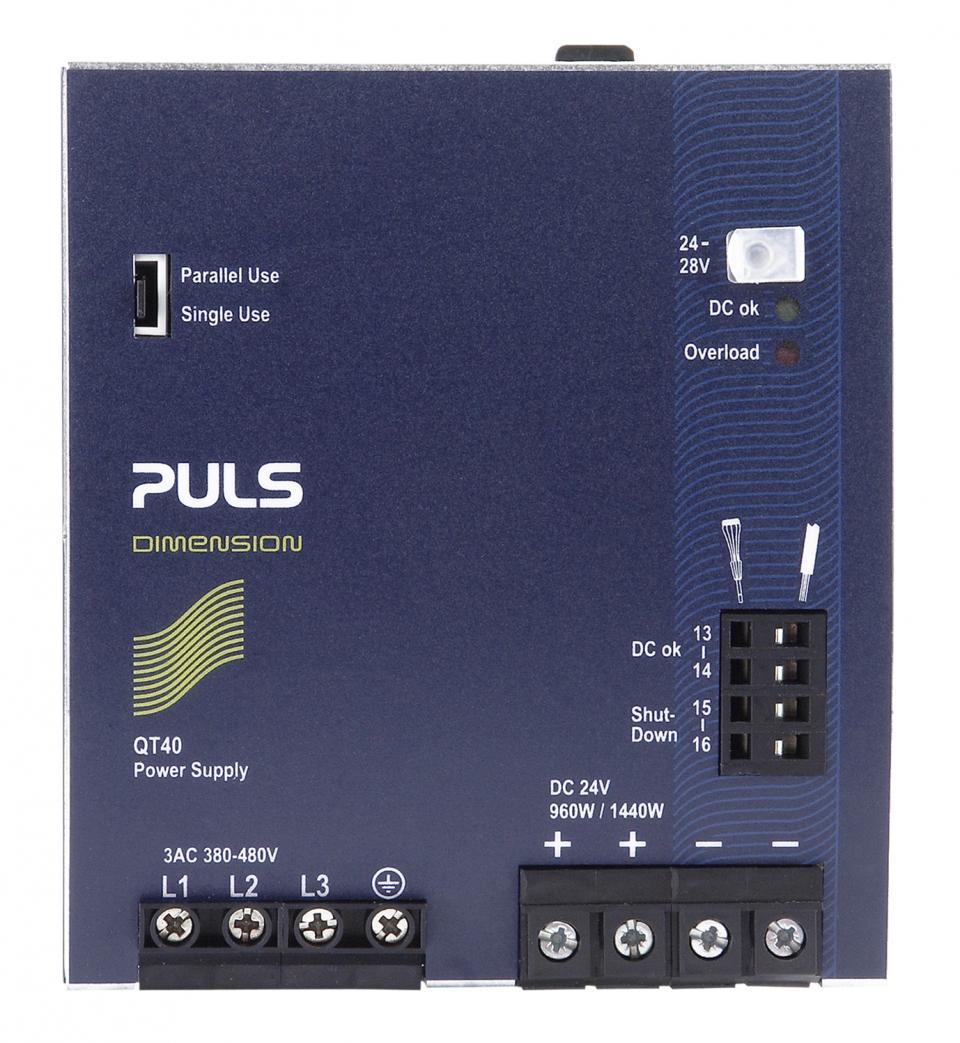

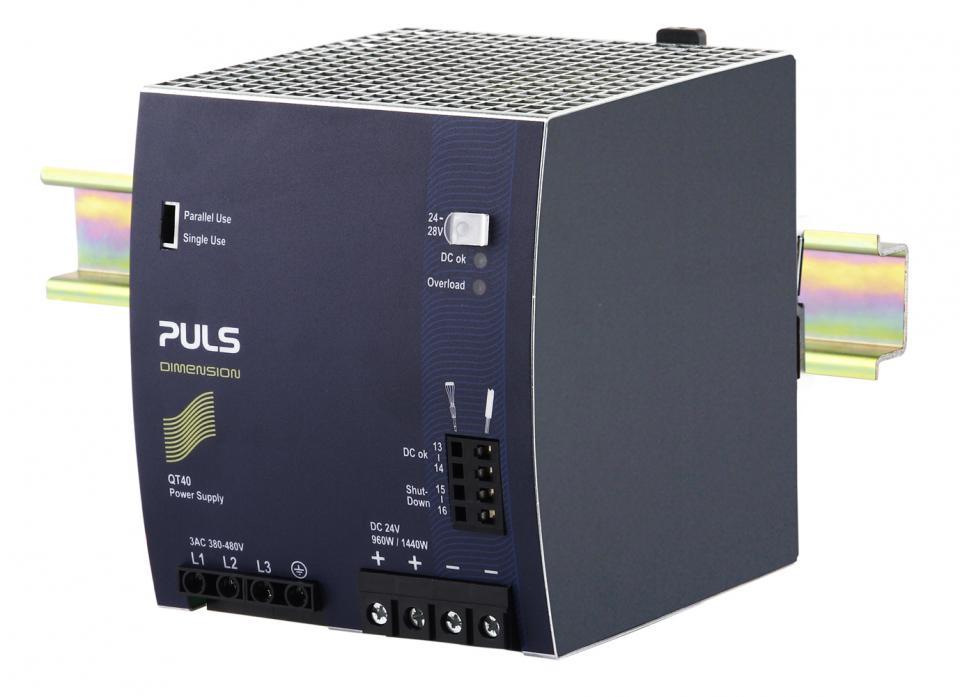

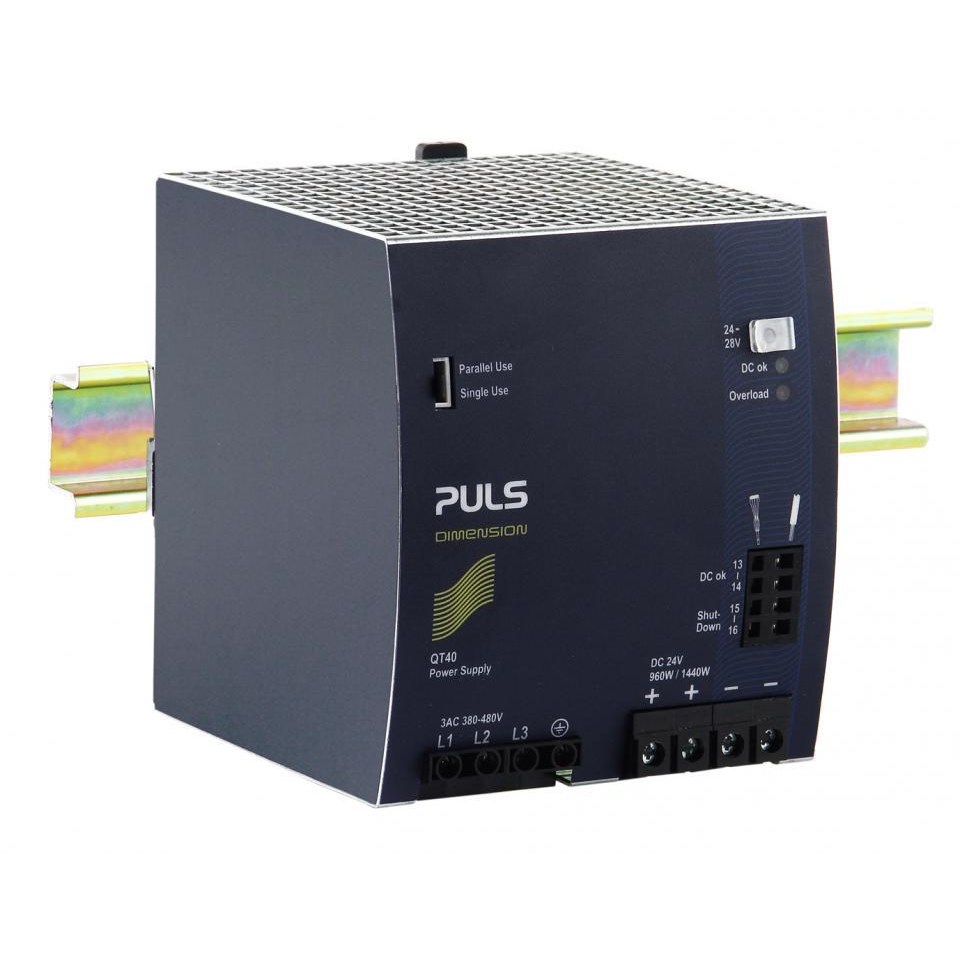

The 3 AC power supply has a wide-range input of 380-480V. It includes three input fuses for added protection. With a compact design, it has a width of only 110mm and weighs just 1.5 kg. The power supply boasts high efficiency, with a full load efficiency of 95.3% and excellent partial load efficiencies. It also offers BonusPower, providing up to 1440 W for up to 4 seconds. For easy fuse tripping, it has a peak current of 100 A for 10 ms. The power supply features active power factor correction (PFC) and active filtering of input transients. It has negligibly low input inrush current and can operate at full power between -25°C and +60°C. Additionally, it offers a current sharing feature for parallel use. For troubleshooting purposes, the power supply includes internal data logging. It also allows for remote control of the outputVoltage and has a DC-OK relay contact. Lastly, it has a shut-down input for added convenience and safety.

AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	China / Czech Republic
DC-OK Signal	Yes
Derating	24 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	95.30%
External Input Fuse Recommendation	B-6 A / C-6 A
Harmonic Correction	Active
Input Inrush Current (A)	4.5
Input Inrush Current Limitation	Active
Input Voltage Range AC (V)	380-480
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	100
Output Current Range (A)	40 - 34.3
Output Power (W)	960
Output Voltage (V)	24-28
Power Reserve Type	BonusPower
Power Reserves	50%
Special Application	Semiconductor
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	110W x 124H x 127D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	47.3
Range	DIMENSION
Rated Current (A)	40
Series	Q series
Standards and Approvals	EU Declaration of Conformity, IEC 60950 CB Scheme, Korea Certification, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	1500
