Product Code: QS40.244

AC 200-240V input, 125mm width, and 1.8kg weight. It has a 94.6% full load efficiency and excellent partial load efficiencies. The product also offers a 50% BonusPower of 1440W for up to 4 seconds. With a high peak current of 110A for 10ms, it ensures easy fuse tripping. The Safe HiccupPLUS overload mode provides added safety. It features active power factor correction (PFC) and negligibly low input inrush current. The product operates at full power between -25°C and +60°C. It also includes a current sharing feature for parallel use and internal data logging for troubleshooting purposes. Additionally, it has a DC-OK relay contact and shut-down input functionality.

Conformal Coating	No
Country of Origin	China / Czech Republic
DC-OK Signal	Yes
Derating	24 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	94.60%
External Input Fuse Recommendation	B-10 A / C-8 A
Harmonic Correction	Active
Input Inrush Current (A)	14
Input Inrush Current Limitation	Active
Input Voltage Range AC (V)	200-240
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	100
Output Current Range (A)	40 - 34.4
Output Power (W)	960
Output Voltage (V)	24-28
Power Reserve Type	BonusPower
Power Reserves	50%
Special Application	Marine, Semiconductor
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	125W x 124H x 127D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	54.8
Range	DIMENSION
Rated Current (A)	40
Series	Q series
Standards and Approvals	EU Declaration of Conformity, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	1800

Industrial Power Supplies

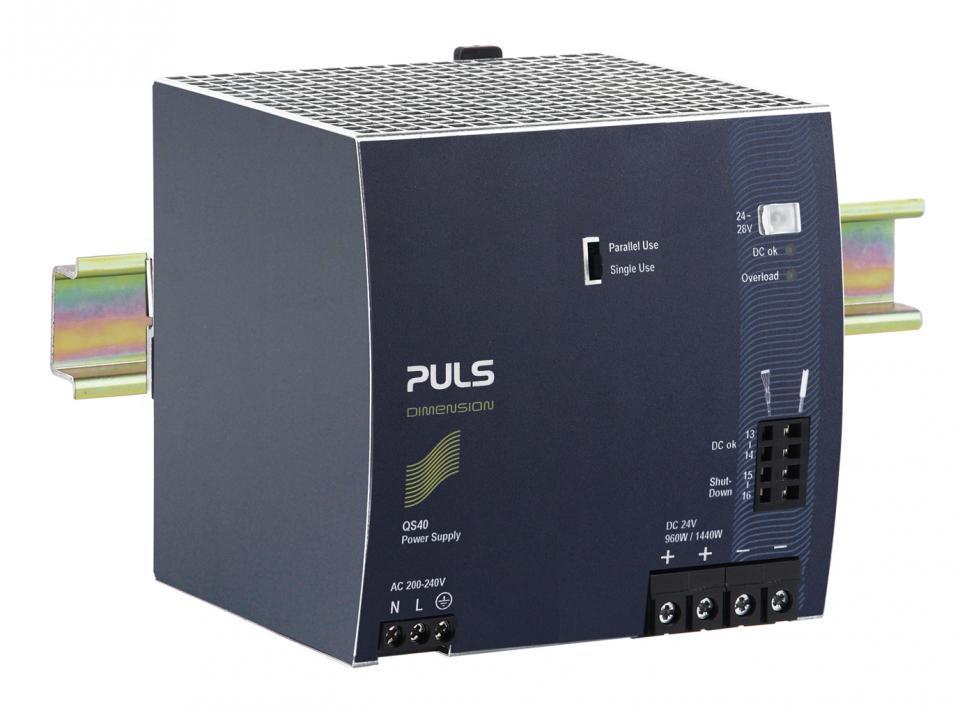

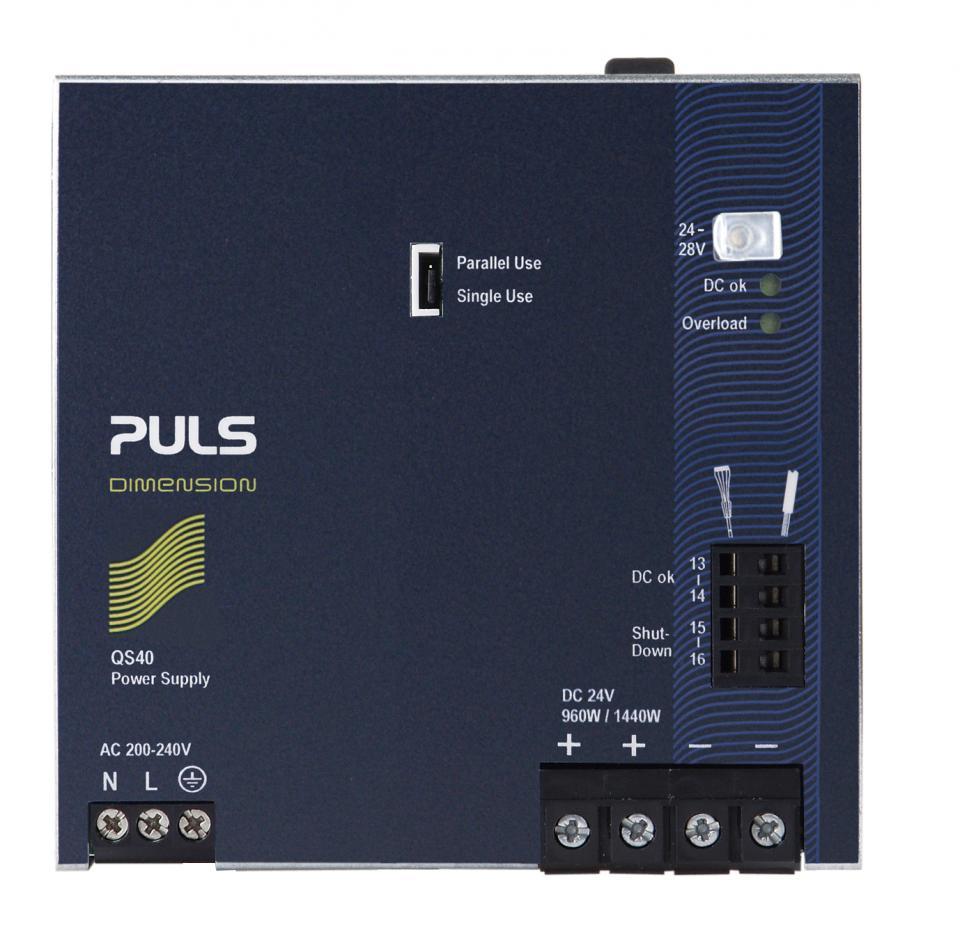

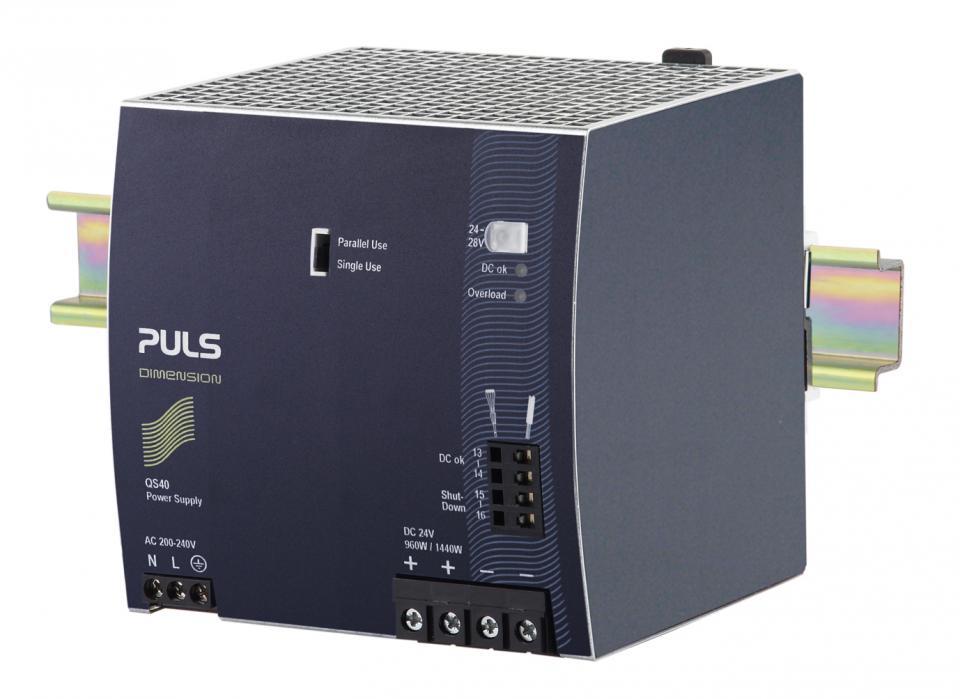

PULS DIN RAIL POWER SUPPLY 1 PHASE 24 VDC 40A 960W QS40.244

Product Code: QS40.244
