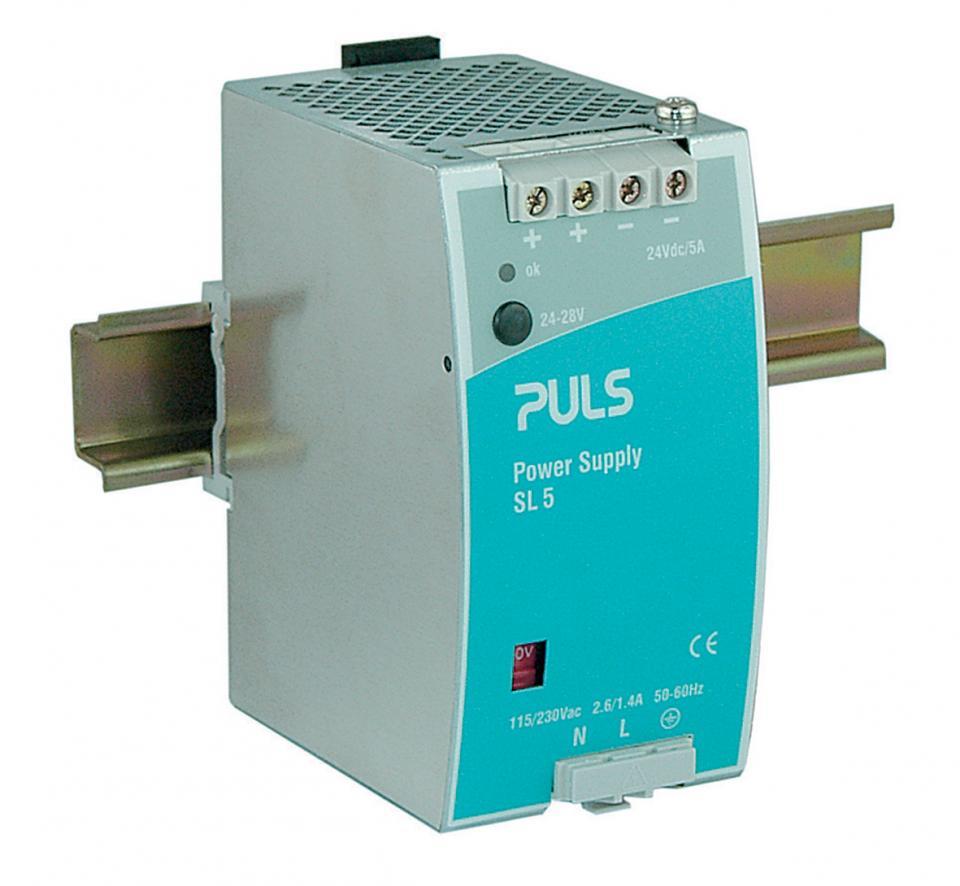

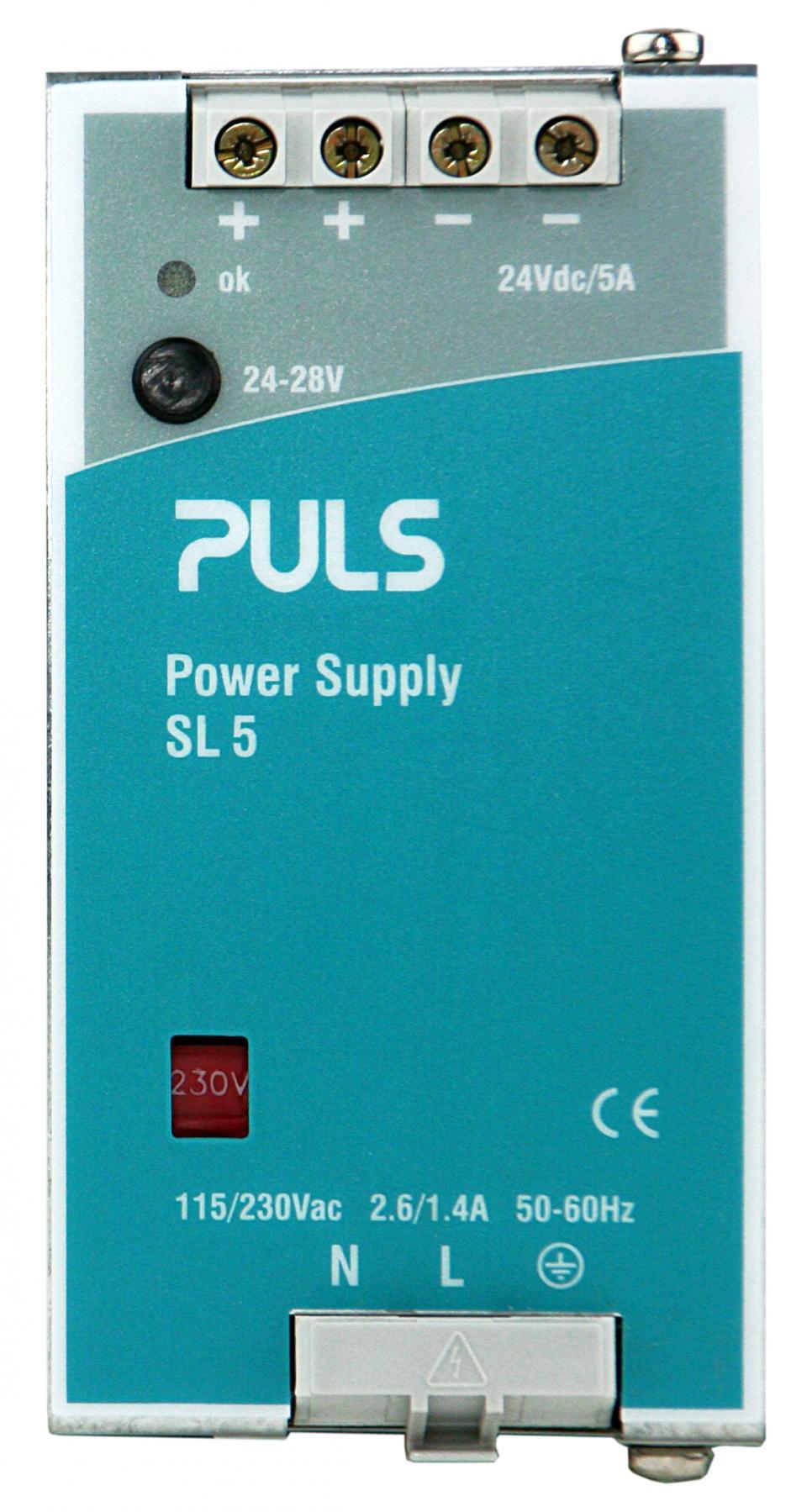

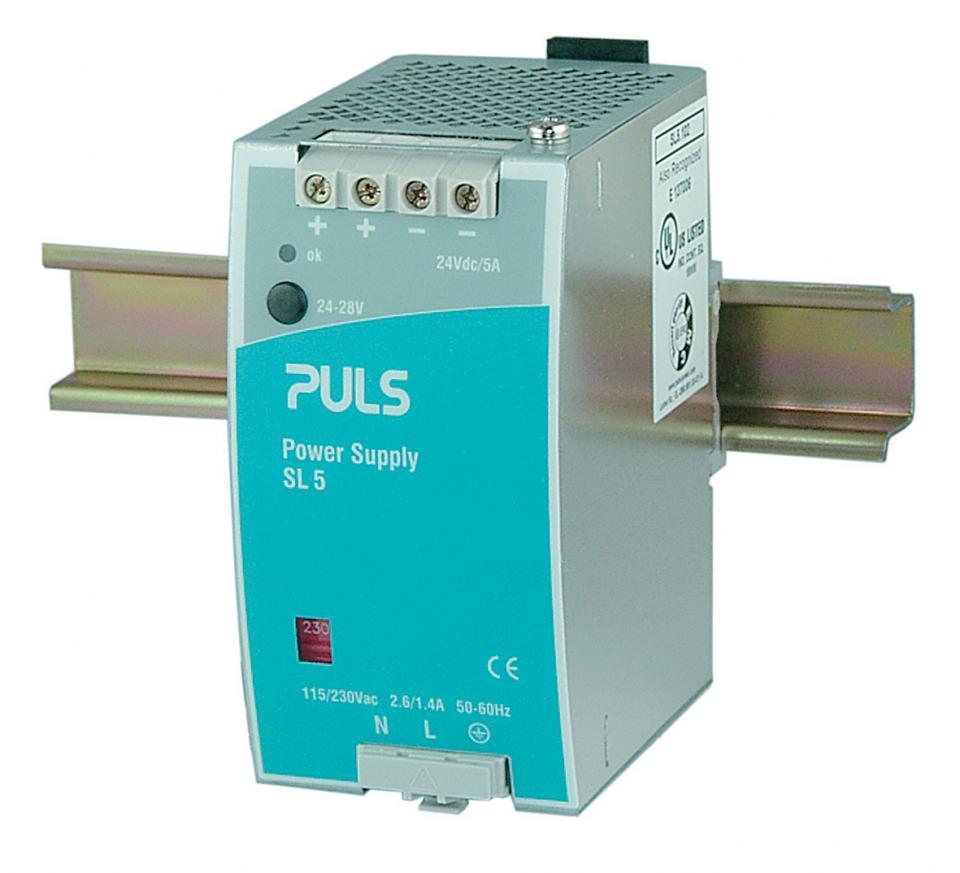

PULS DIN RAIL POWER SUPPLY 1 PHASE 24V, 5A SL5.102

Product Code: SL5.102

This product features a switchable input for both 115V and 230V power sources. It has an impressive efficiency rating of up to 88.8%. The outputVoltage is adjustable, allowing for customization based on specific needs. With 20% power reserves, it can handle loads with higher short-term power requirements. Additionally, it provides full output power within a temperature range of -10 to +60 degrees Celsius.

Technical Specifications

AC Input Type Manual-select
Conformal Coating No
Country of Origin Czech Republic
E Classification E-CS01
Efficiency %
Input Voltage Range AC (V) 100-120, 200-240
Input Voltage Range DC (V) 110-300
Integrated Decoupling Function No
Maximum Ripple and Noise Voltage (mVpp) 25
Minimum Input Voltage DC (V) 300
Output Current Range (A) 5 - 4.3
Output Power (W) 120
Output Voltage (V) 24-28
Use In Crosslinking Yes
Brand PULS
Connection Type Screw terminals
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 64W x 124H x 102D
Family SilverLine
Mounting Type DIN Rail
Range SilverLine
Rated Current (A) 5
Series SL series
Warranty Period (Months) 36
Weight (g) 620
