Product Code: QS40.361

AC 100-240V Wide-range input. Compact design with a width of only 110mm and lightweight at 1.9kg. Achieves high efficiency with 94.6% full load and excellent partial load efficiencies. Offers 50% BonusPower, providing up to 1440W for 4 seconds. Features a high peak current of 70A for easy fuse tripping within 10ms. Equipped with the Safe HiccupPLUS overload mode for added safety. Includes active power factor correction (PFC) and negligibly low input inrush current. Operates at full power between -25°C and +60°C. Supports parallel use with current sharing feature. Comes with internal data logging for troubleshooting purposes. Allows remote control of outputVoltage and features a DC-OK relay contact and shut-down input. ATEX and IECEx approved for safe usage in hazardous environments.

AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	China / Czech Republic
DC-OK Signal	Yes
Derating	24 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	94.60%
External Input Fuse Recommendation	B-16 A / C-10 A
Harmonic Correction	Active
Input Inrush Current (A)	17 / 11
Input Inrush Current Limitation	Active
Input Voltage Range AC (V)	100-240
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	130
Output Current Range (A)	26.7 - 22.9
Output Power (W)	960
Output Voltage (V)	36-42
Power Reserve Type	BonusPower
Power Reserves	50%
Special Application	Hazardous location, Marine
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	125W x 124H x 127D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	54.8
Range	DIMENSION
Rated Current (A)	26.7
Series	Q series
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	1900

Industrial Power Supplies

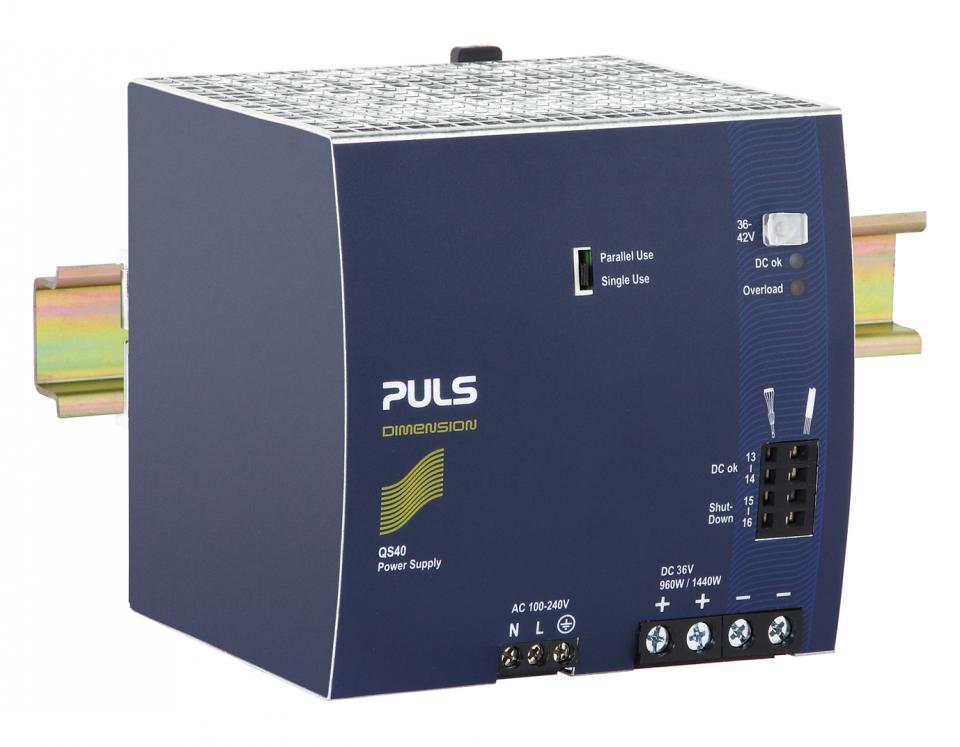

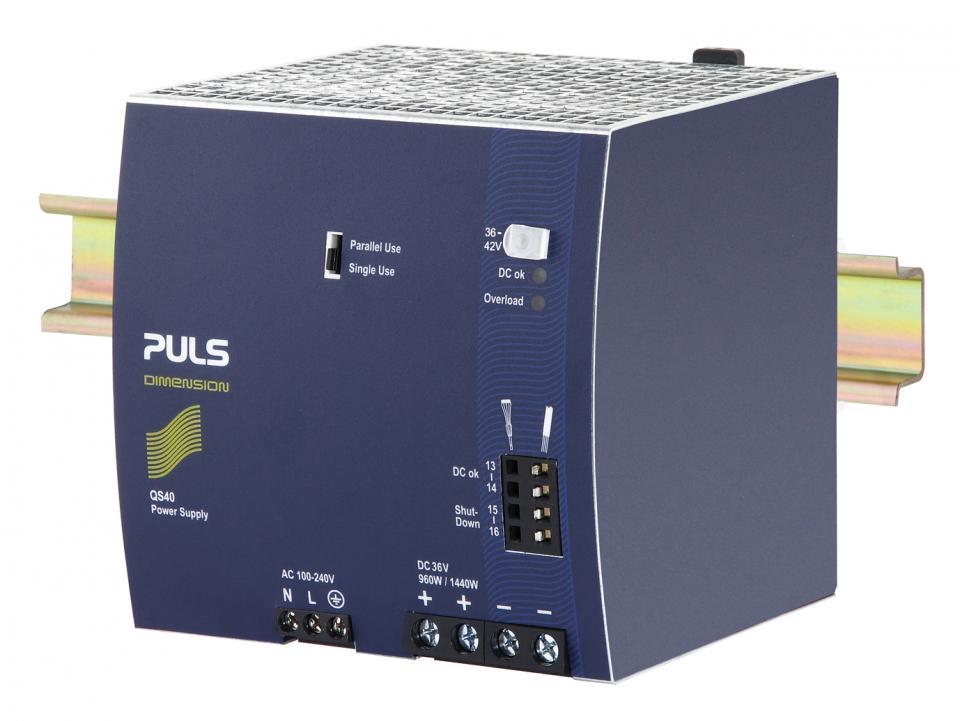

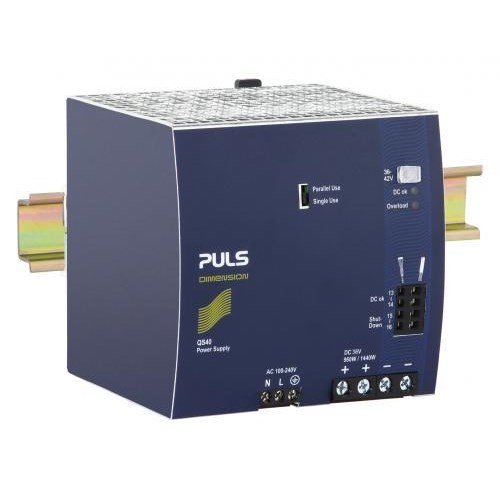

PULS DIN RAIL POWER SUPPLY 1 PHASE 36VDC 26.7A 960W QS40.361
