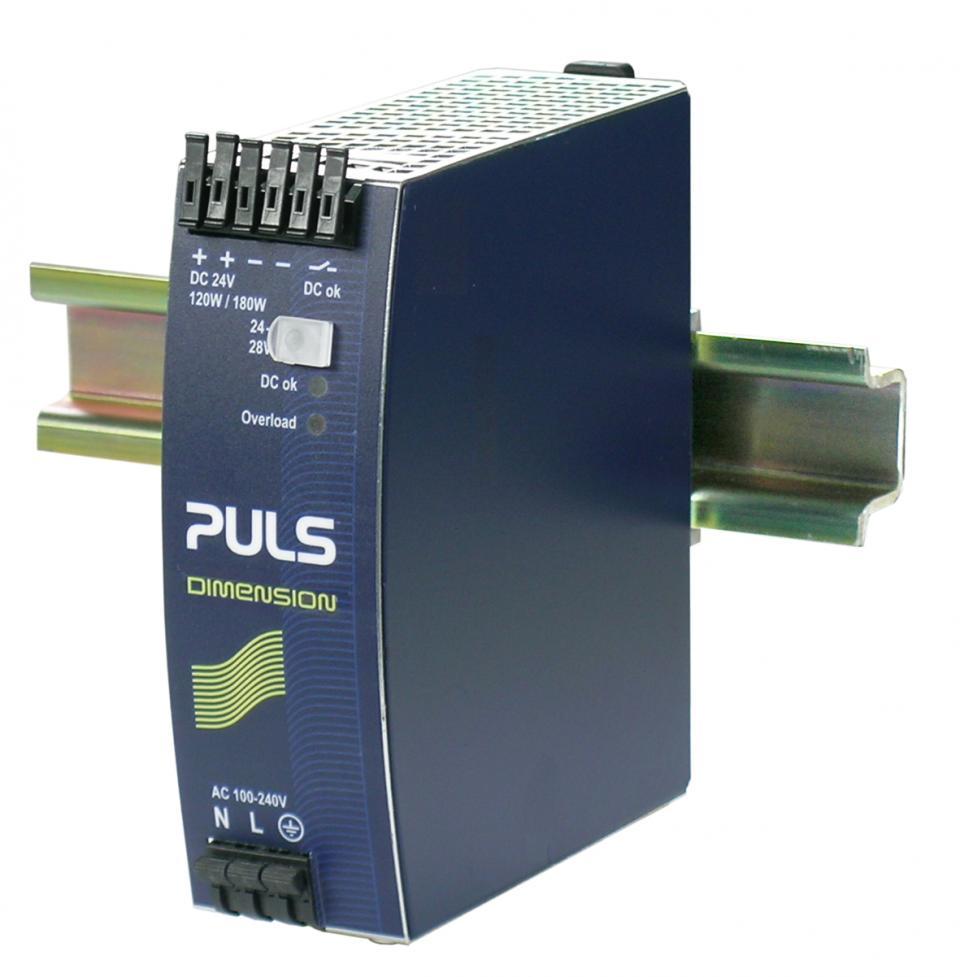

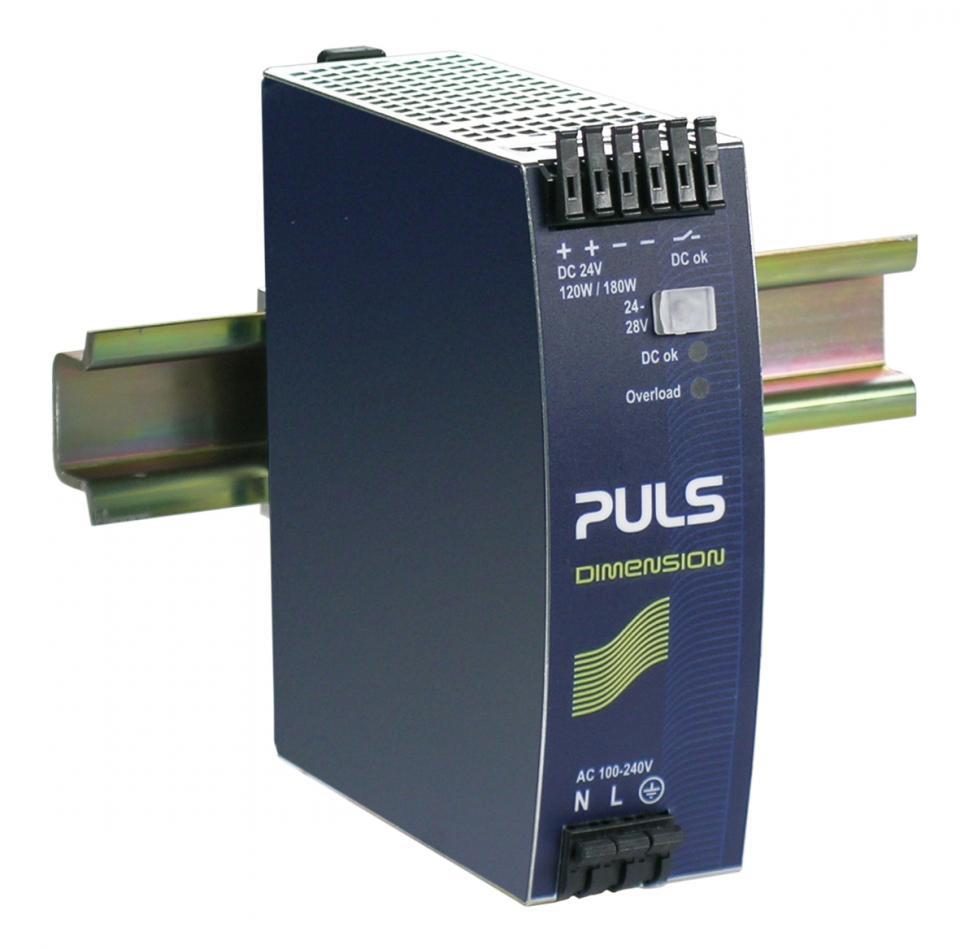

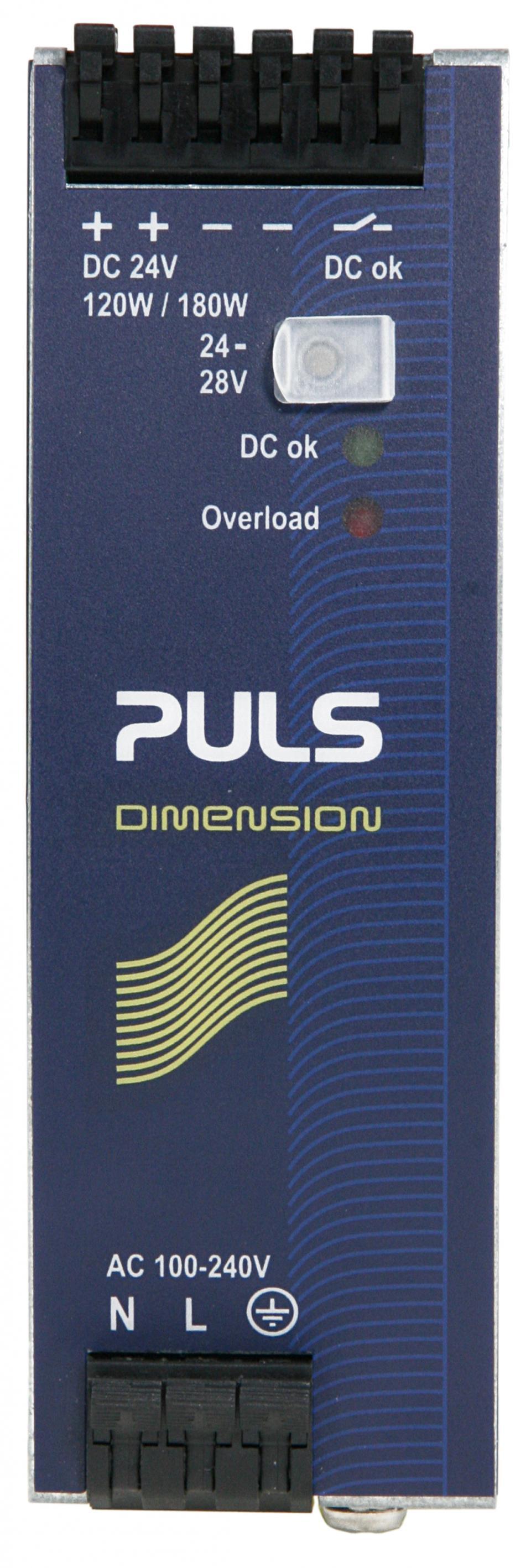

PULS DIN RAIL POWER SUPPLY 1 PHASE 24V DC QS5.241-A1

Product Code: QS5.241-A1

The product is a power supply with a wide-range input of 100-240V and active power factor correction (PFC). It has an efficiency rating of up to 92.7% and is ATEX approved. The input inrush current is negligibly low. It has 50% power reserves available for up to 4 seconds. The power supply can provide full output power in temperatures ranging from -25°C to +60°C. It features spring-clamp terminals and a DC-OK contact.

Technical Specifications

AC Input Type Wide-range
Conformal Coating Yes
Country of Origin Czech Republic
DC-OK Signal Yes
Derating 3 W/°C
Derating Temperature (°C) > +60
E Classification E-CS01
Efficiency 92.70%
External Input Fuse Recommendation B-6 A / C-3 A
Harmonic Correction Active
Input Inrush Current (A) 9 / 11
Input Inrush Current Limitation Active
Input Voltage Range AC (V) 100-240
Input Voltage Range DC (V) 110-300
Integrated Decoupling Function No
Maximum Input Voltage DC (V) 300
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 100
Output Current Range (A) 5 - 4.5
Output Power (W) 120
Output Voltage (V) 24-28
Power Reserve Type BonusPower
Power Reserves 50%
Special Application Hazardous location, Marine, Semiconductor
Use In Crosslinking Yes
Brand PULS
Connection Type Spring clamps
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 40W x 124H x 117D
Family DIMENSION
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Power Loss (W) 9.4
Range DIMENSION
Rated Current (A) 5
Series Q series
Standards and Approvals ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Marine ABS, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 620
