Product Code: QS40.241

AC 100-240V wide-range input. Width: 110mm, Weight: 1.9kg. 94.6% full load and excellent partial load efficiencies. 50% BonusPower, providing 1440W for up to 4 seconds. High peak current of 110A for 10ms, making fuse tripping easy. Safe HiccupPLUS overload mode. Active power factor correction (PFC). Negligibly low input inrush current. Full power available between -25°C and +60°C. Current sharing feature for parallel use. Internal data logging included for troubleshooting purposes. Remote control of outputVoltage available. DC-OK relay contact provided. Shut-down input option available. ATEX and IECEx approved for safety compliance.

AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	China / Czech Republic
DC-OK Signal	Yes
Derating	24 W/°C
Derating Temperature (°C)	+60 to +70
E Classification	E-CS01
Efficiency	94.60%
External Input Fuse Recommendation	B-16 A / C-16 A
Harmonic Correction	Active
Hold Up Time (ms)	27
Input Inrush Current (A)	17 / 11
Input Inrush Current Limitation	Active
Input Voltage Range AC (V)	100-240
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	100
Output Current Range (A)	40 - 34.3
Output Power (W)	960
Output Voltage (V)	24-28
Power Reserve Type	BonusPower
Power Reserves	50%
Special Application	Hazardous location, Marine
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	125W x 124H x 127D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	54.8
Range	DIMENSION
Rated Current (A)	40
Series	Q series
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	1900

Industrial Power Supplies

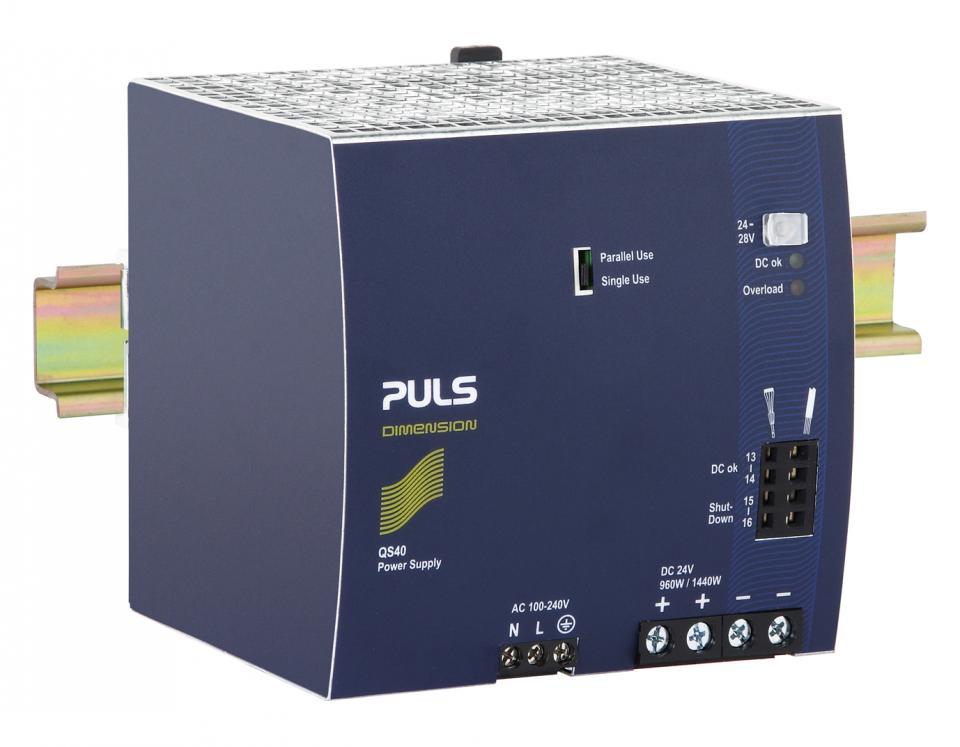

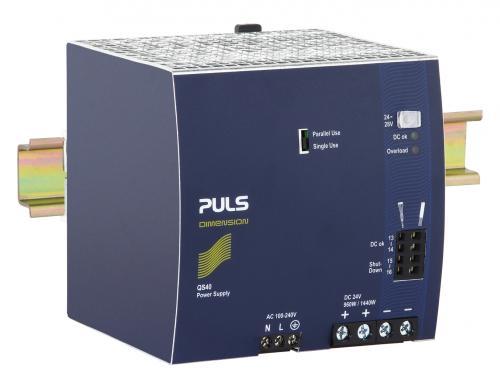

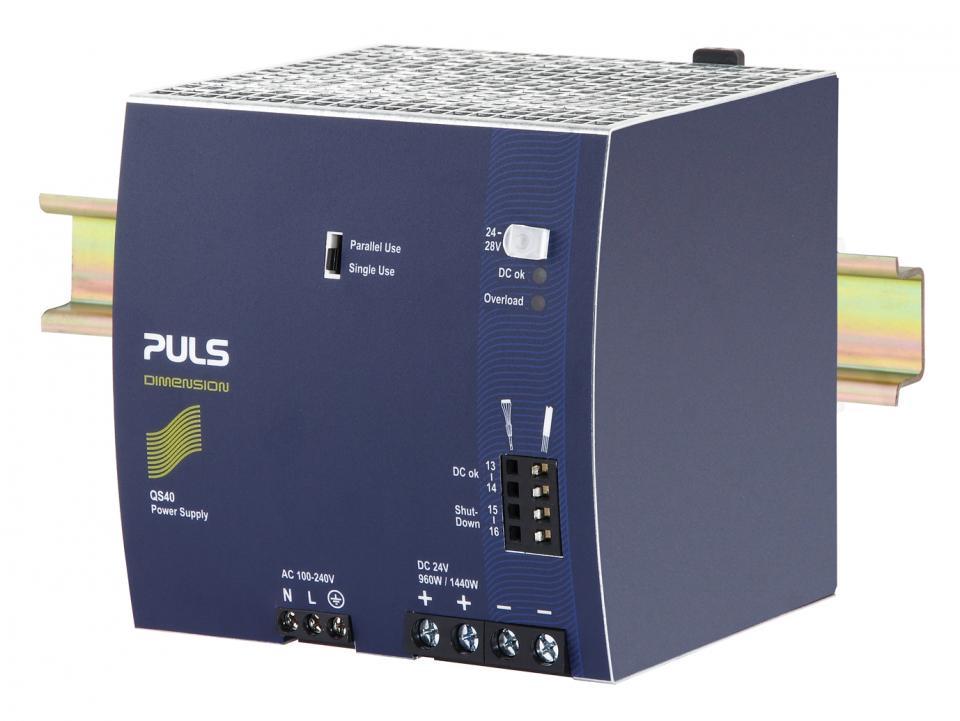

PULS DIN RAIL POWER SUPPLY 1 PHASE 24VDC 40A 960W QS40.241

Product Code: QS40.241
