AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	China / Czech Republic
Derating	2 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	90.00%
External Input Fuse Recommendation	B-6 A / C-6 A
Input Inrush Current (A)	5 / 10
Input Inrush Current Limitation	Active
Input Voltage Range AC (V)	100-240
Input Voltage Range DC (V)	110-300
Integrated Decoupling Function	No
Maximum Input Voltage DC (V)	300
Maximum Ripple and Noise Voltage (mVpp)	50
Minimum Input Voltage DC (V)	110
Output Current Range (A)	3.4 - 3
Output Power (W)	80
Output Voltage (V)	24-28
Power Reserve Type	BonusPower
Power Reserves	50%
Special Application	Hazardous location, Marine, Semiconductor
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Spring clamps
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	32W x 124H x 102D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	9.1
Range	DIMENSION
Rated Current (A)	3.4
Series	Q series
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Marine ABS, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	440

Industrial Power Supplies

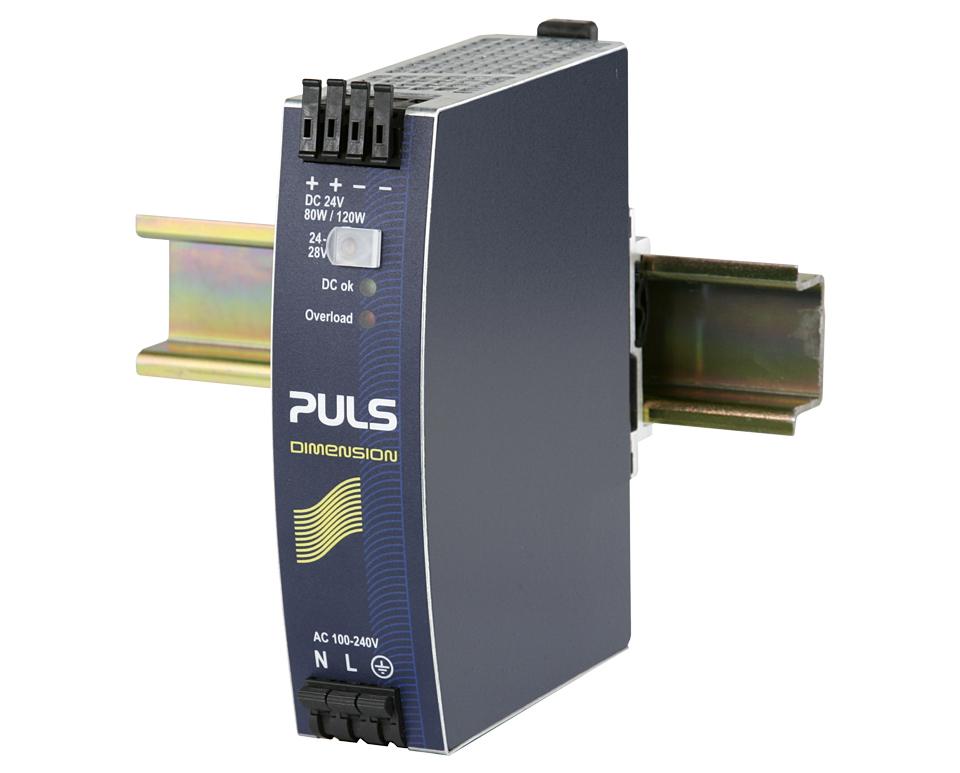

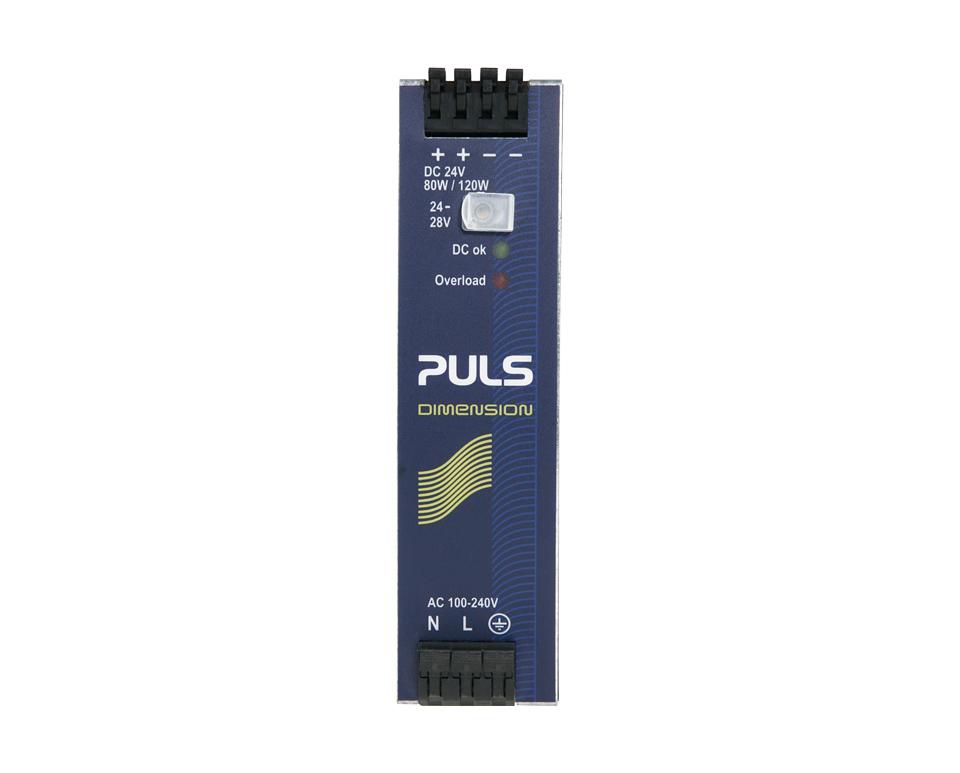

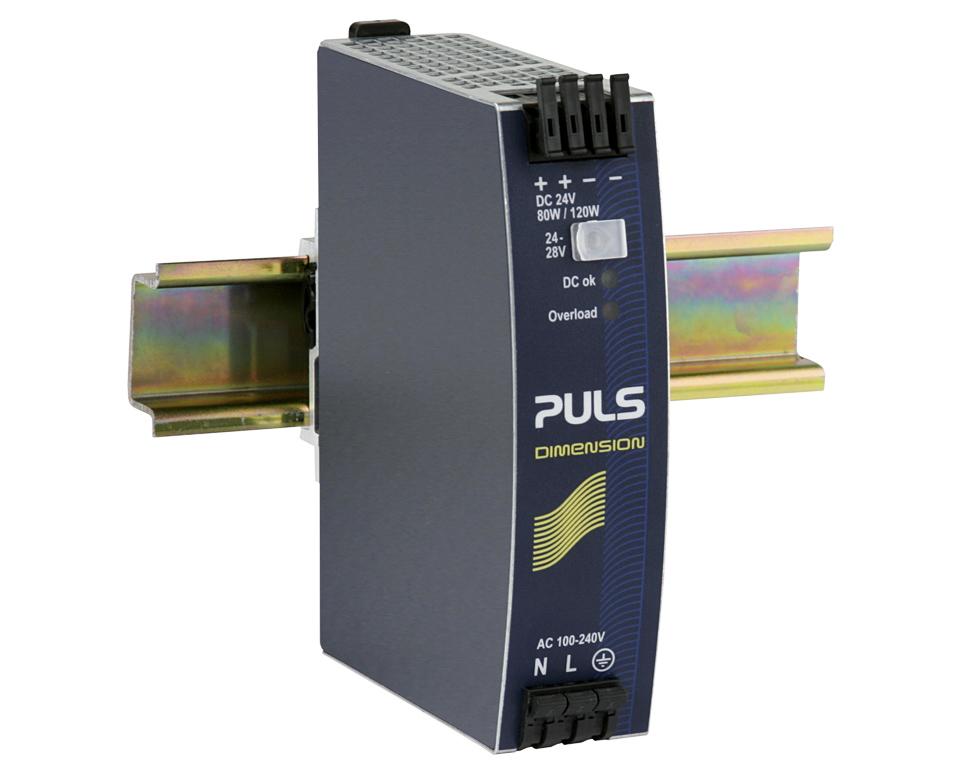

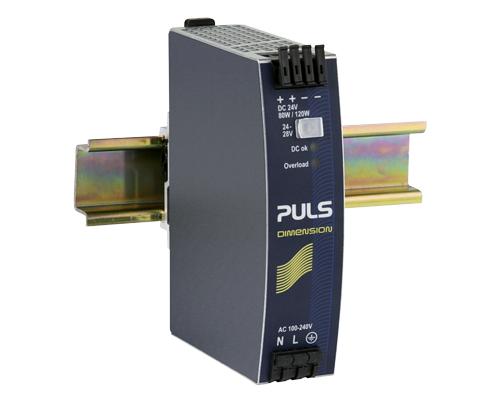

PULS DIN RAIL POWER SUPPLY 1 PHASE 24VDC 3.4A 80W QS3.241
