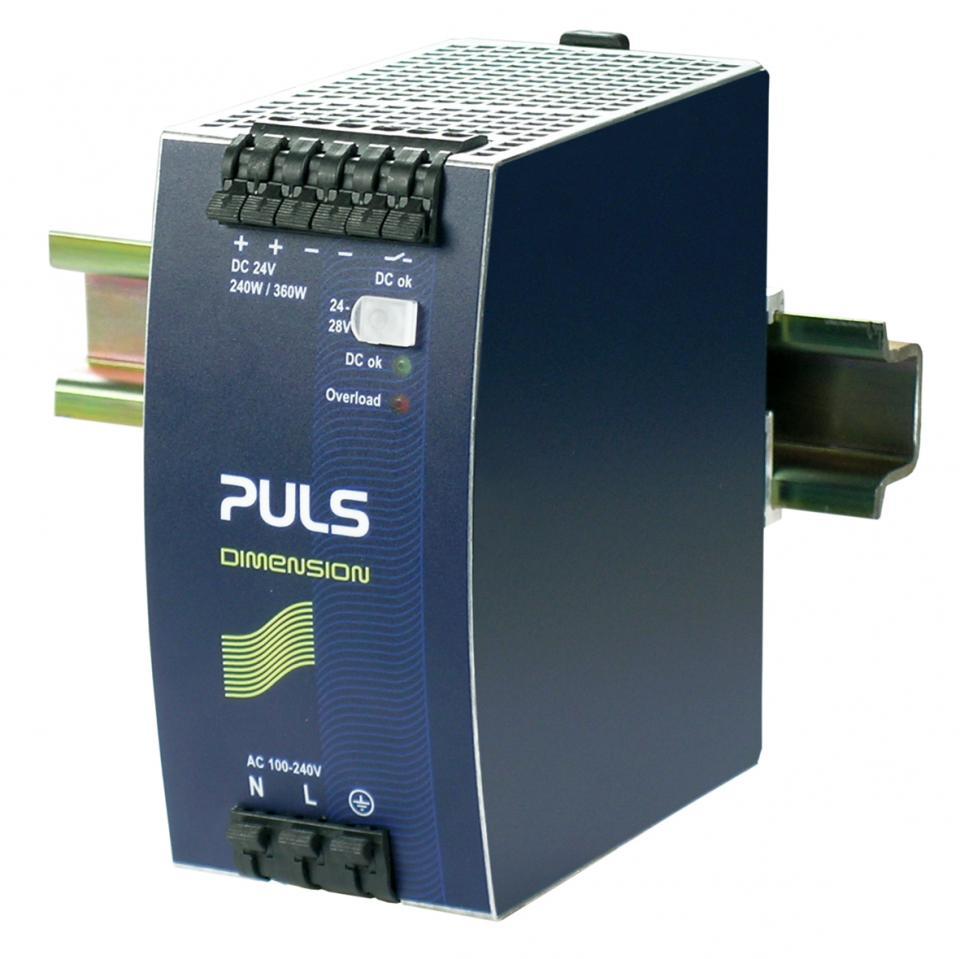

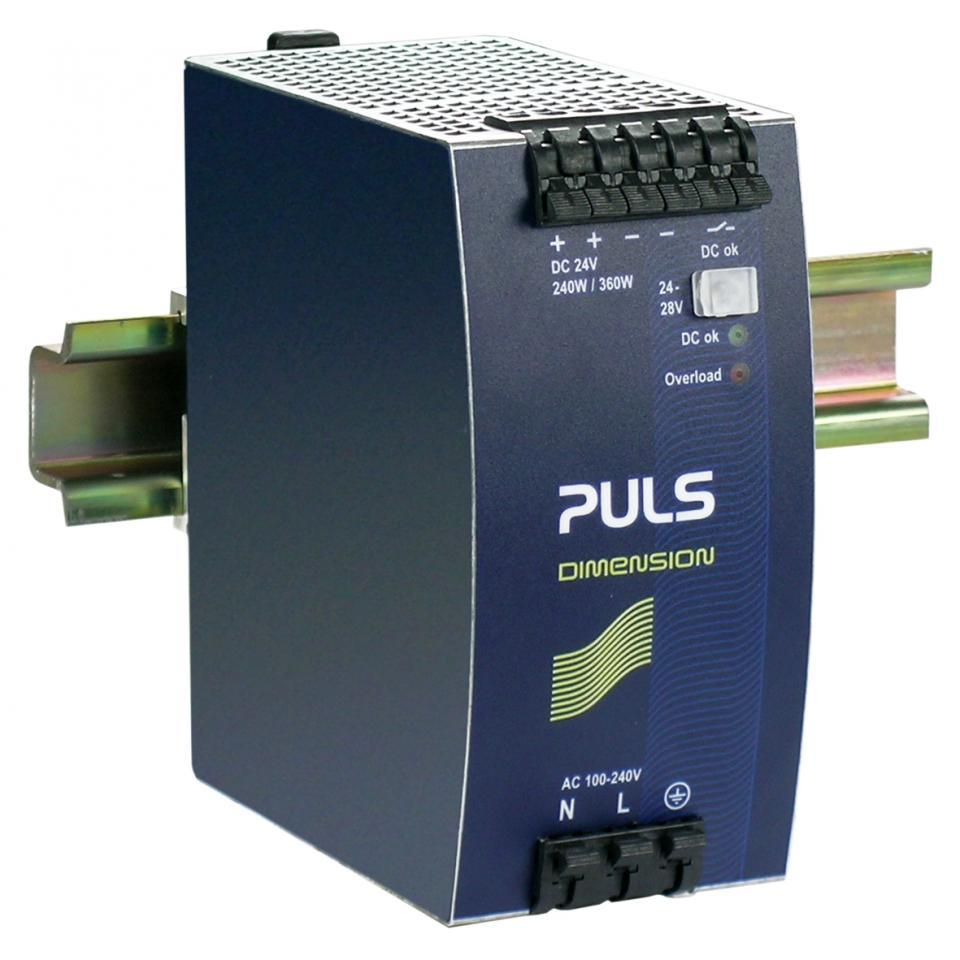

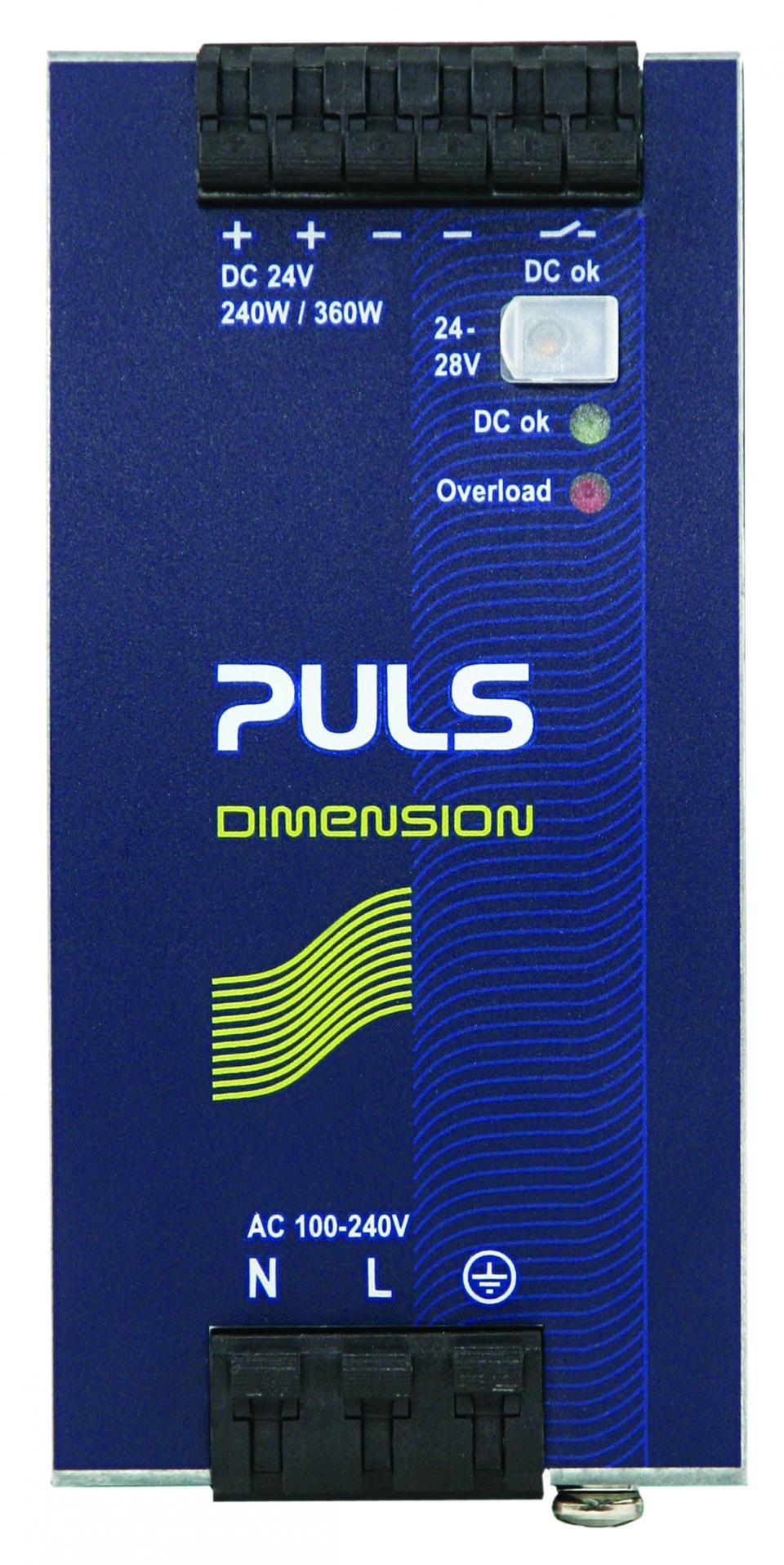

PULS DIN RAIL POWER SUPPLY 1 PHASE 24VDC 10A 240W QS10.241

Product Code: QS10.241

The product is a power supply with a wide-range input of 100-240V and active power factor correction (PFC). It has an efficiency rating of up to 93.5% and is approved according to the SEMI-F47-200 standard. The power supply has negligibly low input inrush current and offers 50% power reserves for up to 4 seconds. It can provide full output power within a temperature range of -25 to +60 degrees Celsius. The power supply features spring-clamp terminals and a DC-OK contact.

Technical Specifications

AC Input Type Wide-range
Conformal Coating No
Country of Origin China / Czech Republic
DC-OK Signal Yes
Derating 6 W/°C
Derating Temperature (°C) > +60
E Classification E-CS01
Efficiency 93.50%
External Input Fuse Recommendation B-6 A / C-4 A
Harmonic Correction Active
Input Inrush Current (A) 4 / 7
Input Inrush Current Limitation Active
Input Voltage Range AC (V) 100-240
Input Voltage Range DC (V) 110-150
Integrated Decoupling Function No
Maximum Input Voltage DC (V) 150
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 110
Output Current Range (A) 10 - 9
Output Power (W) 240
Output Voltage (V) 24-28
Power Reserve Type BonusPower
Power Reserves 50%
Special Application Hazardous location, Marine, Semiconductor
Use In Crosslinking Yes
Brand PULS
Connection Type Spring clamps
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 60W x 124H x 117D
Family DIMENSION
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Power Loss (W) 16.7
Range DIMENSION
Rated Current (A) 10
Series Q series
Standards and Approvals Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, IEC 61010-2-201 CB Scheme, Korea Certification, Marine ABS, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 900
