Product Code: QS10.121

The product features a wide-range input of 100-240V with active power factor correction (PFC). It has an impressive efficiency rating of up to 91.8%. The input inrush current is negligibly low, ensuring smooth operation. With 50% power reserves available for up to 4 seconds, it offers reliable performance. The product can deliver full output power in temperatures ranging from -25°C to +60°C. It is equipped with spring-clamp terminals and a DC-OK contact for easy connectivity.

AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	China / Czech Republic
DC-OK Signal	Yes
Derating	5 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	91.80%
External Input Fuse Recommendation	B-6 A / C-4 A
Harmonic Correction	Active
Input Inrush Current (A)	4 / 7
Input Inrush Current Limitation	Active
Input Voltage Range AC (V)	100-240
Input Voltage Range DC (V)	110-150
Integrated Decoupling Function	No
Maximum Input Voltage DC (V)	150
Maximum Ripple and Noise Voltage (mVpp)	50
Minimum Input Voltage DC (V)	110
Output Current Range (A)	15 - 13.5
Output Power (W)	180
Output Voltage (V)	12-15
Power Reserve Type	BonusPower
Power Reserves	50%
Special Application	Hazardous location, Marine, Semiconductor
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Spring clamps
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	60W x 124H x 117D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	16.1
Range	DIMENSION
Rated Current (A)	15
Series	Q series
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, IEC 61010-2-201 CB Scheme, Marine ABS, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	930

Industrial Power Supplies

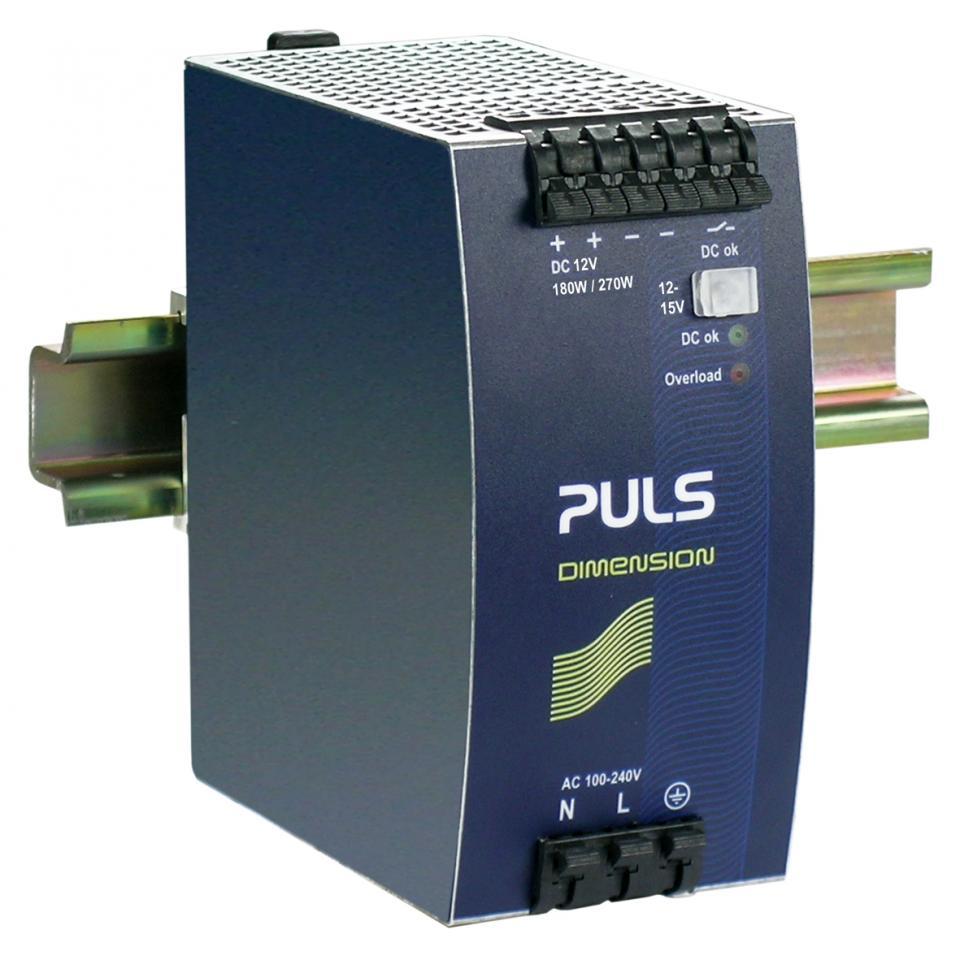

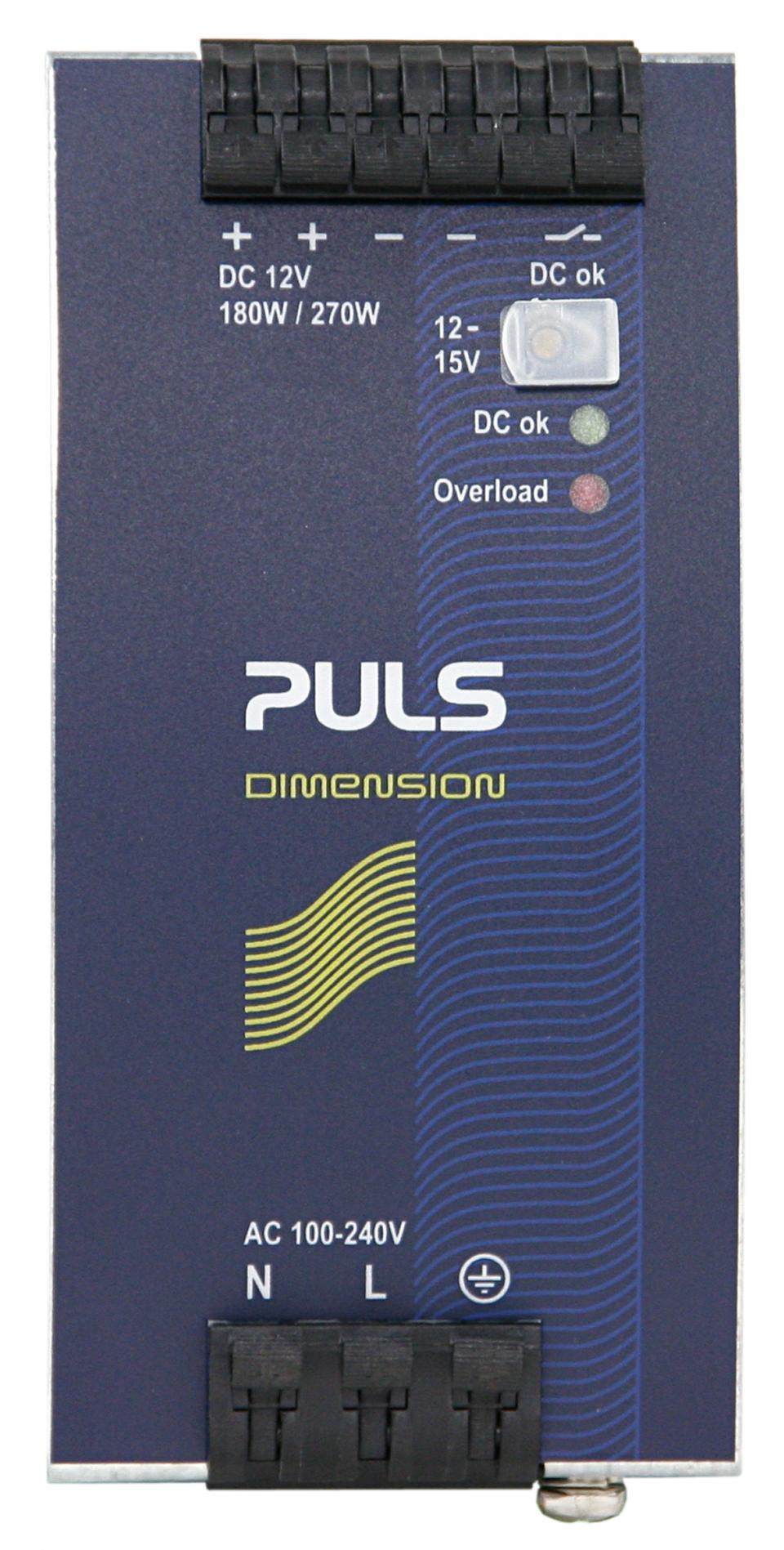

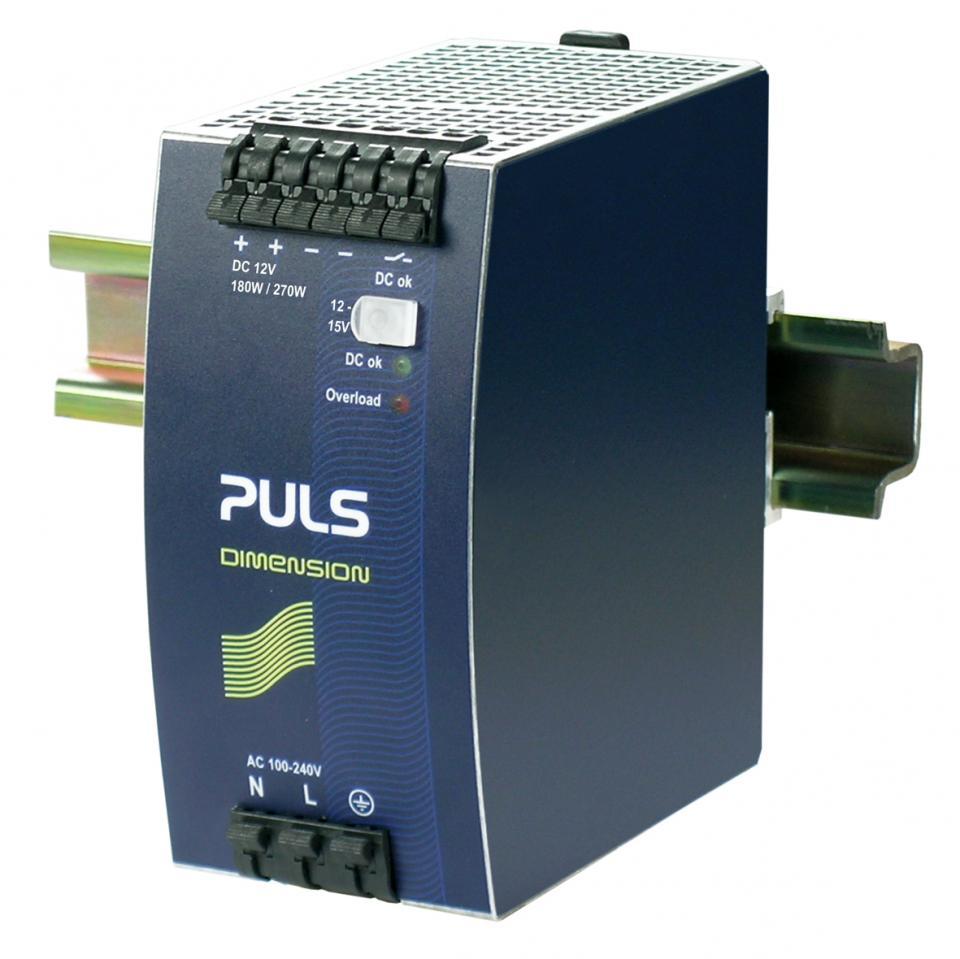

PULS DIN RAIL POWER SUPPLY 1 PHASE 12VDC 15A 180W QS10.121

Product Code: QS10.121
