Industrial Power Supplies

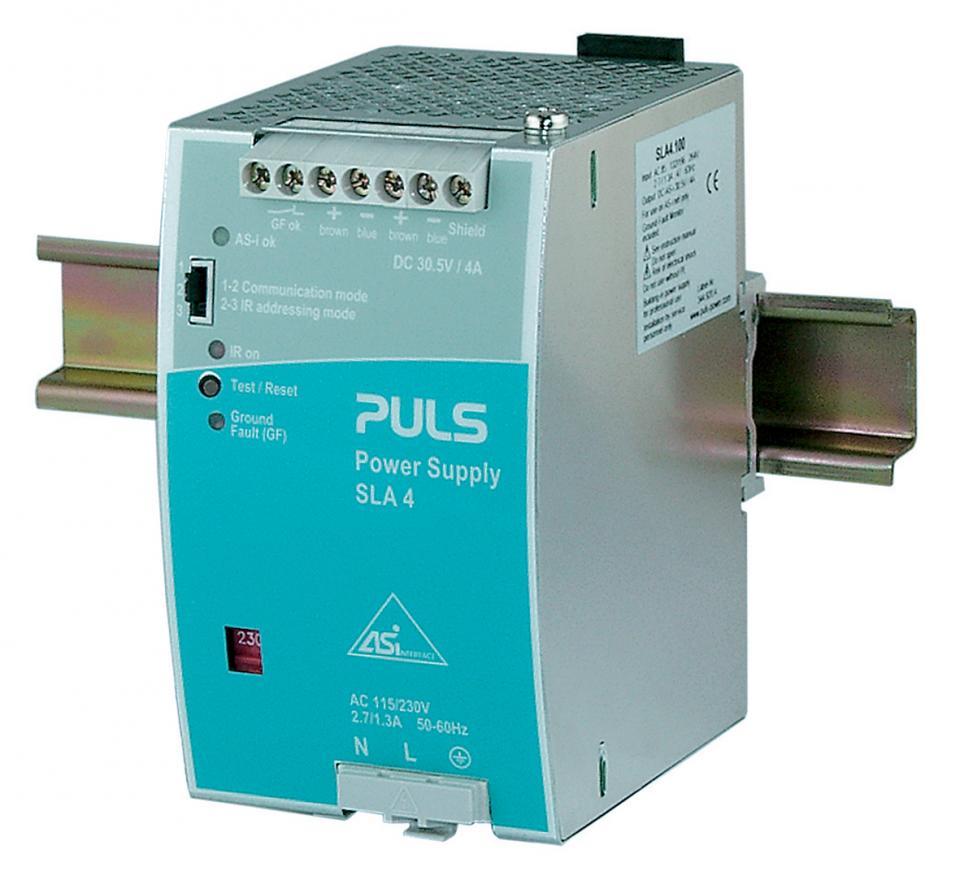

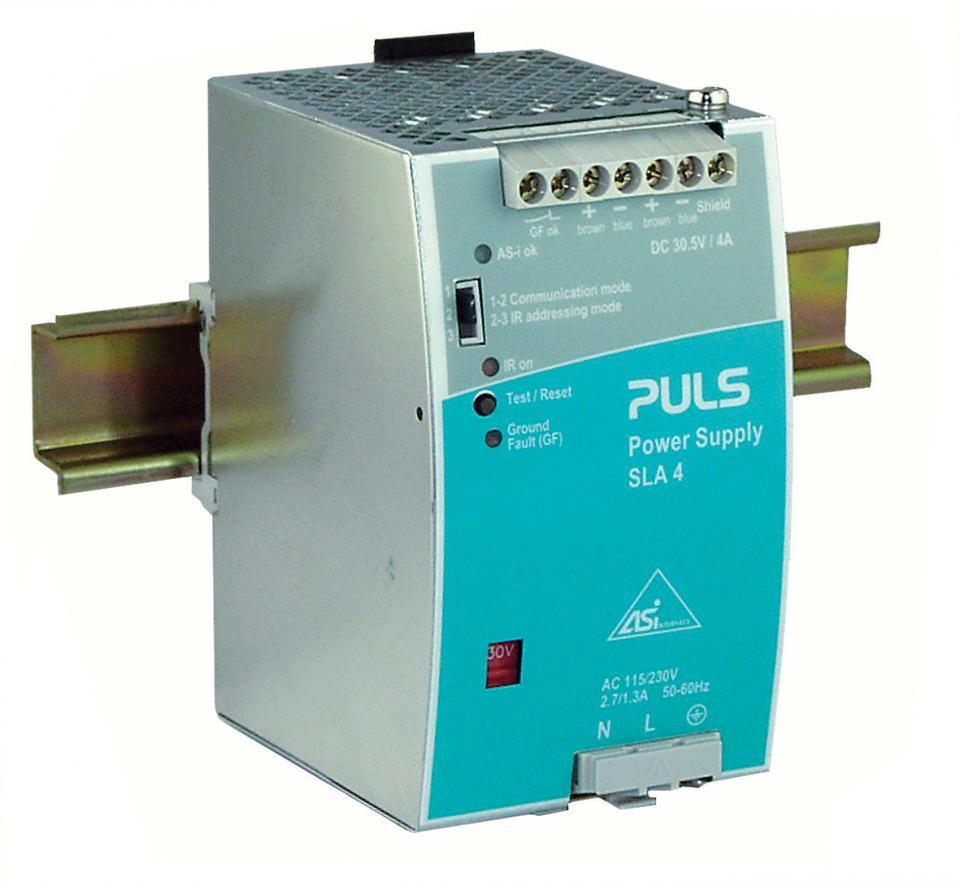

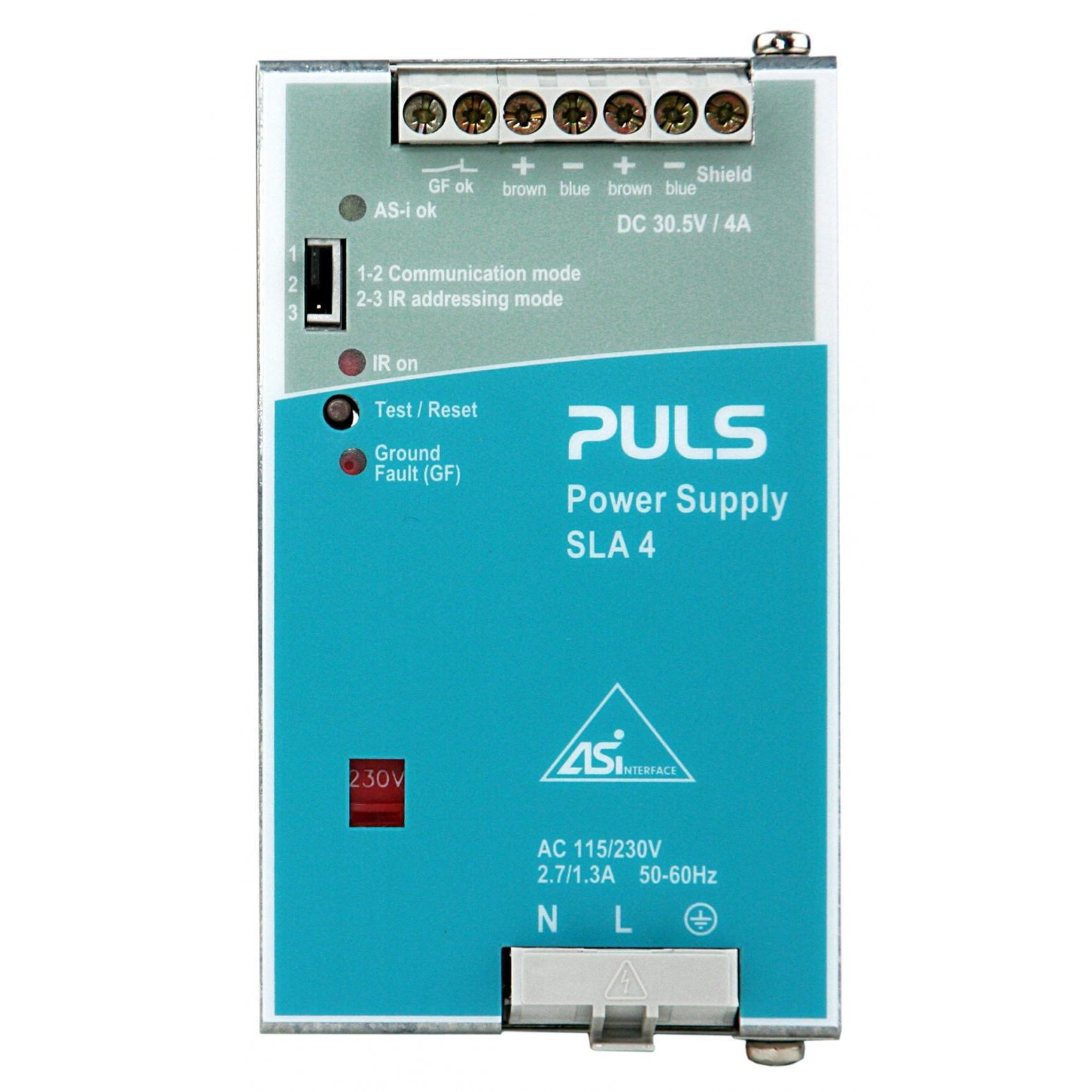

PULS AS-INTERFACE POWER SUPPLY 30.5V DC, 4A SLA4.100

Product Code: SLA4.100

This product features a switchable input for both 115V and 230V power supply. It has an impressive efficiency of up to 90%. The AS-Interface decoupling network is included, providing reliable communication. It also supports IR-Addressing mode for convenient setup. With a wide operating temperature range of -10°C to +60°C, it delivers full output power inVarious environments.

Technical Specifications

AC Input Type Manual-select
Conformal Coating No
Country of Origin China / Czech Republic
Derating 3 W/°C
Derating Temperature (°C) > +60
E Classification E-CS01
Efficiency 88.00%
Input Inrush Current Limitation NTC
Input Voltage Range AC (V) 100-120, 200-240
Integrated Decoupling Function No
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Output Current (A) 4
Output Voltage (V) 30.5
Special Application AS-Interface
Use In Crosslinking Yes
Brand PULS
Connection Type Screw terminals
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 65W x 124H x 102D
Family SilverLine
Mounting Type DIN Rail
Power Loss (W) 13.5
Range SilverLine
Rated Current (A) 4
Series SL series
Standards and Approvals AS-Interface compliant, EU Declaration of Conformity, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 620
