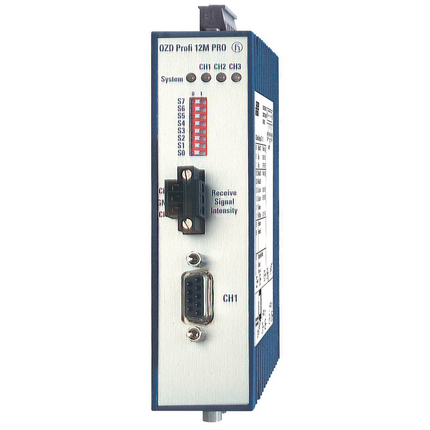

HIRSCHMANN INTERFACE CONVERTER ELECTRICAL/OPTICAL FOR PROFIBUS-FIELD BUS NETWORKS 943904321

Product Code: 943 904-321

Hirschmann's electrical/optical interface converter for PROFIBUS-field bus networks features a repeater function, seamlessly integrating with plastic fiber optics, ideal for short-haul applications. Specifications include: 2 x optical (4 sockets BFOC 2.5 (STR)) and 1 x electrical (Sub-D 9-pin, female, pin assignment according to EN 50170 part 1).

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
Operating Voltage Range 18 - 32V DC, Type 24V DC
Rated Maximum Operational Voltage DC (V) 32
Rated Minimum Operational Voltage DC (V) 18
Rated Operational Power (kW) 0.0048
Relative Humidity 10-95 %
Brand HIRSCHMANN
Degree of Protection IP20
Dimensions (mm) 35W x 156H x 119D
Mounting Type DIN Rail
No. of Pins 9
Operational Temperature Range (°C) 0 - 60
Power Consumption (W) 4.8
Series OZD
Standards EU Conformity, AUS Conformity Australia
Standards and Approvals ATEX/IECeX
Storage Temperature Range (°C) -40 - 70
Weight (g) 200
