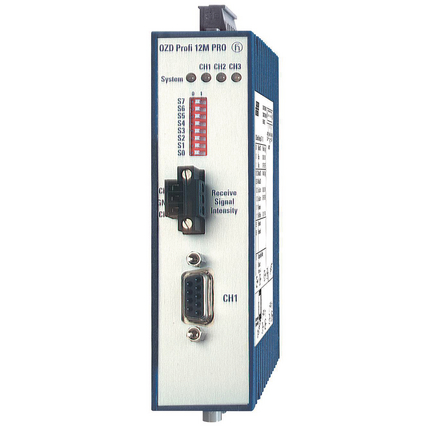

HIRSCHMANN INTERFACE CONVERTER ELECTRICAL/OPTICAL FOR PROFIBUS-FIELD BUS NETWORKS; REPEATER FUNCTION; FOR QUARTZ GLASS FO 943907321

Product Code: 943 907-321

Hirschmann's electrical/optical interface converter is designed for PROFIBUS-field bus networks, featuring a repeater function and compatibility with quartz glass fiber optics. It is built to withstand extended temperature and humidity ranges. Specifications include: 2 x optical (4 sockets BFOC 2.5 (STR)) and 1 x electrical (Sub-D 9-pin, female, pin assignment according to EN 50170 part 1).

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) -20
Operating Voltage Range 18 - 32V DC, Type 24V DC
Rated Maximum Operational Voltage DC (V) 32
Rated Minimum Operational Voltage DC (V) 18
Rated Operational Power (kW) 0.0048
Brand HIRSCHMANN
Degree of Protection IP20
Dimensions (mm) 35W x 156H x 119D
Mounting Type DIN Rail
No. of Pins 9
Operational Temperature Range (°C) -20 - 60
Power Consumption (W) 4.8
Series OZD
Standards EU Conformity, AUS Conformity Australia
Standards and Approvals ATEX/IECeX
Storage Temperature Range (°C) -40 - 70
Weight (g) 200
