W66 Industrial IP66 Switchgear

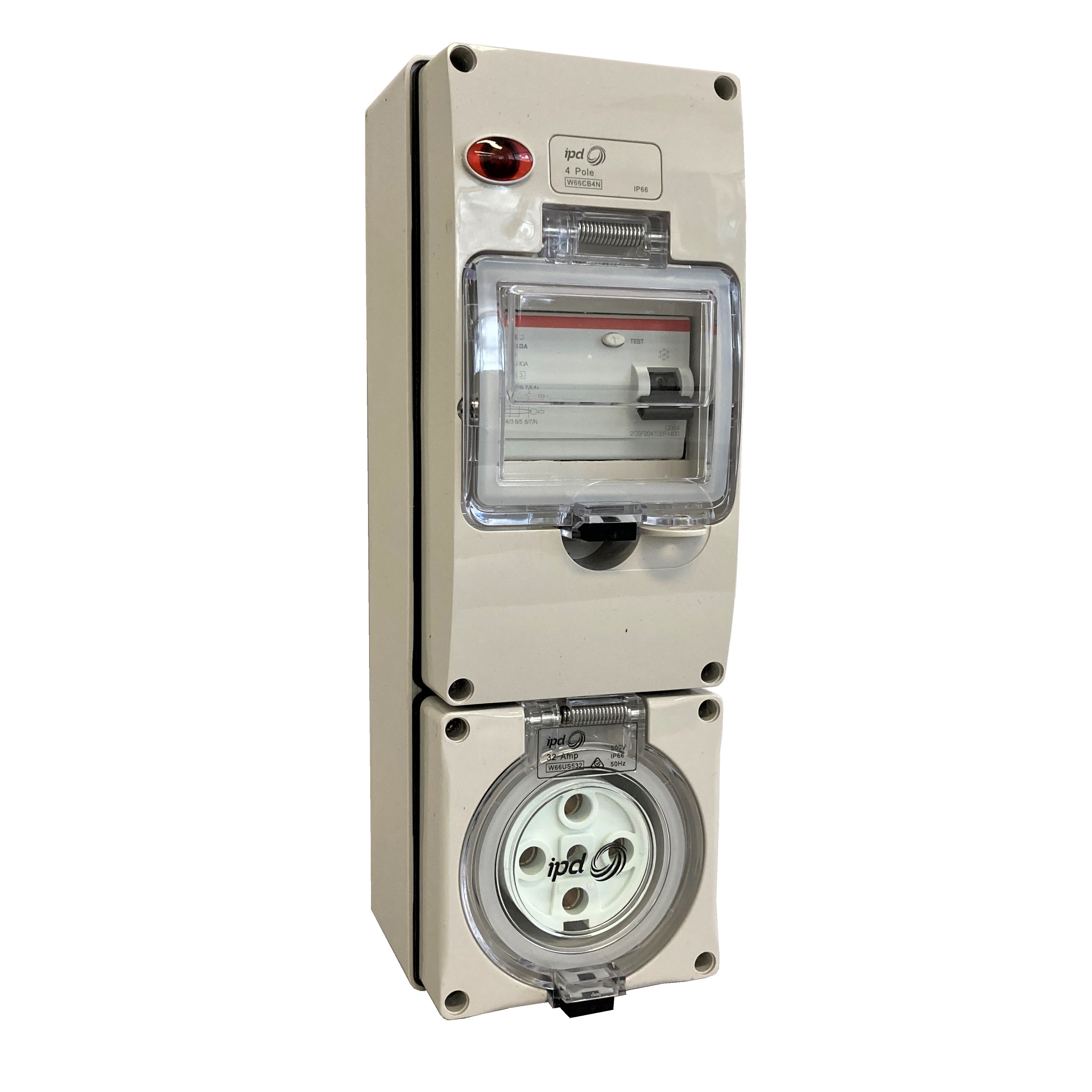

IPD RCD TYPE A PROTECTED OUTLET KIT 4P DIN 1 PHASE 3 PINS 20A, IP66 W66US320RCA

Product Code: W66US320RCA

This single phase outlet kit is designed for engineers and features a 30mA RCD protection. It has 3 round pins and an IP66 rating, ensuring durability and resistance to dust and water. The current rating is 20A, making it suitable for various electrical applications.

Technical Specifications

Brand IPD
Cover Style Silicone Gasket
Degree of Protection IP66
Gland Entries 1 x M32, 2 x M25
Material Polycarbonate
Maximum Cable Cross Section (mm²) 6
Mounting Type DIN Rail
No. of Phases 1
No. of Pins 3
Pin Type Round
Rated Current (A) 20
Rated Residual Current (mA) 30
Rated Voltage AC/DC (V) 415
Standards and Approvals IP66
Type of Residual Current Type A
