Brand	ABB
Ambient Temperature Range (°C)	-25 to +60
Breaking Capacity 415V AC - Icu (kA)	50
Dimensions (mm)	90W x 95H x 82.5D
Mounting Type	DIN Rail
No. of Poles	3
Pole Width (mm)	27
Power Loss (W)	28.2
Rated Current (A)	125
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	690
Rated Operational Voltage (V)	400/690
Rated Short-Circuit Capacity - Icn (kA)	15
Standards	IEC/EN 60947-2 UL 1077
Weight (kg)	0.765

DIN MCB

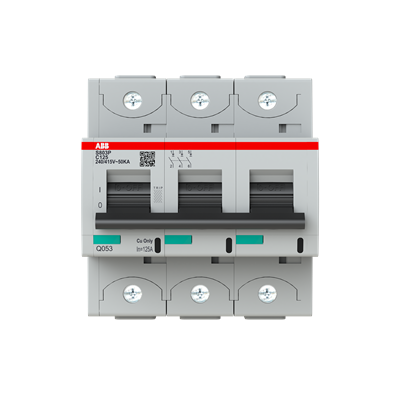

ABB MCB 50KA 3 POLE 125A C CURVE S800P S803PC125
