Brand	ABB
Frequency (Hz)	50/60 Hz
Voltage Type	AC/DC
Dimensions (mm)	27W x 95H x 82.5D
ETIM 8.0	EC000042 - Miniature circuit breaker (MCB)
Mounting Type	DIN Rail
No. of Poles	1
Rated Current (A)	80
Rated Impulse Withstand Voltage (kV)	6
Rated Operational Voltage AC (V)	according to IEC 60898-1 230 V AC according to IEC 60947-2 400 V AC
Rated Short-Circuit Capacity - Icn (kA)	(230 / 400 V AC) 25
Standards	IEC/EN 60947-2 UL 1077
Tightening Torque (Nm)	3.5
Weight (kg)	0.245

DIN MCB

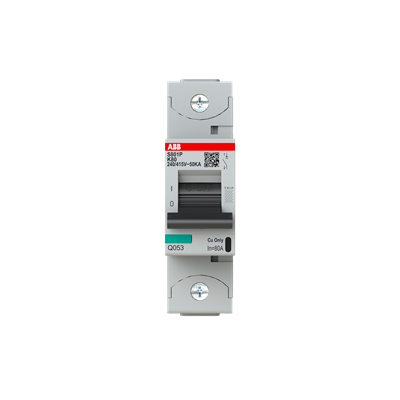

ABB MCB 50kA 1P 80A K CURVE 1MOD S801PK80
