Brand	ABB
Ambient Temperature Range (°C)	-25 to +60
Mounting Type	DIN Rail
Breaking Capacity 240V AC - Icu (kA)	50
Breaking Capacity 415V AC - Icu (kA)	50
No. of Poles	1
Power Loss (W)	8
Rated Current (A)	100
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	690
Rated Operational Voltage (V)	230/400
Rated Short-Circuit Capacity - Icn (kA)	15
Dimensions (mm)	27W x 95H x 82.5D
Weight (kg)	0.28
Standards	IEC/EN 60947-2 UL 1077

DIN MCB

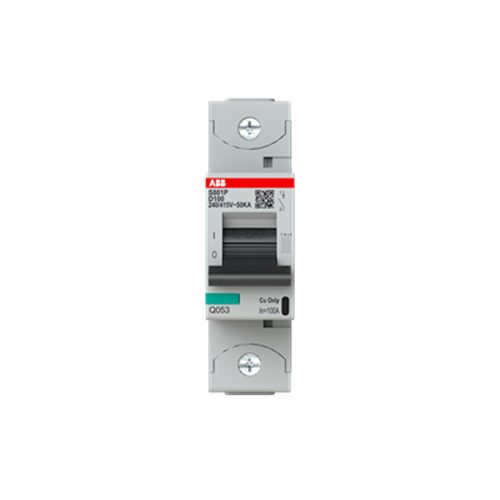

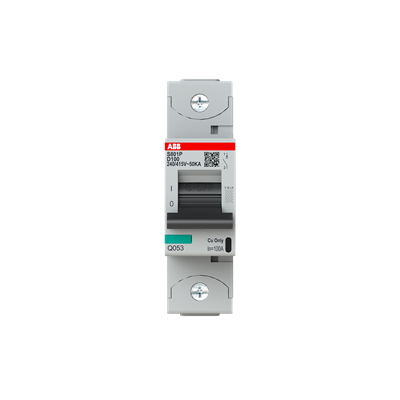

ABB MCB 50KA 1 POLE 100A D CURVE S800P S801PD100
