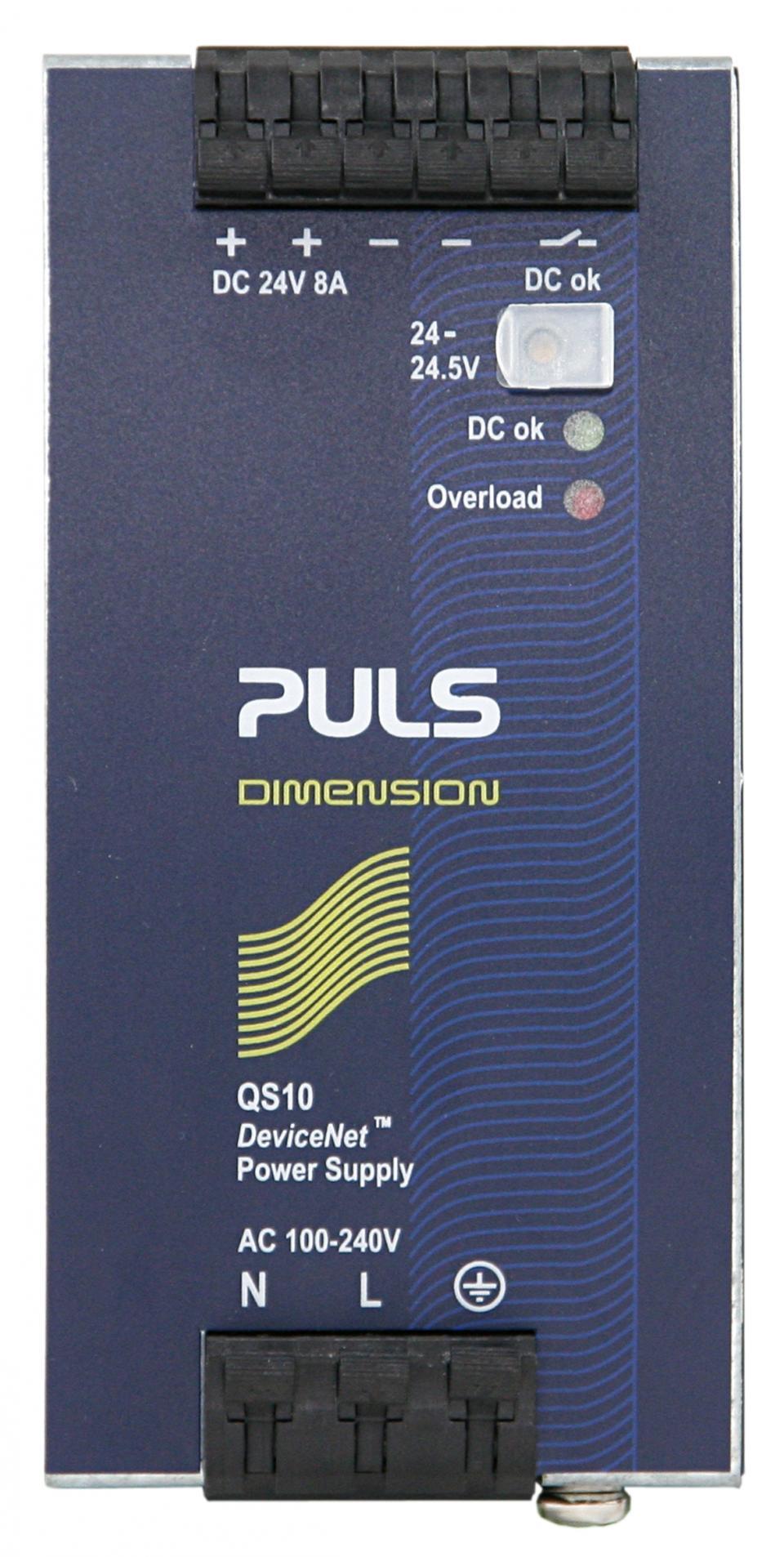

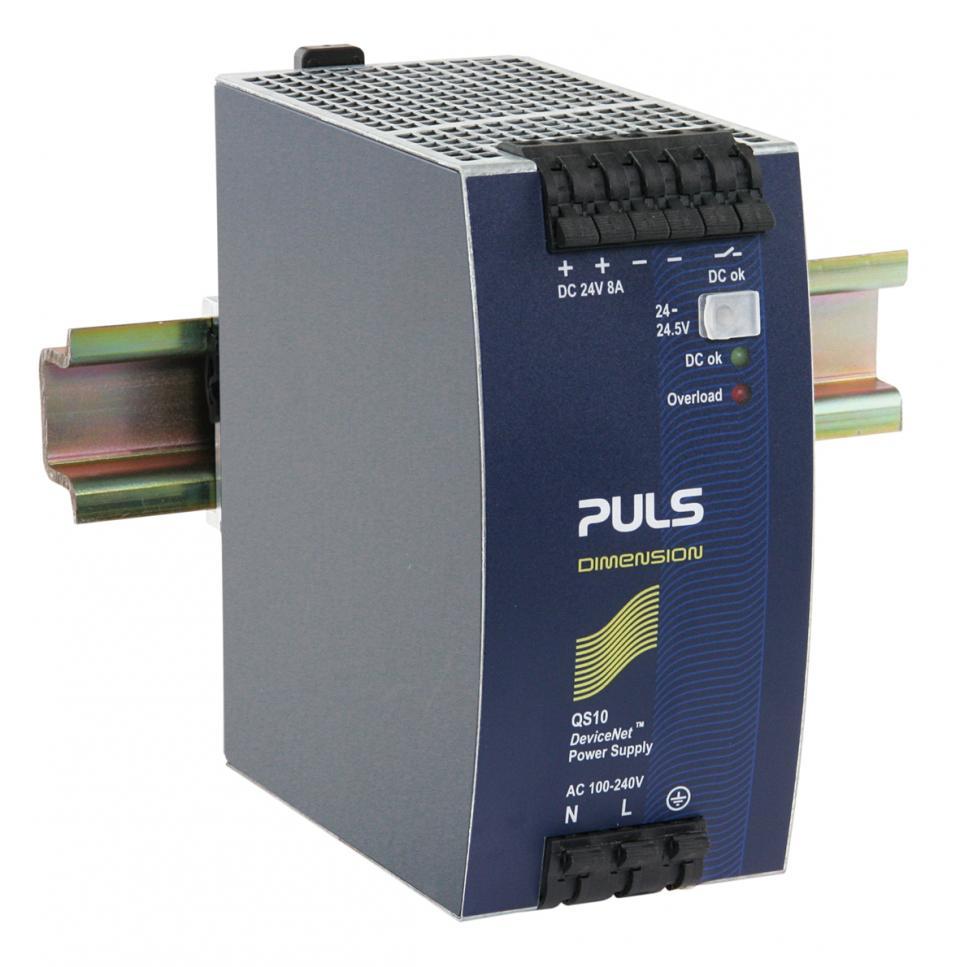

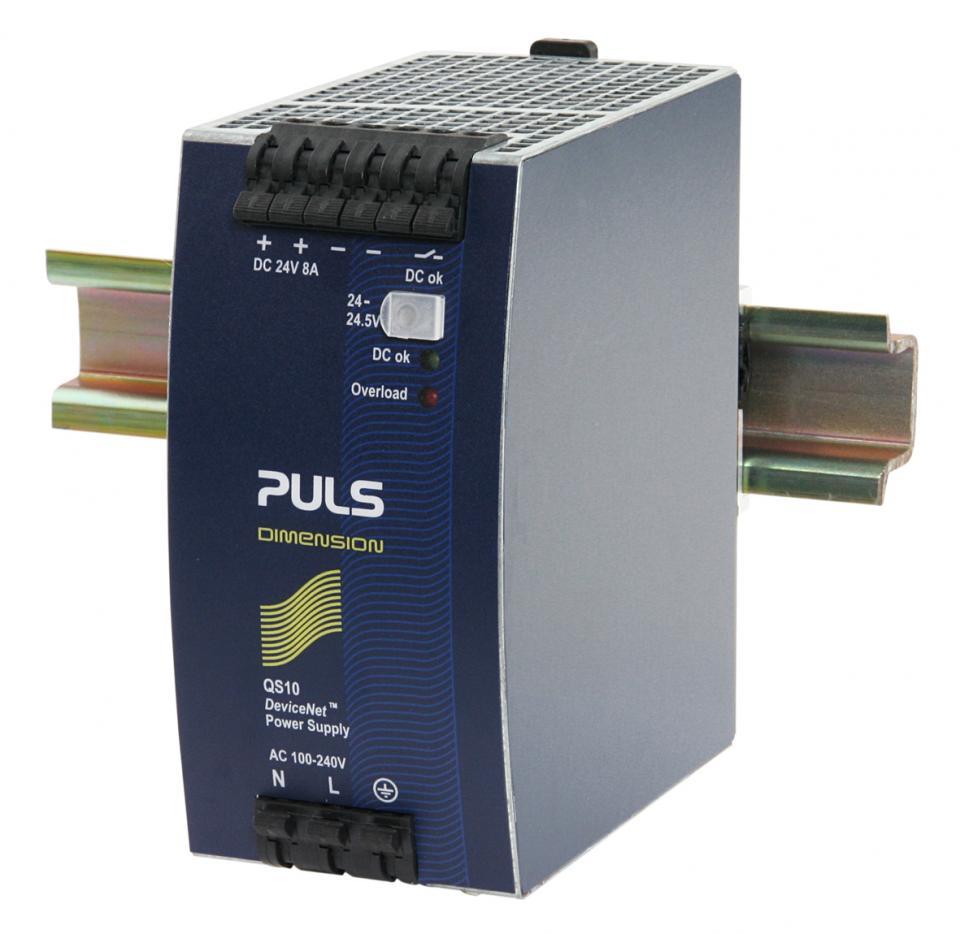

PULS POWER SUPPLY, 1 PHASE, 24V, 8A, NEC CLASS 1, QS10.DNET

Product Code: QS10.DNET

The product features a wide-range input of 100-240V with active power factor correction (PFC). It has an efficiency rating of up to 92.7% and is SEMI-F47-200 approved. The device has negligibly low input inrush current and is also DeviceNet approved. It can provide full output power in temperatures ranging from -25 to +60 degrees Celsius. The product is equipped with spring-clamp terminals and a DC-OK contact.

Technical Specifications

AC Input Type Wide-range
Conformal Coating No
Country of Origin China / Czech Republic
DC-OK Signal Yes
Derating 5 W/°C
Derating Temperature (°C) > +60
E Classification E-CS01
Efficiency 93.40%
External Input Fuse Recommendation B-6 A / C-4 A
Harmonic Correction Active
Input Inrush Current (A) 4 / 7
Input Inrush Current Limitation Active
Input Voltage Range AC (V) 100-240
Input Voltage Range DC (V) 110-150
Integrated Decoupling Function No
Maximum Input Voltage DC (V) 150
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 110
Output Current Range (A) 8 - 8
Output Power (W) 192
Output Voltage (V) 24-24.5
Special Application Hazardous location, Marine, Semiconductor, DeviceNet
Use In Crosslinking Yes
Brand PULS
Connection Type Spring clamps
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 60W x 124H x 117D
Family DIMENSION
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Power Loss (W) 13.6
Range DIMENSION
Rated Current (A) 8
Series Q series
Standards and Approvals Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, DeviceNet compliant, EU Declaration of Conformity, IEC 60950 CB Scheme, IEC 61010-2-201 CB Scheme, Korea Certification, Marine ABS, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 900
