AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	Czech Republic
DC-OK Signal	Yes
E Classification	PoE Injector
Efficiency	93.10%
External Input Fuse Recommendation	B-6 A / C-6 A
Harmonic Correction	Active
Input Inrush Current (A)	6 / 9
Input Inrush Current Limitation	Active
Input Voltage Range AC (V)	100-240
Input Voltage Range DC (V)	110-150
Integrated Decoupling Function	No
Maximum Input Voltage DC (V)	150
Maximum Ripple and Noise Voltage (mVpp)	50
Minimum Input Voltage DC (V)	110
Output Current Range (A)	0.6 - 0.6
Output Power (W)	240
Output Voltage (V)	48-56
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Plug connector, RJ45 Ethernet
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	77W x 128H x 117D
Family	DIMENSION
Material	Metal
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	17.8
Range	DIMENSION
Rated Current (A)	0.6
Series	PoE series
Standards and Approvals	EU Declaration of Conformity, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	940

Industrial Power Supplies

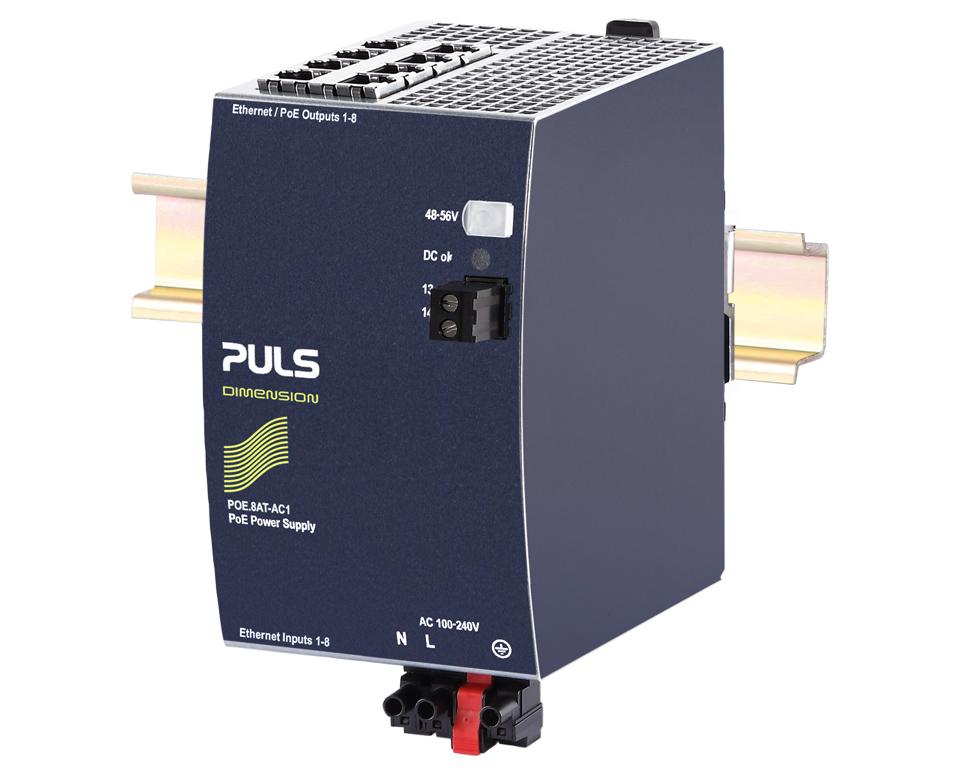

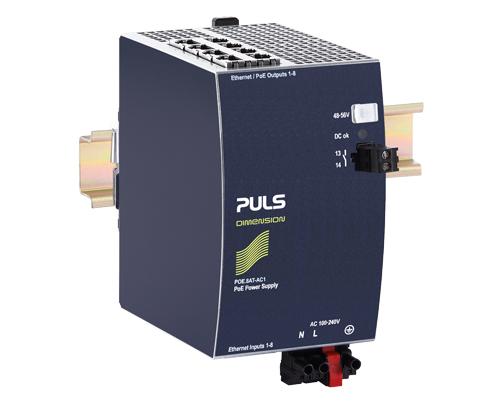

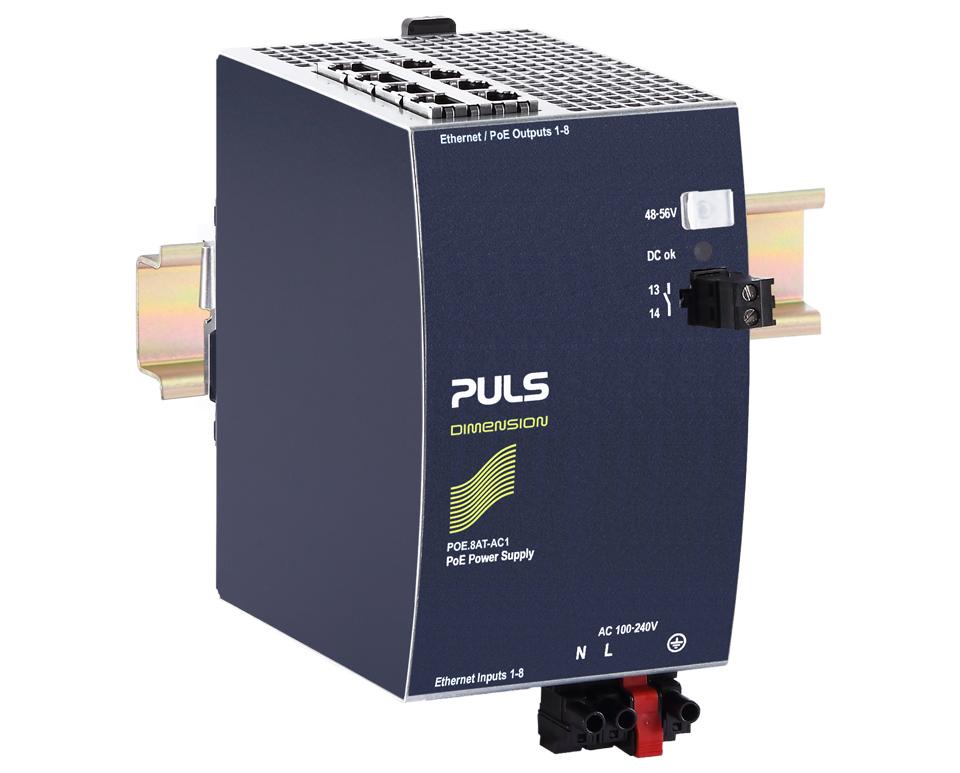

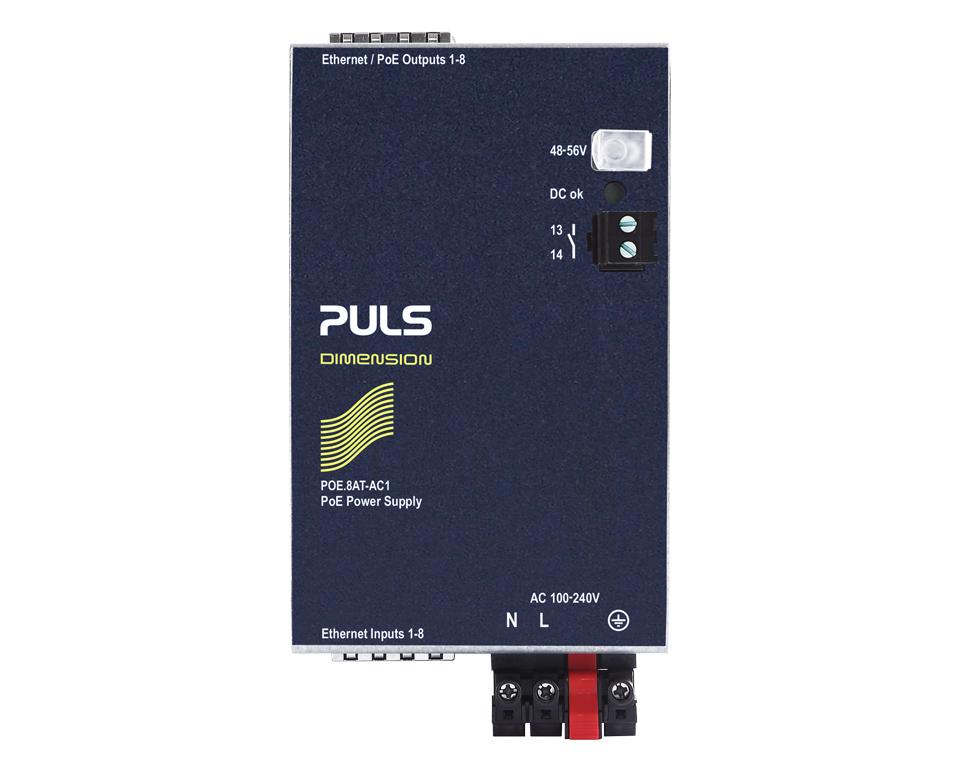

PULS POE POWER SUPPLY 48V, 8 PORTS POE.8AT-AC1
