AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	China / Czech Republic
DC-OK Signal	Yes
Derating	1.44 W/°C
Derating Temperature (°C)	+60 to +70
E Classification	E-CS01
Efficiency	90.70%
External Input Fuse Recommendation	B-6 A / C-4 A
Hold Up Time (ms)	107
Input Inrush Current (A)	15 / 36
Input Inrush Current Limitation	NTC
Input Voltage Range AC (V)	100-240
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	100
Output Current Range (A)	5 - 4
Output Power (W)	60
Output Voltage (V)	12-15
Power Factor	0.47
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	36W x 90H x 91D
Family	PIANO
Material	Polycarbonate
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-10 to 70
Power Loss (W)	6.2
Range	PIANO
Rated Current (A)	5
Series	PIM series
Standards and Approvals	EU Declaration of Conformity, IEC 61010-2-201 CB Scheme, IEC 62368-1 CB Scheme, UL 1310 NEC Class 2, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	225

Industrial Power Supplies

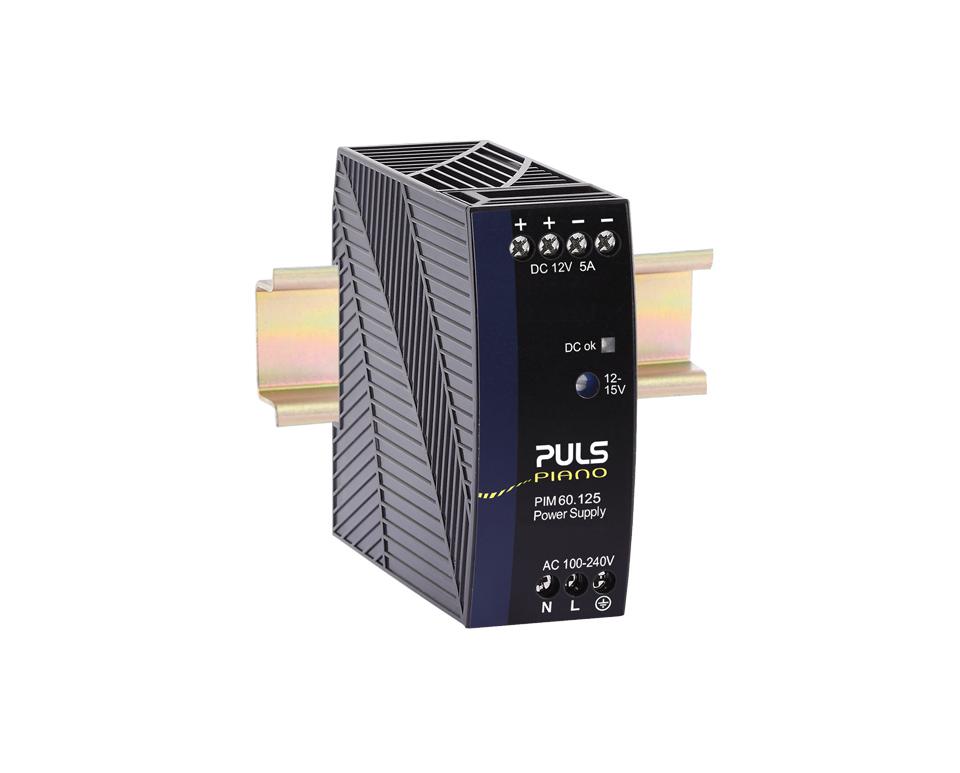

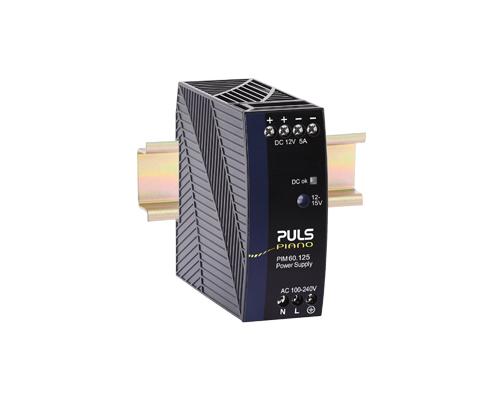

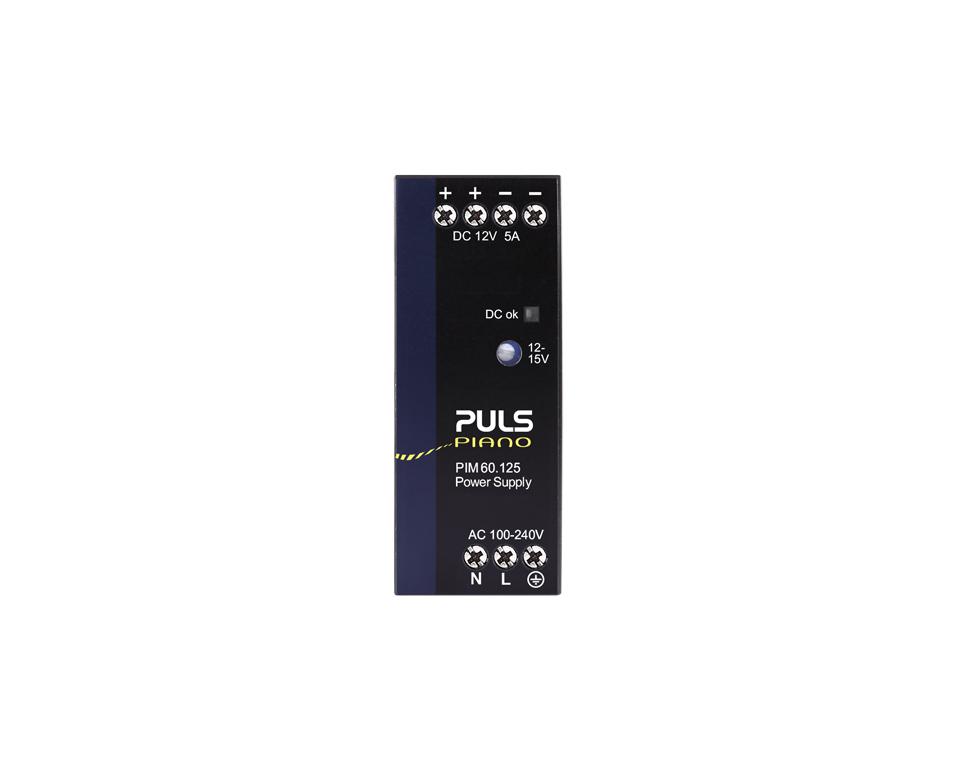

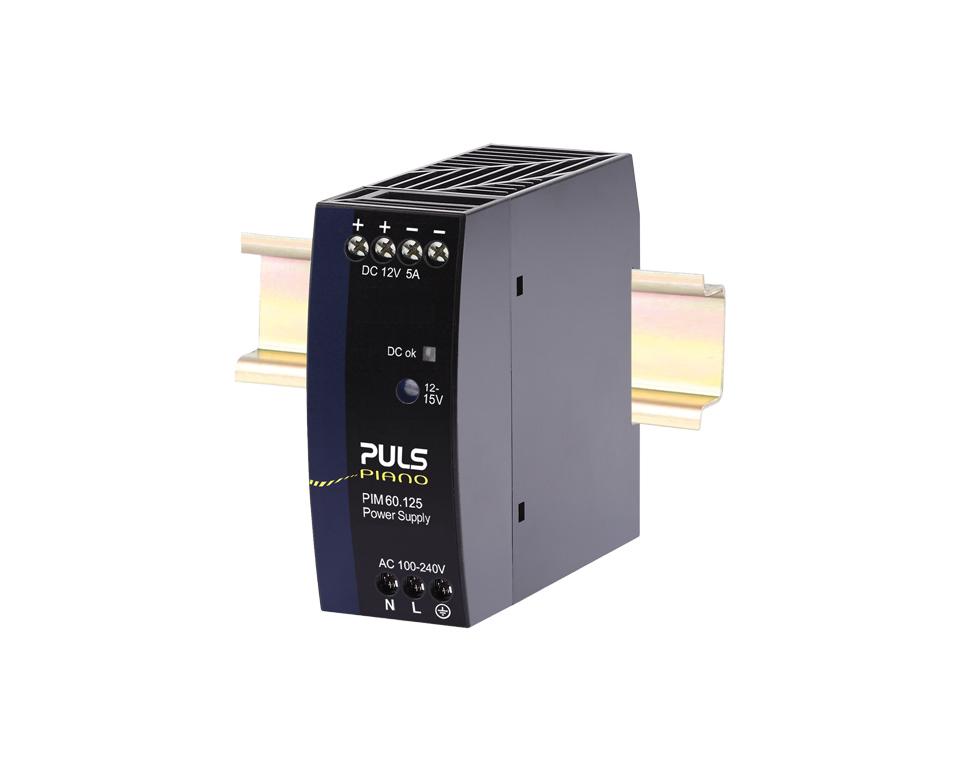

PULS DIN RAIL POWER SUPPLY 1 PHASE 12VDC 5A 60W PIM60.125
