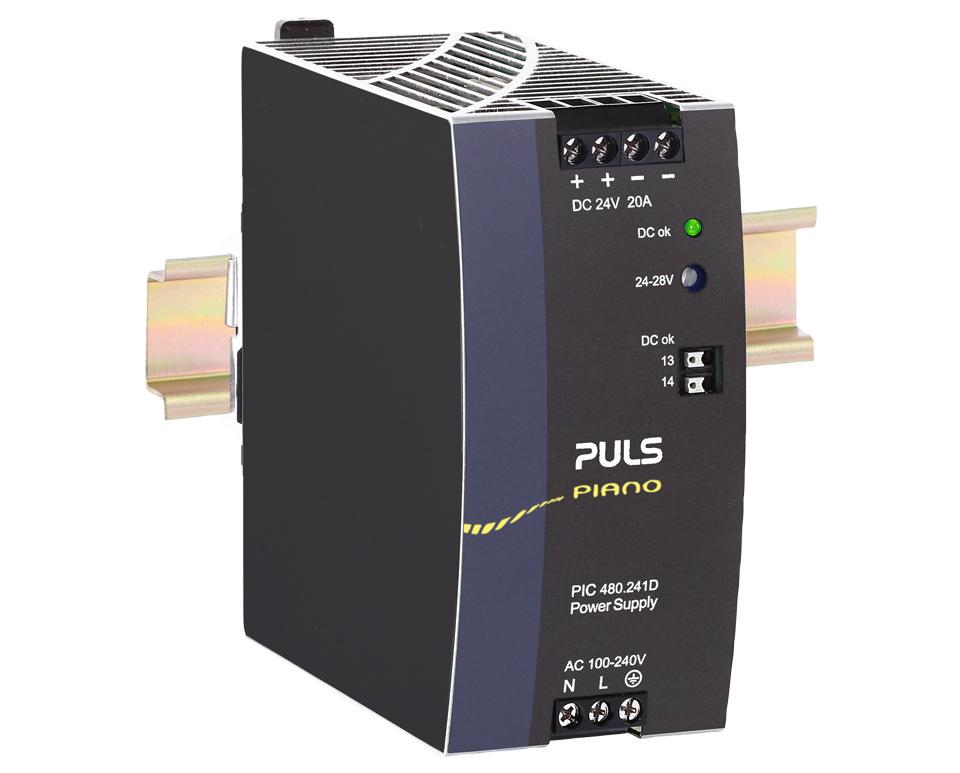

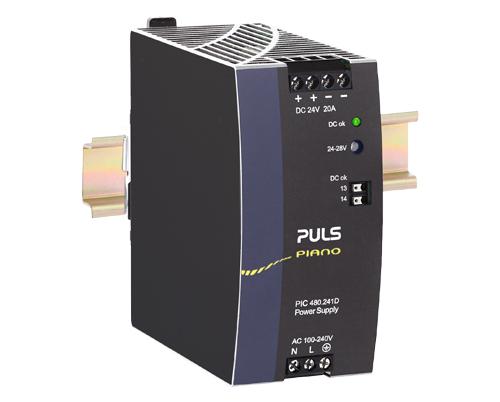

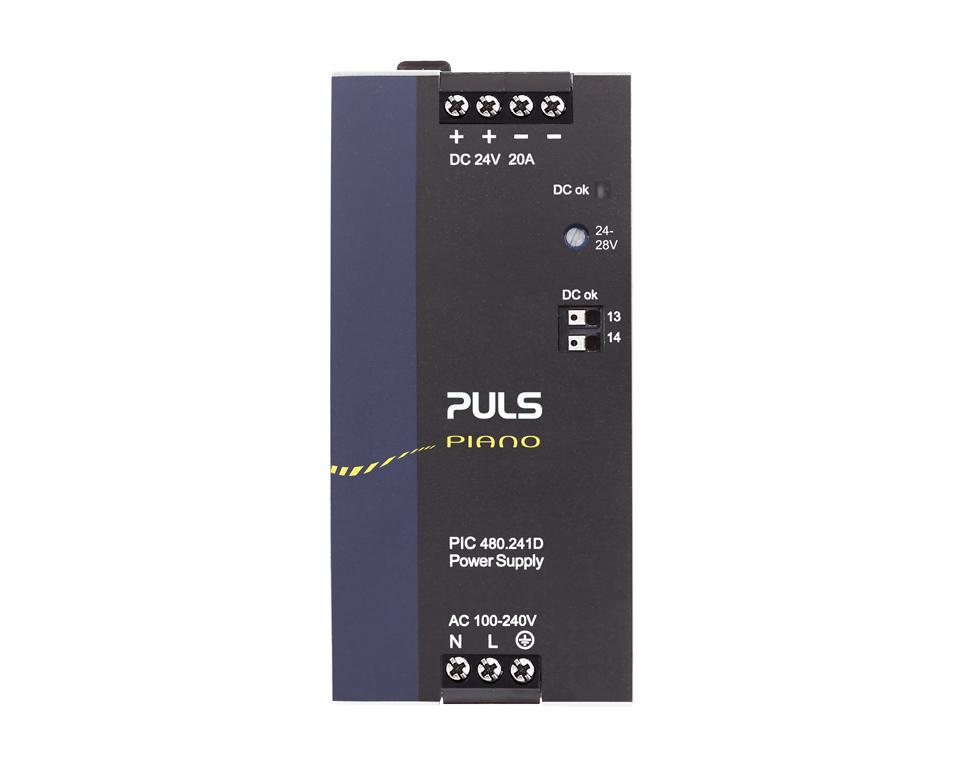

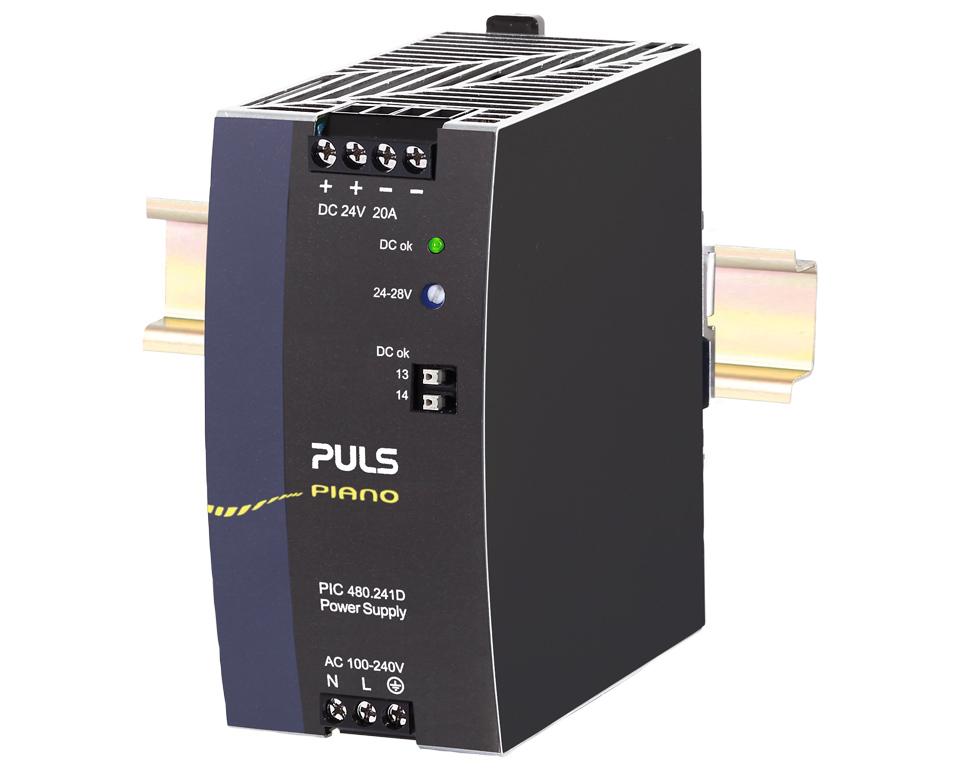

PULS POWER SUPPLY 1 PHASE 24V DC 20A PIC480.241D

Product Code: PIC480.241D

AC 100-240V Wide-range input with Active power factor correction (PFC). Cost optimized design ensures quality and reliability. Compact width of only 59mm. High efficiency up to 95.0%. Features Safe HiccupPLUS overload mode for added safety. Operates at full power between -25°C and +55°C. Minimal inrush current surge. Includes DC-OK relay contact for easy monitoring.

Technical Specifications

AC Input Type Wide-range
Conformal Coating No
Country of Origin China / Czech Republic
DC-OK Signal Yes
Derating 12 W/°C
Derating Temperature (°C) > +55
E Classification E-CS01
Efficiency 95.00%
External Input Fuse Recommendation B-10 A / C-6 A
Input Inrush Current (A) 16
Input Inrush Current Limitation NTC
Input Voltage Range AC (V) 100-240
Integrated Decoupling Function No
Maximum Ripple and Noise Voltage (mVpp) 100
Minimum Output Current (A) 20
Output Power (W) 480
Output Voltage (V) 24-28
Power Factor 0.97
Use In Crosslinking Yes
Brand PULS
Connection Type Screw terminals
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 59W x 124H x 127D
Family PIANO
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Power Loss (W) 25.3
Range PIANO
Rated Current (A) 20
Series PIC series
Standards and Approvals EU Declaration of Conformity, IEC 61010-2-201 CB Scheme, IEC 62368-1 CB Scheme, Korea Certification, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 810
