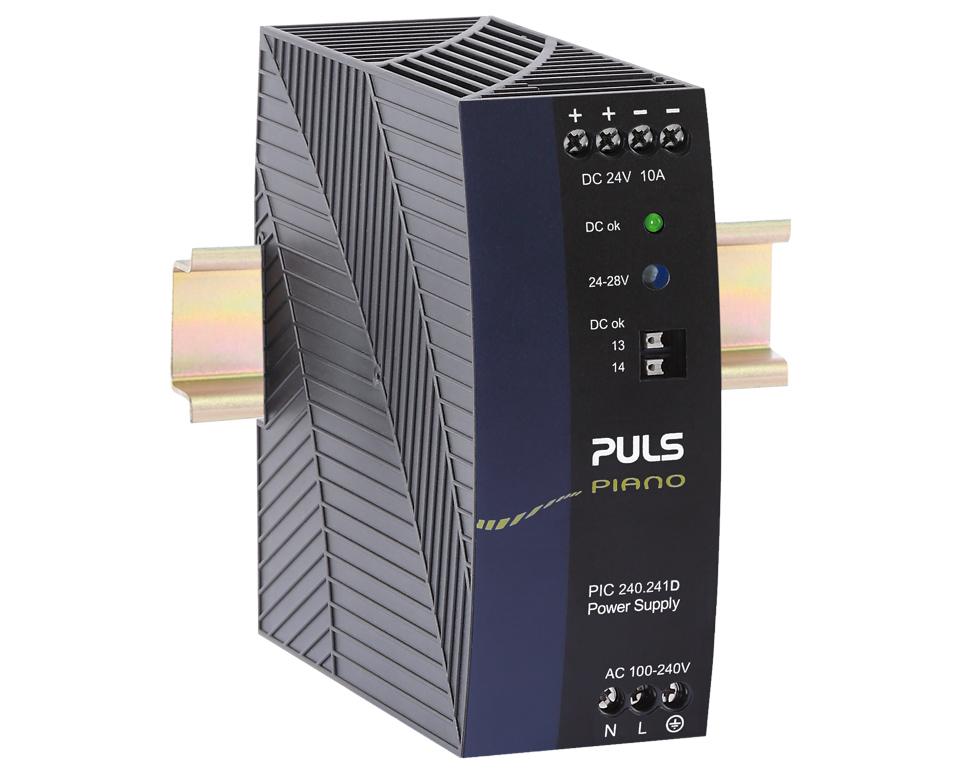

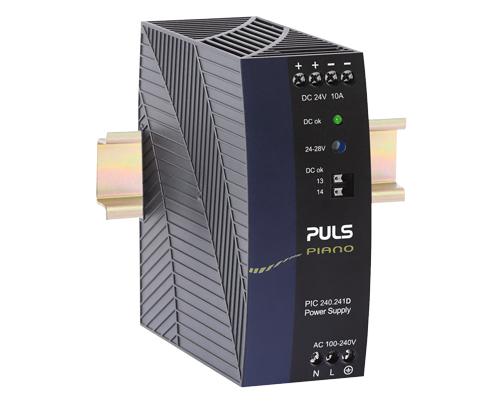

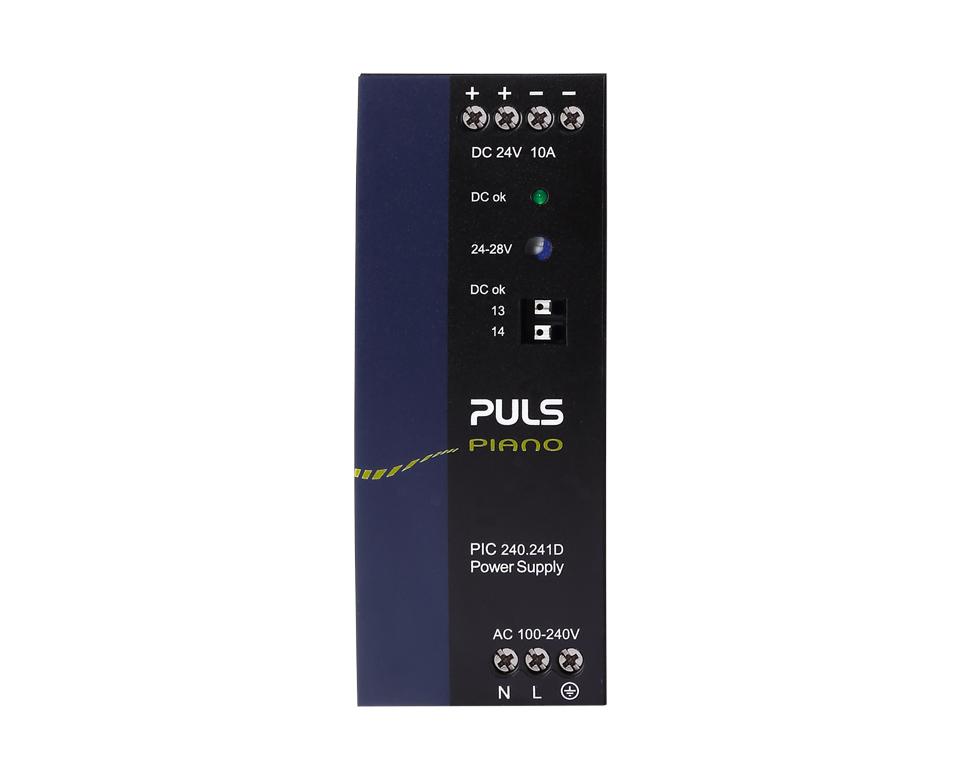

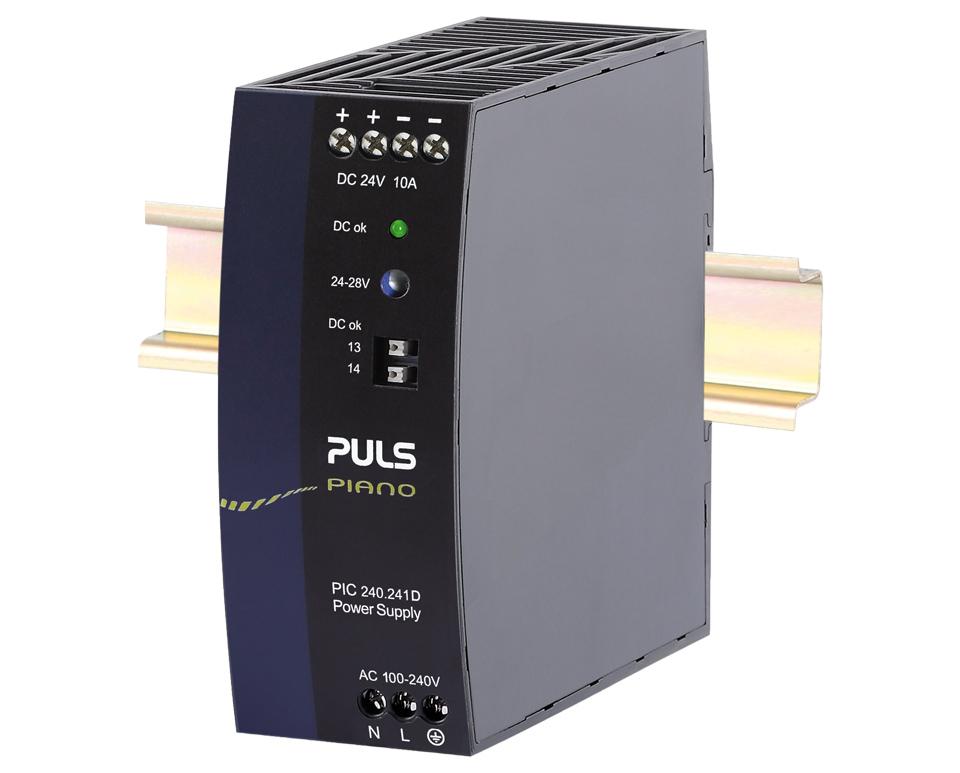

PULS POWER SUPPLY 1 PHASE 24V DC 10A PIC240.241D

Product Code: PIC240.241D

AC 100-240V Wide-range input with Active power factor correction (PFC). This product is cost optimized without compromising quality or reliability. It has a width of only 49mm and an efficiency rating of up to 95.2%. It can operate at full power between -25°C and +55°C. Additionally, it features a DC-OK relay contact.

Technical Specifications

AC Input Type Wide-range
Conformal Coating No
Country of Origin China / Czech Republic
DC-OK Signal Yes
Derating 6 W/°C
Derating Temperature (°C) > +55
E Classification E-CS01
Efficiency 95.20%
External Input Fuse Recommendation B-10 A / C-6 A
Harmonic Correction Active
Input Inrush Current (A) 14 / 26
Input Inrush Current Limitation Active
Input Voltage Range AC (V) 100-240
Integrated Decoupling Function No
Maximum Ripple and Noise Voltage (mVpp) 100
Output Current Range (A) 10 - 8.6
Output Power (W) 240
Output Voltage (V) 24-28
Power Factor 0.93
Use In Crosslinking Yes
Brand PULS
Connection Type Screw terminals
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 49W x 124H x 124D
Family PIANO
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Power Loss (W) 12.1
Range PIANO
Rated Current (A) 10
Series PIC series
Standards and Approvals EU Declaration of Conformity, IEC 60950 CB Scheme, IEC 61010-2-201 CB Scheme, IEC 62368-1 CB Scheme, Korea Certification, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 540
