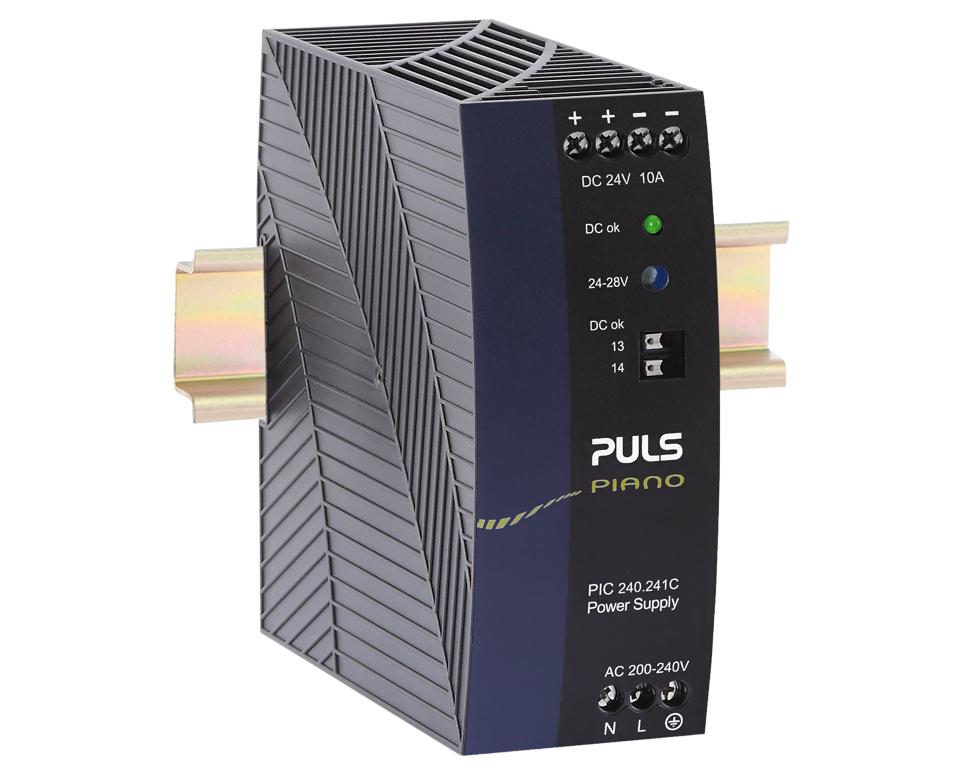

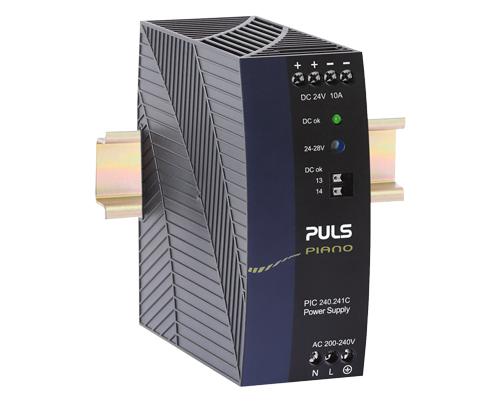

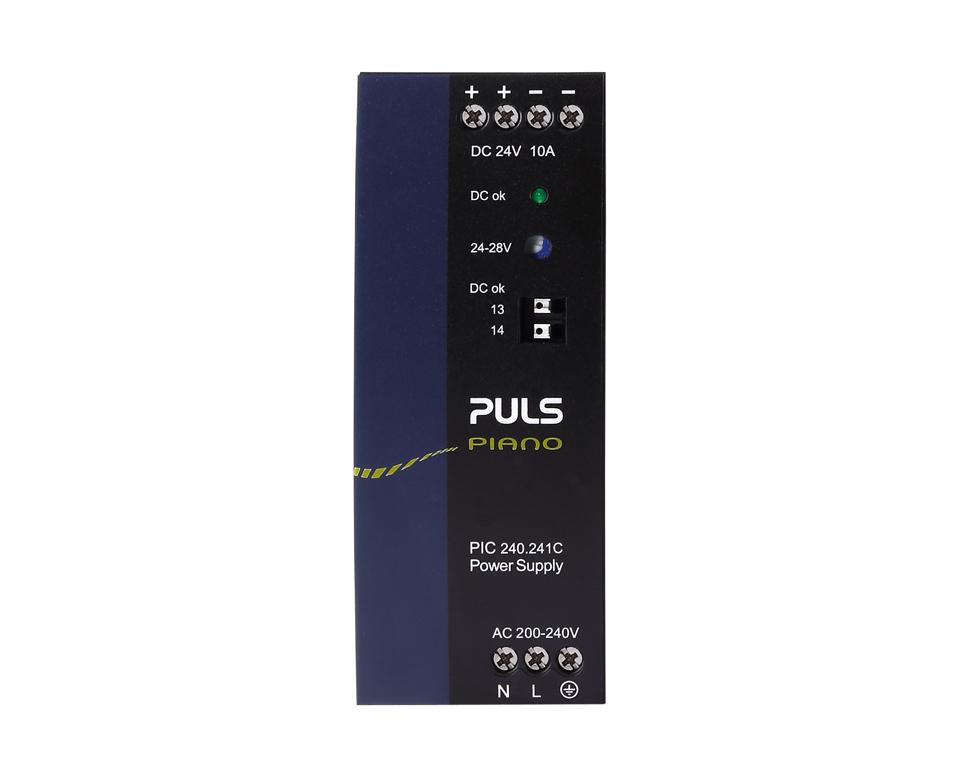

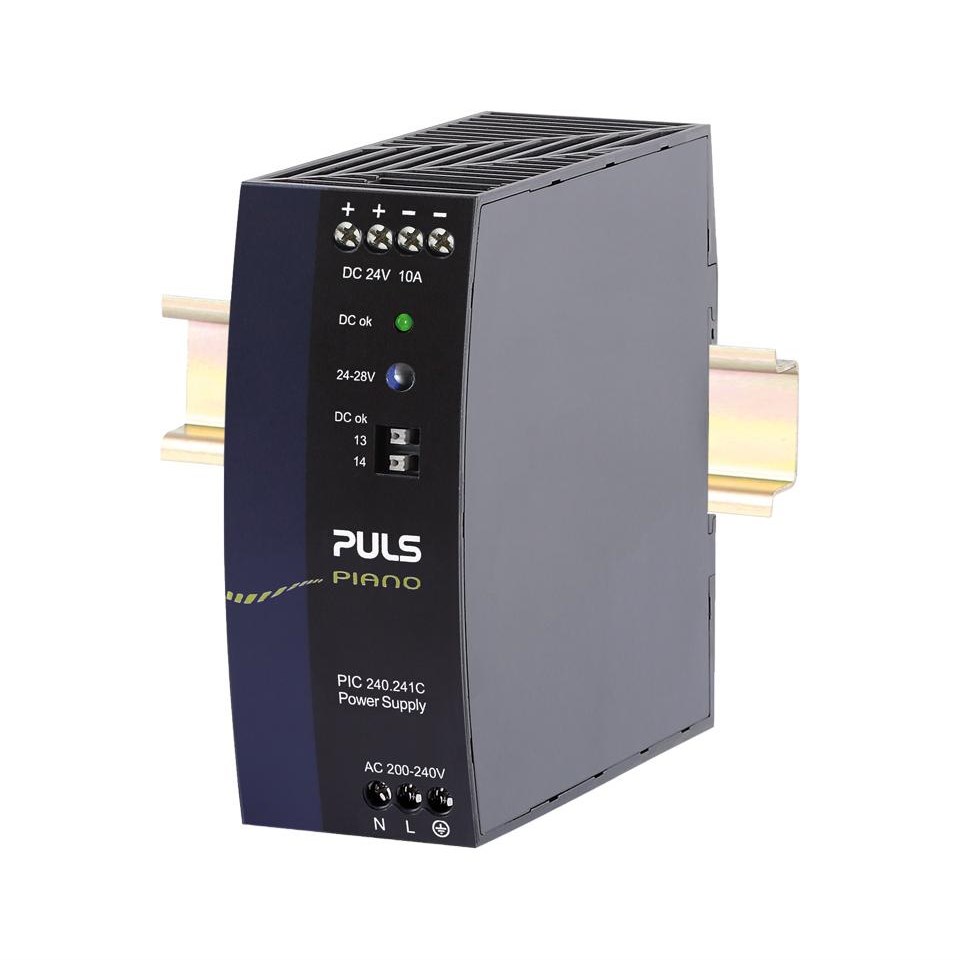

PULS POWER SUPPLY 1 PHASE 24V DC 10A PIC240.241C

Product Code: PIC240.241C

Cost optimized power supply with no compromise on quality or reliability. InputVoltage range of 200-240V for regional use. High efficiency of up to 91.4%. Includes DC-OK relay contact. Durable housing made of high-grade, reinforced molded material. Full output power available in temperatures ranging from -10 to +55°C. Remarkably compact design with a width of only 49mm.

Technical Specifications

Conformal Coating No
Country of Origin China / Czech Republic
DC-OK Signal Yes
Derating 6 W/°C
Derating Temperature (°C) > +55
E Classification E-CS01
Efficiency 91.40%
External Input Fuse Recommendation B-16 A / C-10 A
Input Inrush Current (A) 48
Input Inrush Current Limitation NTC
Input Voltage Range AC (V) 200-240
Integrated Decoupling Function No
Maximum Ripple and Noise Voltage (mVpp) 100
Output Current Range (A) 10 - 8.6
Output Power (W) 240
Output Voltage (V) 24-28
Power Factor 0.52
Special Application Marine
Use In Crosslinking Yes
Brand PULS
Connection Type Screw terminals
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 49W x 124H x 124D
Family PIANO
Mounting Type DIN Rail
Power Loss (W) 22.6
Range PIANO
Rated Current (A) 10
Series PIC series
Standards and Approvals EU Declaration of Conformity, IEC 60950 CB Scheme, IEC 61010-2-201 CB Scheme, IEC 62368-1 CB Scheme, Korea Certification, Marine DNV, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 550
