AC Input Type	Auto-select
Conformal Coating	No
Country of Origin	China / Czech Republic
DC-OK Signal	Yes
Derating	3 W/°C
Derating Temperature (°C)	+55 to +70
E Classification	E-CS01
Efficiency	92.30%
External Input Fuse Recommendation	B-10 A / C-6 A
Input Inrush Current (A)	22 / 33
Input Inrush Current Limitation	NTC
Input Voltage Range AC (V)	100-120, 200-240
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	100
Output Current Range (A)	5 - 4.3
Output Power (W)	120
Output Voltage (V)	24-28
Power Factor	0.54
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	39W x 124H x 124D
Family	PIANO
Mounting Type	DIN Rail
Power Loss (W)	10
Range	PIANO
Rated Current (A)	5
Series	PIC series
Standards and Approvals	EU Declaration of Conformity, IEC 61010-2-201 CB Scheme, IEC 62368-1 CB Scheme, Korea Certification, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	370

Industrial Power Supplies

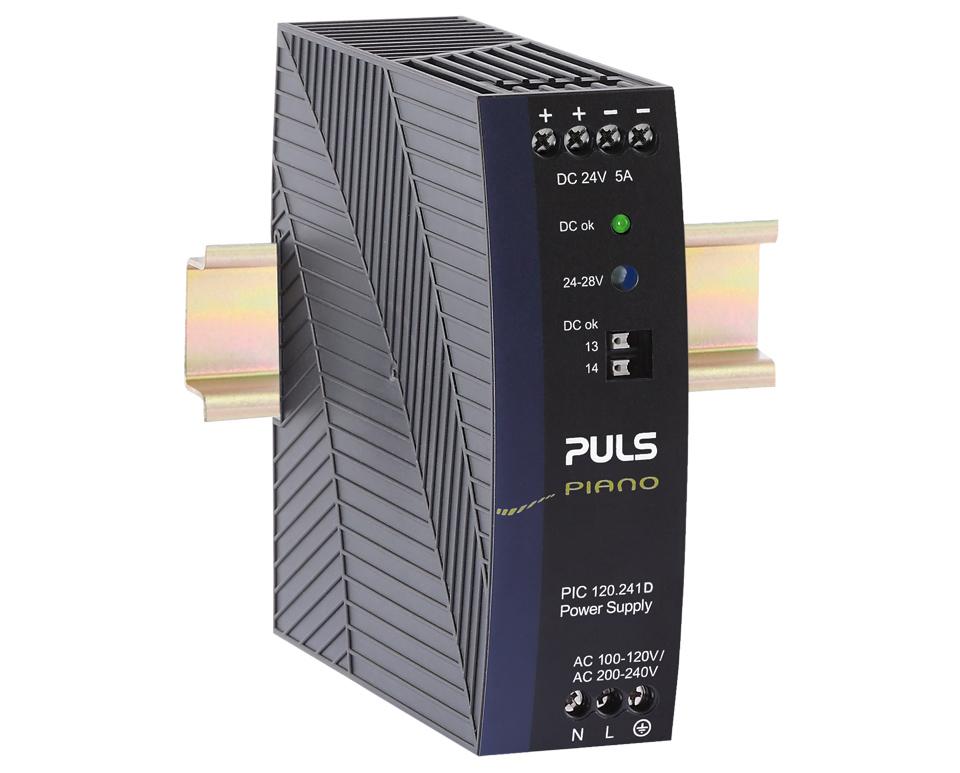

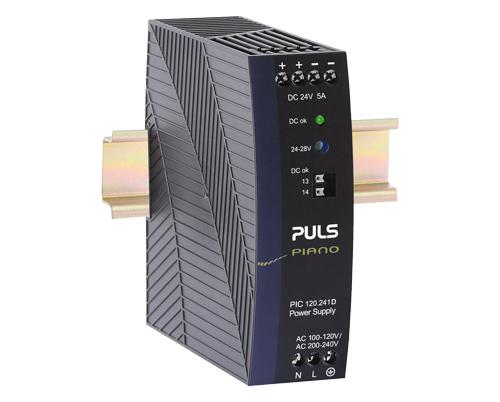

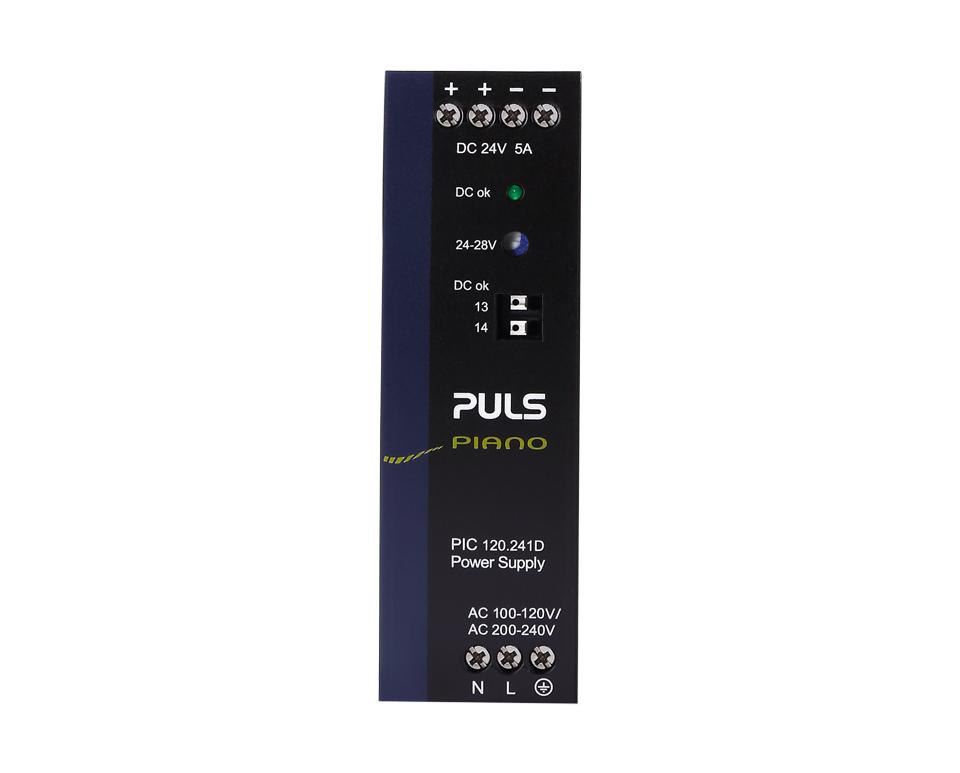

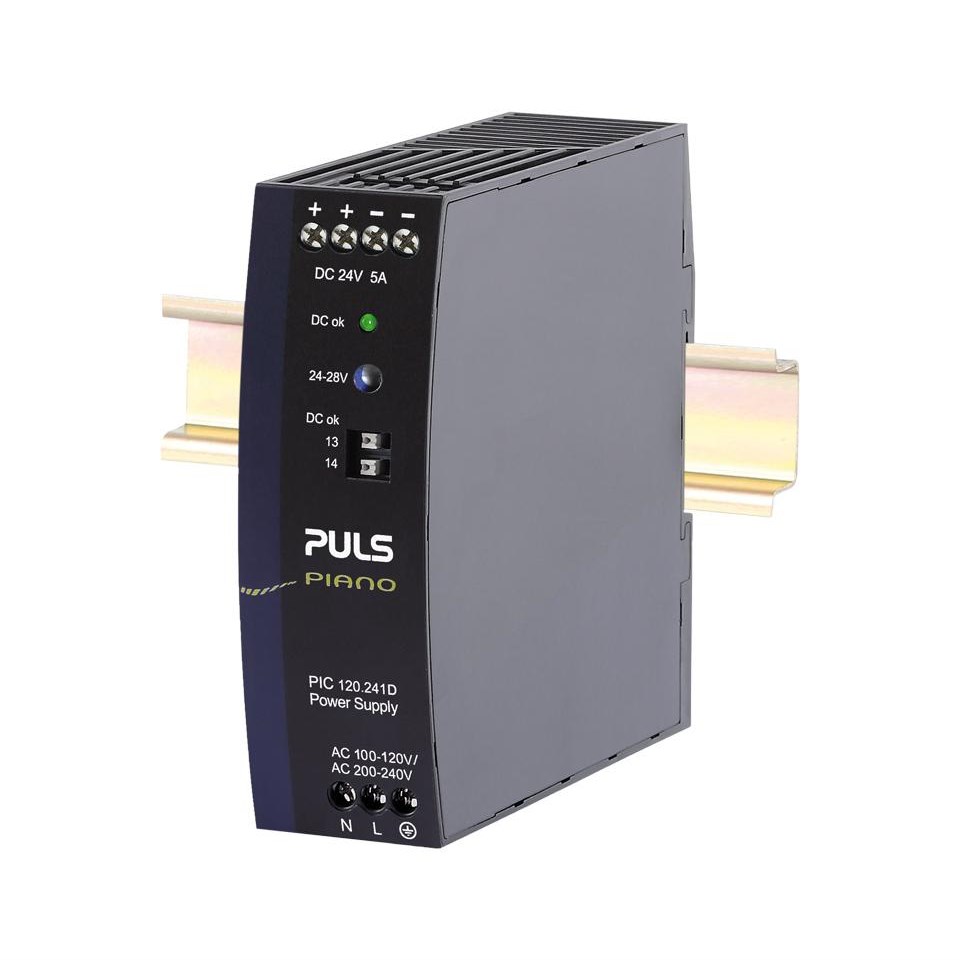

PULS DIN RAIL POWER SUPPLY 1 PHASE 24VDC 5A 120W PIC120.241D
