Control Element Colour	Black
Interlockable	Yes
Main Circuit Electrical Connection	Bolt Connection
Brand	ABB
Conventional Thermal Current - Ithe (A)	200 (Fully Enclosed)
Degree of Protection	IP00 (Front)
Dimensions (mm)	170W x 150H x 159.5D
Maximum Operational Voltage AC (V)	1000
Mounting Type	Base Mount
NEMA Degree of Protection	1
No. of Poles	6
Pollution Degree	3
Rated Conditional Short-Circuit Current - Inc (kA)	100 (315 A fuse, 500 V). 80 (355 A fuse, 690 V), 100 (250 A fuse, 690 V)
Rated Impulse Withstand Voltage (kV)	12
Rated Operational Current AC-21A 415V (A)	200
Rated Operational Current AC-22A 380-415V (A)	200
Rated Operational Current AC-23A 380-415V (A)	200
Rated Operational Power AC-23A 380-415V (kW)	110
Rated Operational Voltage (V)	1000
Rated Short-Time Withstand Current - Icw (kA)	8
Rated Uninterrupted Current - Iu (A)	200
Standards and Approvals	IEC 60947-3
Suitable For	Distribution Board Installation
Tightening Torque (Nm)	acc. IEC 60947-1 15 … 22
Type	Main Switch
Weight (kg)	2.6 (Net)

Transfer Switches

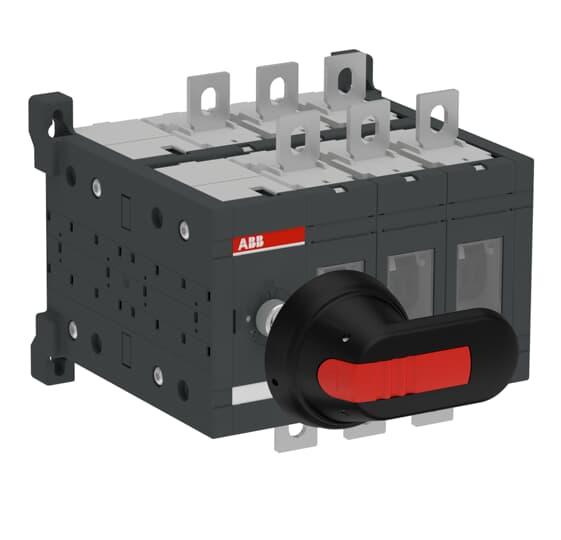

ABB OT200E03DP SWITCH-DISCONNECTOR OT200E03DP
