Specifications

Material	Body/Lens - Polycarbonate
Ambient Temperature Range (°C)	–25 to +55
Brand	PANASONIC

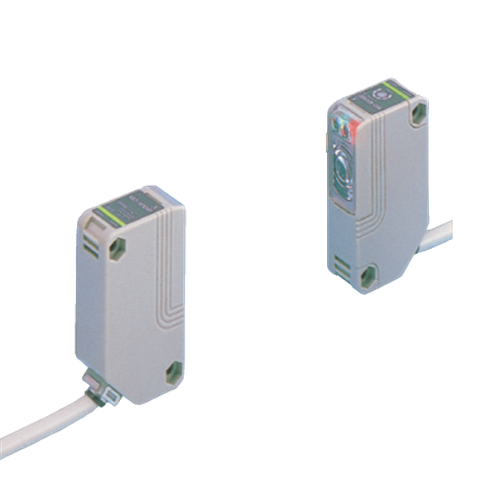

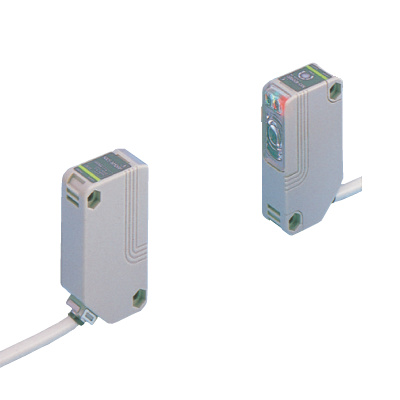

Product Type	Safety Sensor
Series	NX5
Type	Thru-beam, Long sensing range
Emitting Element	Infrared LED (modulated)
Operating State/Fault Indication	Operation - Red LED
Output Operation	Dark-ON
Outputs	Relay contact 1C/O
Power Consumption (VA)	Emitter -1.5 or less, Receiver -2 or less
Rated Supply Voltage AC (V)	24 - 240
Rated Supply Voltage DC (V)	12 - 240
Sensing Range (m)	30
Standard Sensing Object	ø20 mm or more opaque object
Degree of Protection	IP66
Pollution Degree	3
