Emitting Element	Infrared LED (modulated)
Output Operation	Light-ON
Power Consumption (VA)	Emitter -1.5 or less, Receiver -2 or less
Sensing Range (m)	30
Standard Sensing Object	ø20 mm or more opaque object
Brand	PANASONIC
Ambient Temperature Range (°C)	–25 to +55
Degree of Protection	IP66
Material	Body/Lens - Polycarbonate
Operating State/Fault Indication	Operation - Red LED
Outputs	Relay contact 1C/O
Pollution Degree	3
Rated Supply Voltage AC (V)	24 - 240
Rated Supply Voltage DC (V)	12 - 240
Series	NX5
Type	Thru-beam, Long sensing range

Position Switches & Sensors

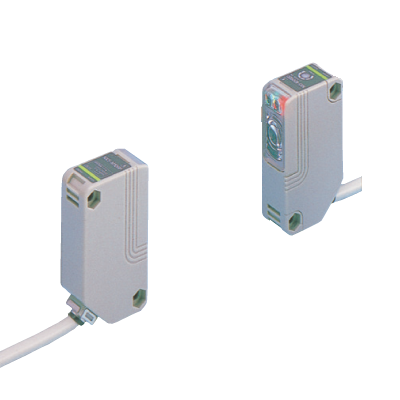

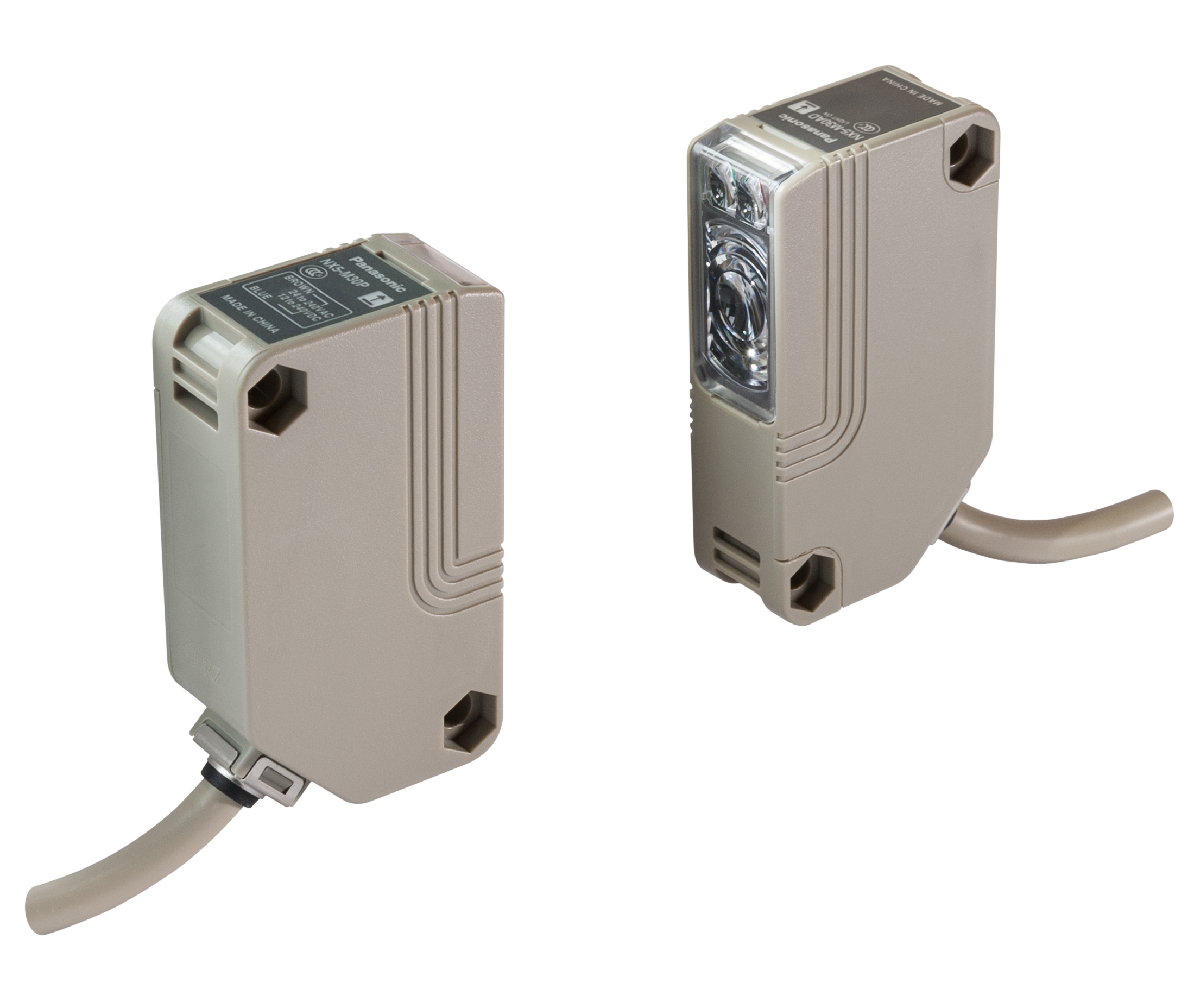

PANASONIC MULTI-VOLTAGE PHOTOELECTRIC SENSOR NX5-M30A
