Product Code: ML50.102

This product features a wide-range input of 100-240V, ensuring compatibility withVarious power sources. With an efficiency of up to 90%, it maximizes energy utilization. It is NEC Class 2 listed, meeting safety standards for electrical equipment. The full output power is available in temperatures ranging from -10°C to +60°C, making it suitable for different environments. Additionally, it is equipped with quick-connect spring-clamp terminals for easy installation and connection.

AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	China / Czech Republic
Derating	1.3 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	90.00%
External Input Fuse Recommendation	B-10 A / C-6 A
Input Inrush Current (A)	17 / 35
Input Inrush Current Limitation	NTC
Input Voltage Range AC (V)	100-240
Input Voltage Range DC (V)	110-300
Integrated Decoupling Function	No
Maximum Input Voltage DC (V)	300
Maximum Ripple and Noise Voltage (mVpp)	100
Minimum Input Voltage DC (V)	110
Output Current Range (A)	4.2 - 3.4
Output Power (W)	50
Output Voltage (V)	12-15
Power Factor	0.52
Special Application	Hazardous location
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Spring clamps
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	45W x 75H x 91D
Family	MiniLine
Mounting Type	DIN Rail
Power Loss (W)	6
Range	MiniLine
Rated Current (A)	4.2
Series	ML series
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, UL 508 Canada, UL 508 USA, UL 1310 NEC Class 2, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	260

Industrial Power Supplies

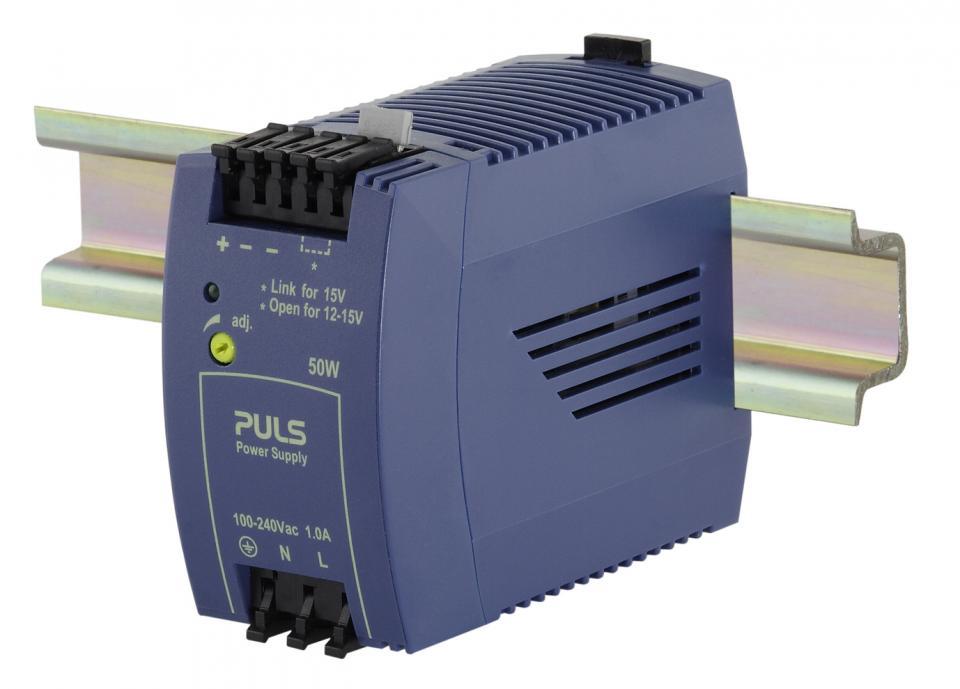

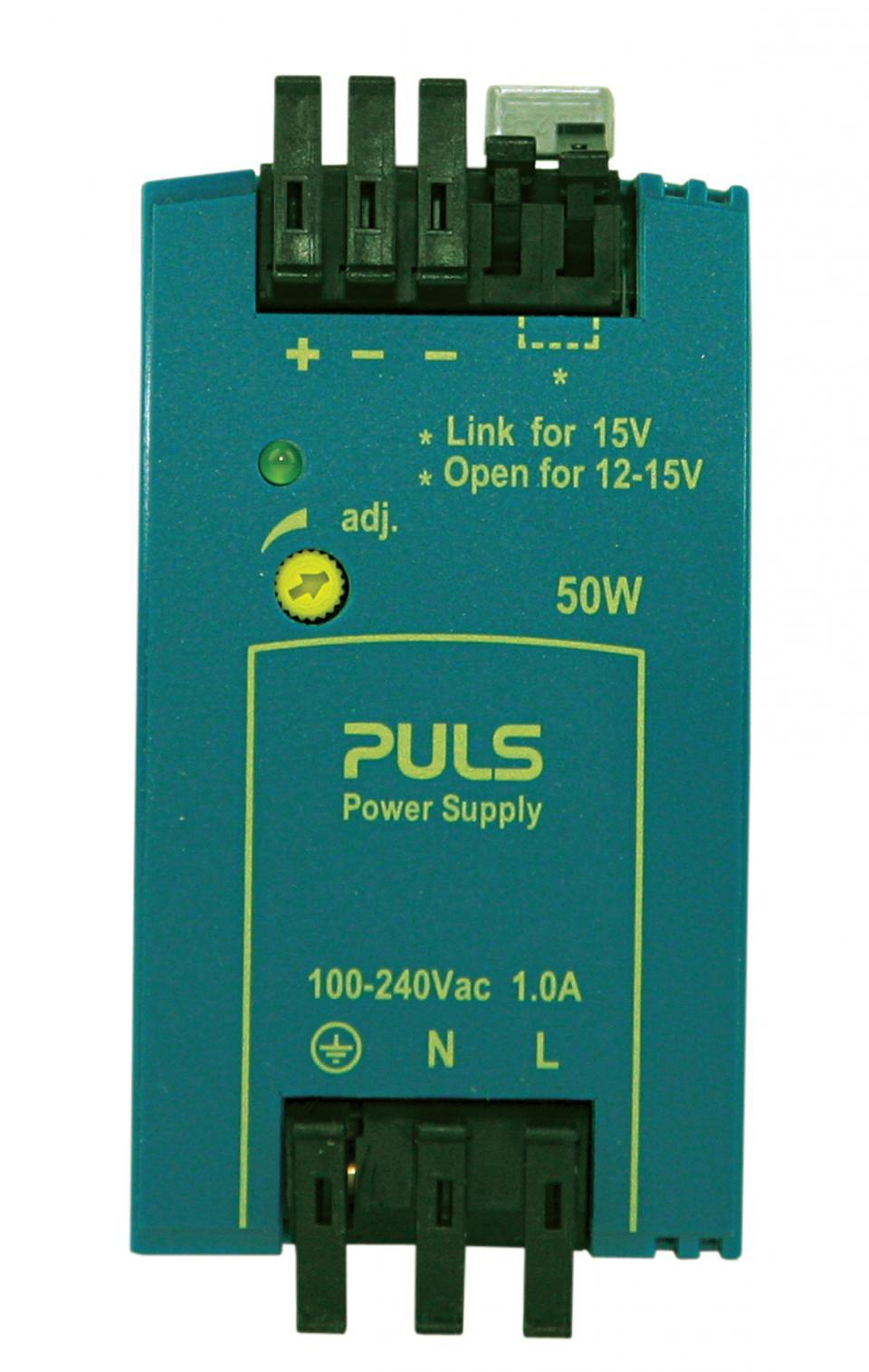

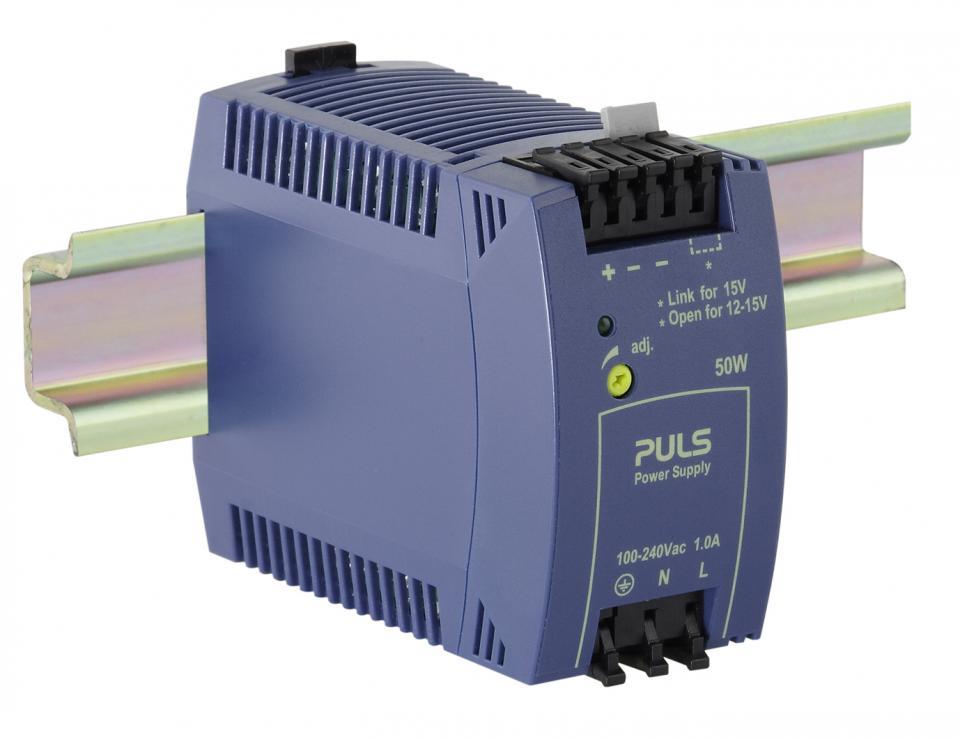

PULS DIN RAIL POWER SUPPLY 1 PHASE 12VDC 4.2A 50W ML50.102
