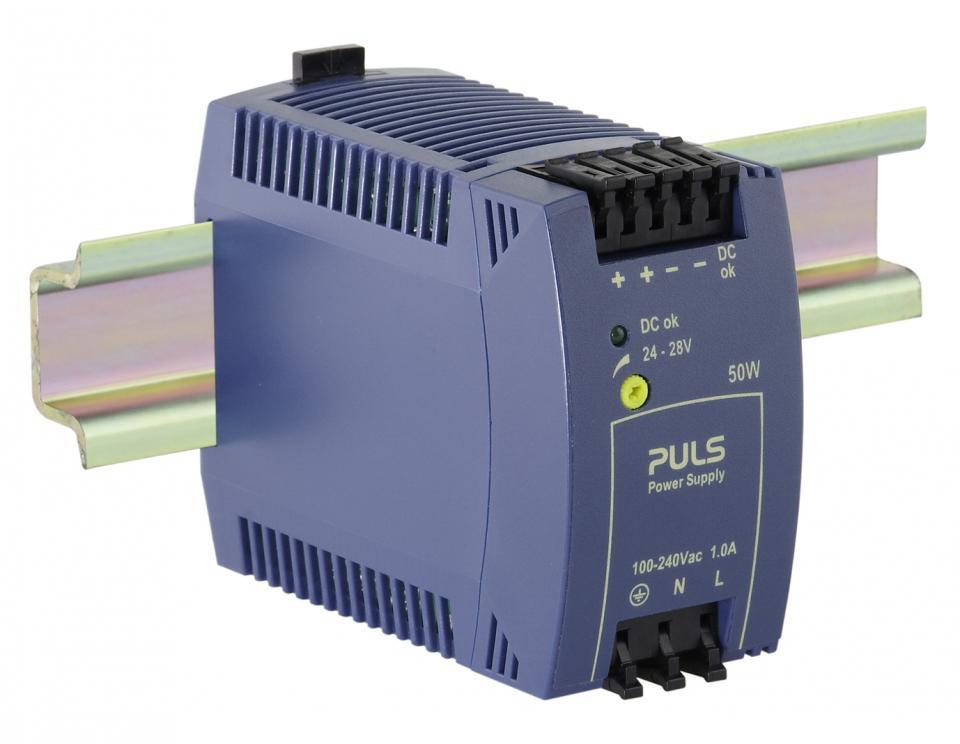

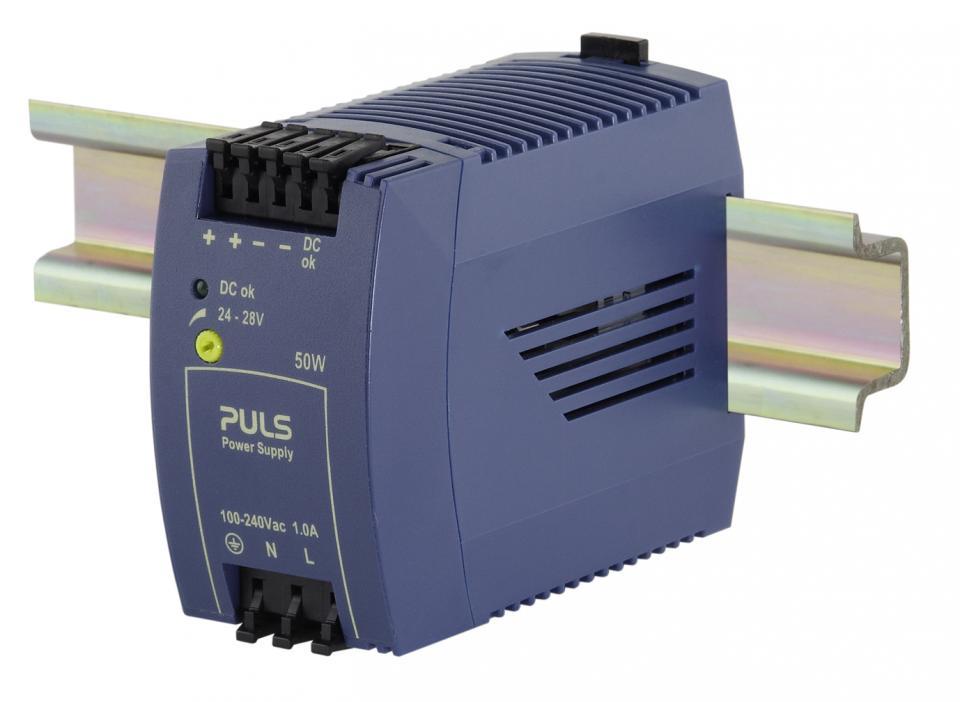

PULS DIN RAIL POWER SUPPLY 1 PHASE 24VDC 2.1A 50W ML50.101

Product Code: ML50.101

This product features a DC-OK signal output, allowing for easy monitoring. It also has a parallel mode for load sharing, ensuring efficient power distribution. Additionally, it is NEC Class 2 Listed, meeting safety standards. The product operates at full output power in temperatures ranging from -10 to +60 degrees Celsius. It is equipped with quick-connect spring-clamp terminals for convenient installation.

Technical Specifications

AC Input Type Wide-range
Conformal Coating No
Country of Origin China / Czech Republic
DC-OK Signal Yes
Derating 1.3 W/°C
Derating Temperature (°C) > +60
E Classification E-CS01
Efficiency 88.50%
External Input Fuse Recommendation B-10 A / C-6 A
Input Inrush Current (A) 17 / 35
Input Inrush Current Limitation NTC
Input Voltage Range AC (V) 100-240
Input Voltage Range DC (V) 110-300
Integrated Decoupling Function No
Maximum Input Voltage DC (V) 300
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 110
Output Current Range (A) 2.1 - 1.8
Output Power (W) 50
Output Voltage (V) 24-28
Power Factor 0.52
Special Application Hazardous location, Semiconductor
Use In Crosslinking Yes
Brand PULS
Connection Type Spring clamps
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 45W x 75H x 91D
Family MiniLine
Mounting Type DIN Rail
Power Loss (W) 6.8
Range MiniLine
Rated Current (A) 2.1
Series ML series
Standards and Approvals Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, SEMI F47, UL 508 Canada, UL 508 USA, UL 1310 NEC Class 2, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 240
