Product Code: ML15.241

This product features a wide range input of 100-240V, making it suitable forVarious power sources. It is NEC Class2 compliant, ensuring safety and reliability. The outputVoltage can be adjusted according to specific requirements. With an efficiency of up to 86.1%, it maximizes energy utilization. Despite its compact design with a width of only 22.5mm, it delivers full output power between -10°C and +60°C, making it suitable for different operating conditions. Additionally, it comes with a large international approval package, ensuring its compatibility and compliance with global standards.

AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	China / Czech Republic
Derating	0.4 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	85.10%
External Input Fuse Recommendation	B-6 A / C-3 A
Input Inrush Current (A)	16 / 31
Input Inrush Current Limitation	NTC
Input Voltage Range AC (V)	100-240
Input Voltage Range DC (V)	110-300
Integrated Decoupling Function	No
Maximum Input Voltage DC (V)	300
Maximum Ripple and Noise Voltage (mVpp)	50
Minimum Input Voltage DC (V)	110
Output Current Range (A)	0.63 - 0.54
Output Power (W)	15
Output Voltage (V)	24-28
Power Factor	0.44
Special Application	Hazardous location, Marine
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	23W x 75H x 91D
Family	MiniLine
Mounting Type	DIN Rail
Power Loss (W)	2.7
Range	MiniLine
Rated Current (A)	0.63
Series	ML series
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 1310 NEC Class 2, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	130

Industrial Power Supplies

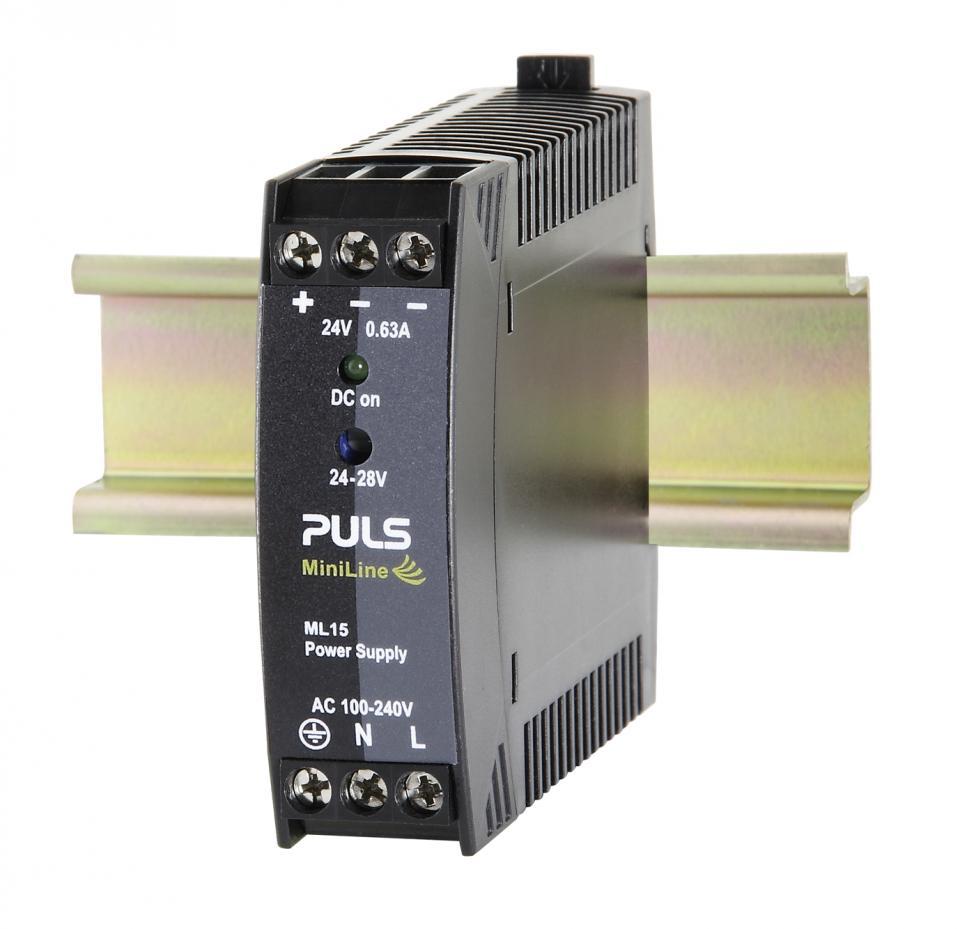

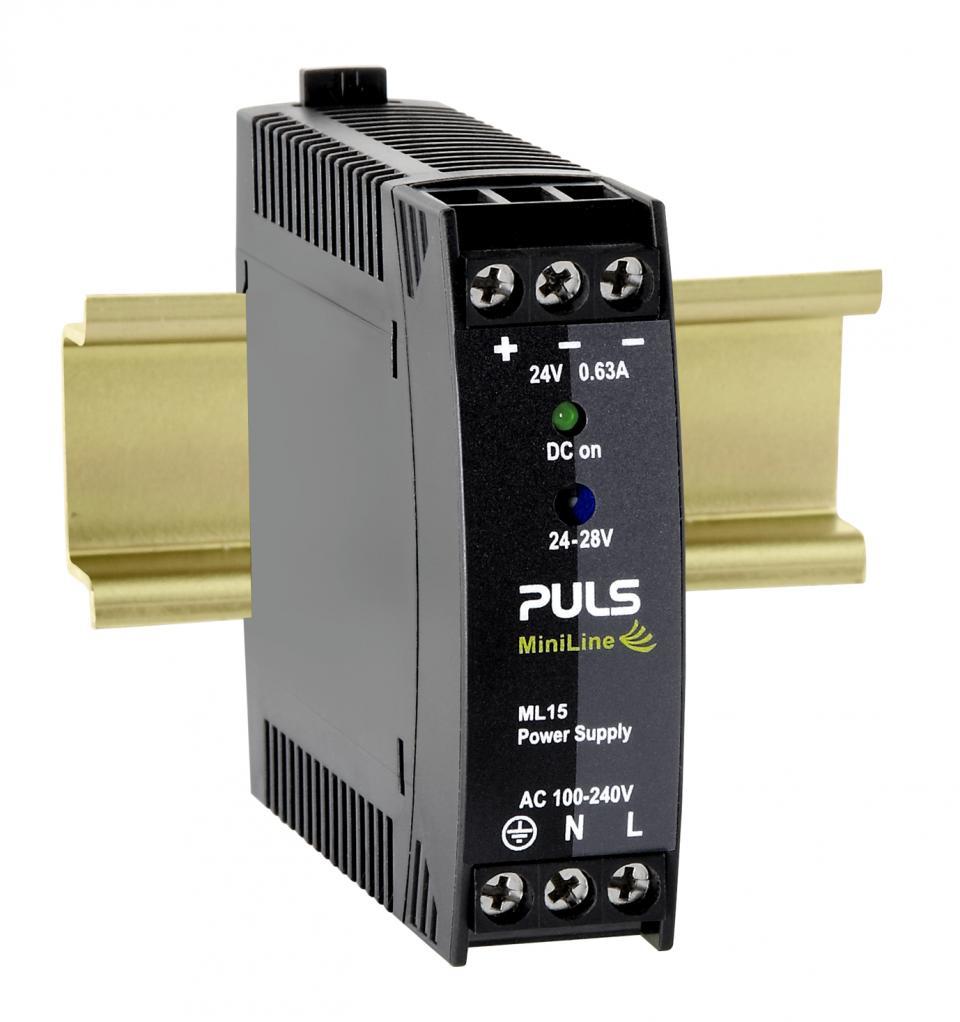

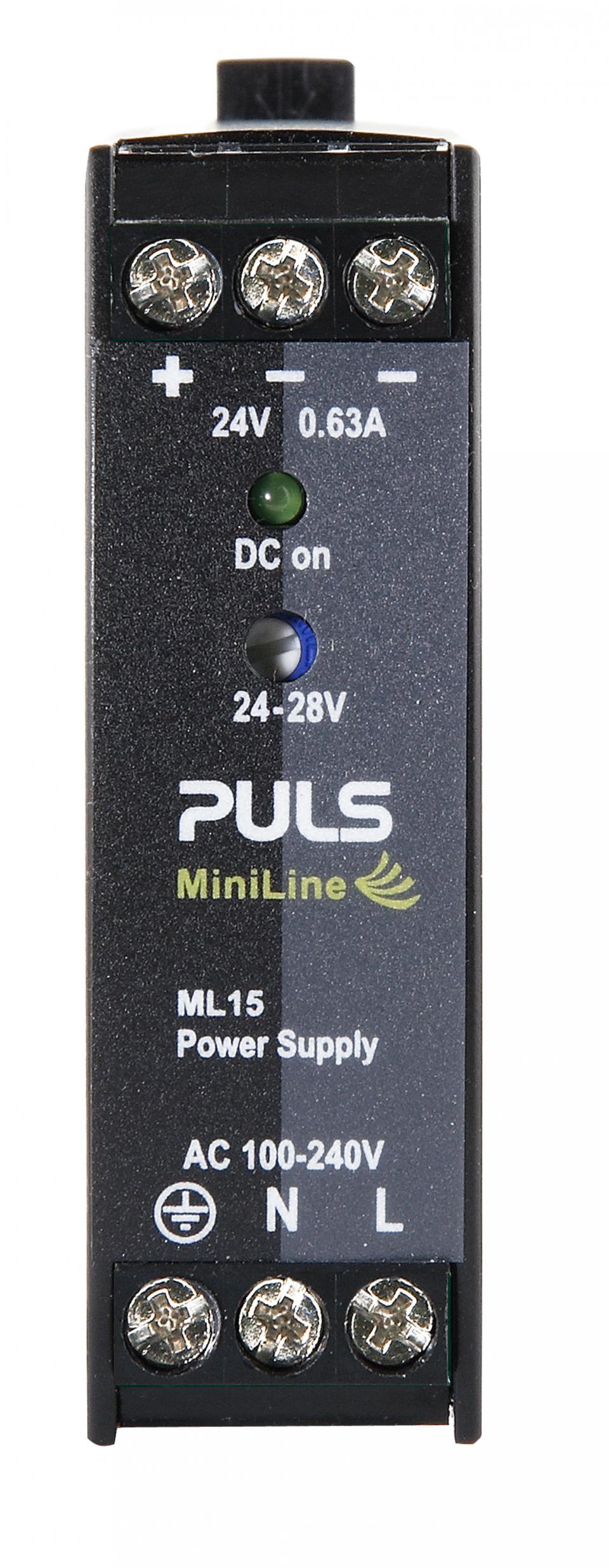

PULS DIN RAIL POWER SUPPLY 1 PHASE 24VDC 0.63A 15W ML15.241
