Product Code: ML15.121

This product features a wide range input of 100-240V, making it suitable forVarious power sources. It is NEC Class2 compliant, ensuring safety and reliability. The outputVoltage can be adjusted as needed. With an efficiency of up to 83%, it maximizes energy usage. Its compact design with a width of only 22.5mm allows for easy installation in tight spaces. It operates at full output power between -10°C and +60°C, providing consistent performance in different temperature conditions. Additionally, it comes with a large international approval package, meeting global standards and regulations.

AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	China / Czech Republic
Derating	0.4 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	82.50%
External Input Fuse Recommendation	B-6 A / C-3 A
Input Inrush Current (A)	16 / 31
Input Inrush Current Limitation	NTC
Input Voltage Range AC (V)	100-240
Input Voltage Range DC (V)	110-300
Integrated Decoupling Function	No
Maximum Input Voltage DC (V)	300
Maximum Ripple and Noise Voltage (mVpp)	75
Minimum Input Voltage DC (V)	110
Output Current Range (A)	1.3 - 1
Output Power (W)	15
Output Voltage (V)	12-15
Power Factor	0.44
Special Application	Hazardous location, Marine
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	23W x 75H x 91D
Family	MiniLine
Mounting Type	DIN Rail
Power Loss (W)	3.2
Range	MiniLine
Rated Current (A)	1.3
Series	ML series
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 1310 NEC Class 2, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	130

Industrial Power Supplies

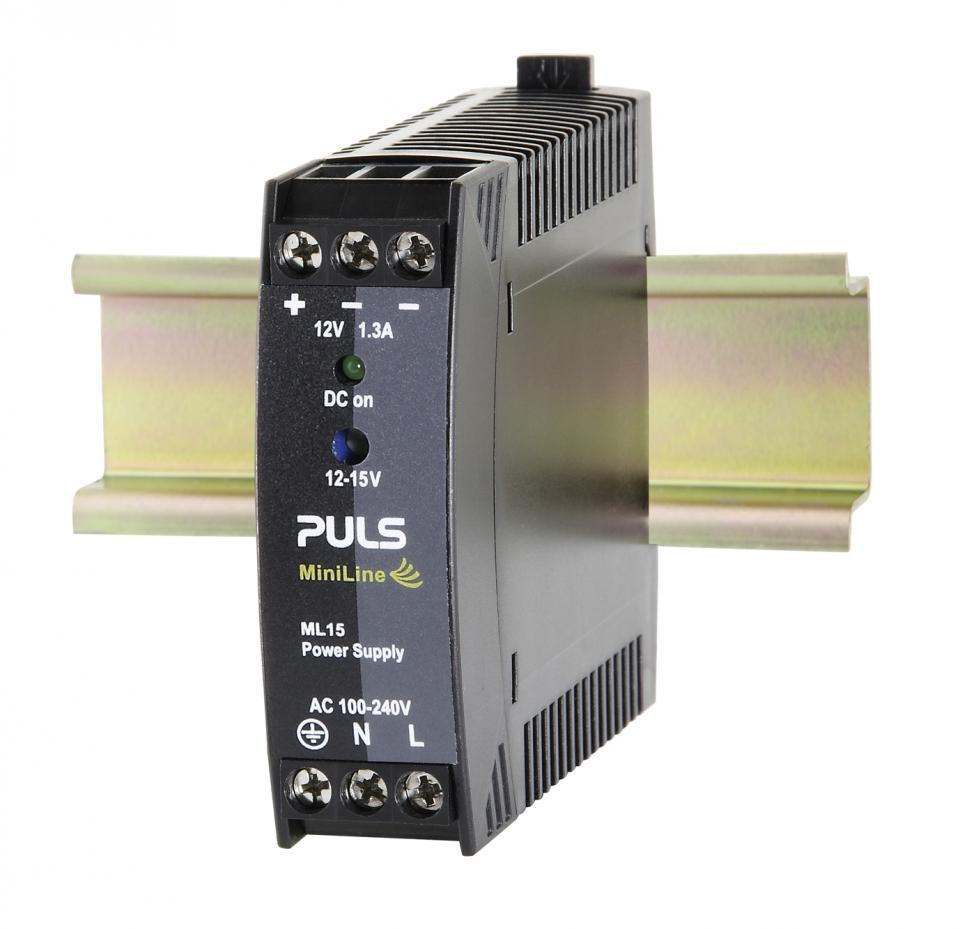

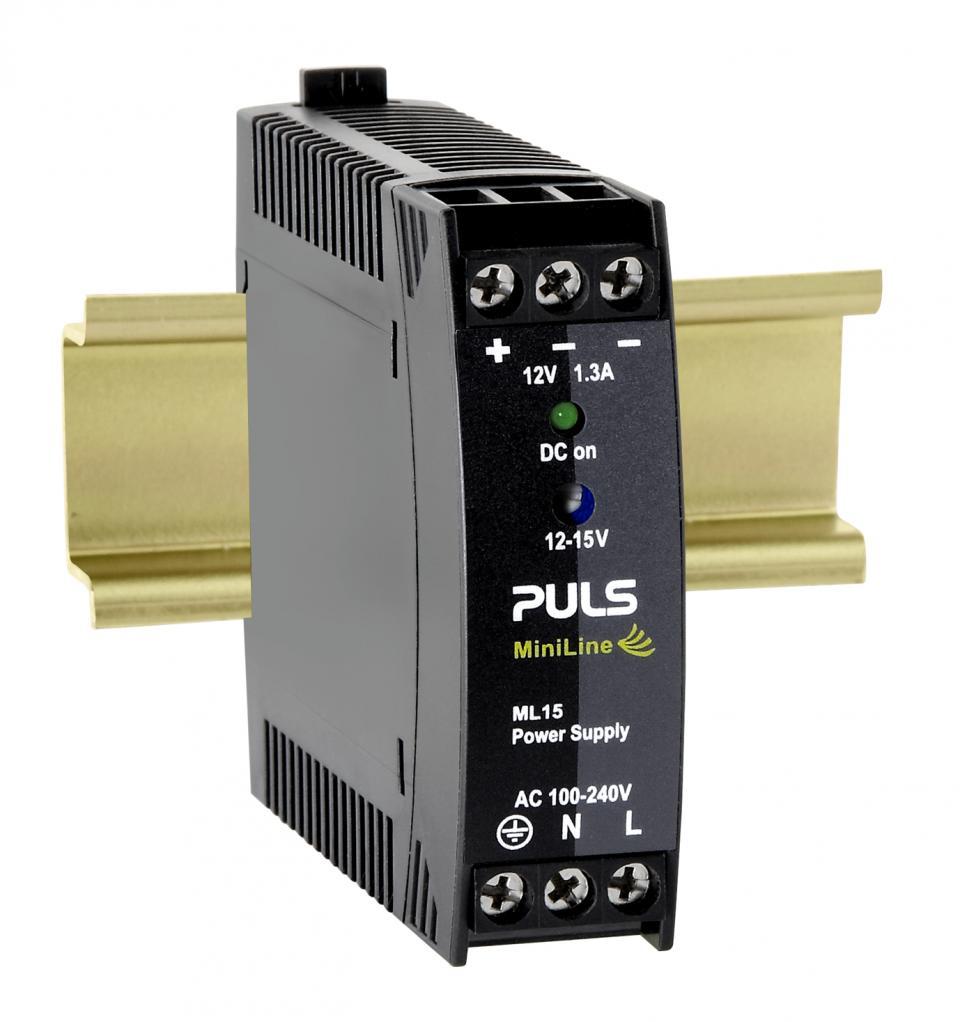

PULS DIN RAIL POWER SUPPLY 1 PHASE 12VDC 1.3A 15W ML15.121

Product Code: ML15.121
