Product Code: KW2D-R100Q4E

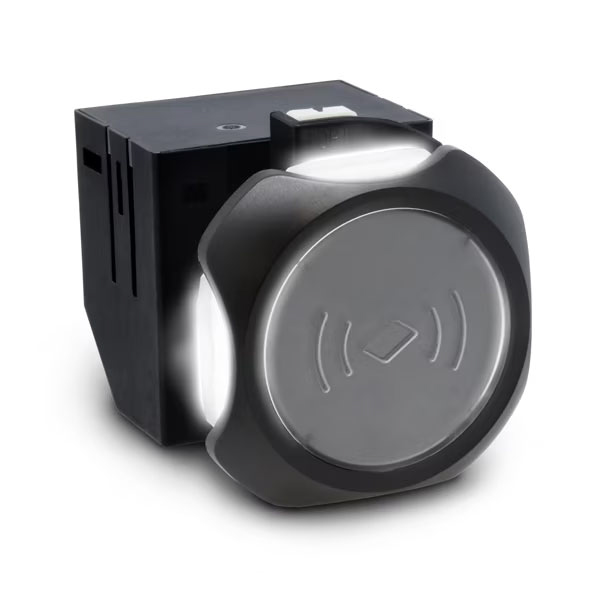

The IDEC KW2D-R100Q4E is a smart RFID reader designed for efficient and secure data collection. This 24V DC unit features a built-in RJ45 Ethernet port for network connectivity and push-in power terminals to ensure safe and easy installation. Equipped with a built-in LED and an auxiliary buzzer, it provides clear status indication and audible alerts. The device also comes with a free configuration software tool, simplifying setup and customization for various applications.

Carrier Frequency (MHz)	13.56 (HF Band)
Reading Distance (mm)	Card Type: 15mm, Keyfob: 5mm
Transmission Rate	10BASE-T, 100BASE-TX
Withstand Voltage AC (V)	500, 1 minute
Brand	IDEC
Approvals	IEC/EN61131-2, UL61010-1-12, UL 61010-2-201, EN50364
Communication	Ethernet
Degree of Protection	IP65/67
Dimensions (mm)	43.6W x 43.6H x 57.5D
Inrush Current (A)	25
Insulation Resistance (MO)	100 or higher
Operational Temperature Range (°C)	-25°C to +55°C
Power Consumption (W)	2.4 at 24V DC
Rated Insulation Voltage DC (V)	50
Rated Voltage DC (V)	24
Standards	ISO/IEC 14443 Type A, ISO/IEC 18092 Type F, JIS X6319-4 Type F, ISO/IEC 15693 Type V

Position Switches & Sensors

IDEC SMART RFID READER WITHOUT HOLDER 24V DC Ã¸22mm WITH BUILT-IN ETHERNET KW2D-R100Q4E

Product Code: KW2D-R100Q4E
