Product Code: IC695ALG626

The Emerson RX3i Analog Input Module is a versatile component for automation systems, designed to fit seamlessly into chassis-based setups. This module supports a broad range of input types including voltage, current, RTD, and thermocouple with the flexibility of 4 to 16 channels. It's engineered for robust communication with network interfaces such as PROFINET, PROFIBUS DP, Modbus TCP, EGD, and CMX. Ideal for complex machinery, process control, motion control, and general automation tasks, this PLC from the RX3i series can be mounted on-panel or on a DIN rail to suit various installation requirements.

Maximum Temperature (°C)	60
Minimum Temperature (°C)	0
No. of Analogue Inputs	16
No. of IO	16
Rated Maximum Operational Voltage DC (V)	10
Rated Minimum Operational Voltage DC (V)	-10
Rated Operational Current (A)	0.02
Brand	Emerson
Communication Protocols	MODBUS, PROFINET, PROFIBUS
Approvals	Zone 2 CE, ATEX C1D2 ABS, BV, DNV, GL, KRS, LR
Degree of Protection	IP20
Mounting Type	On Panel / DIN Rail
Series	RX3i
Standards and Approvals	ATEX/IECeX

Programmable Logic Controllers & I/O

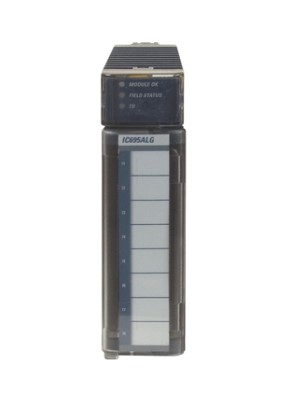

EMERSON RX3I ANALOG INPUT MODULE, HART, 16/8 CHANNEL IC695ALG626

Product Code: IC695ALG626
