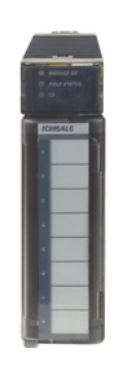

EMERSON RX3I UNIVERSAL ANALOG INPUT MODULE IC695ALG600

Product Code: IC695ALG600

The Emerson RX3i Analog Input Module is a versatile component for automation systems, designed to fit seamlessly into chassis-based setups. This module supports a broad range of inputs, including voltage, current, RTD, and thermocouple with 4 to 16 channels available, catering to diverse measurement needs. It boasts robust network compatibility featuring interfaces such as PROFINET, PROFIBUS DP, Modbus/TCP, EGD, and CMX. Engineered for reliability in complex machinery control, process control, motion control, and general automation tasks, this PLC from the RX3i series can be mounted on-panel or on a DIN rail for flexible installation options.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of Analogue Inputs 8
No. of IO 8
Rated Maximum Operational Voltage DC (V) 10
Rated Minimum Operational Voltage DC (V) -10
Rated Operational Current (A) 0.02
Brand Emerson
Communication Protocols MODBUS, PROFINET, PROFIBUS
Degree of Protection IP20
Mounting Type On Panel / DIN Rail
Series RX3i
Standards and Approvals ATEX/IECeX
