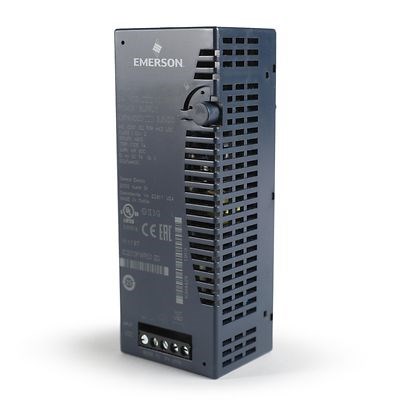

EMERSON VERSAMAX POWER SUPPLY WITH EXPANDED 3.3VDC 24VDC INPUT MODULE, IC200PWR002

Product Code: IC200PWR002

The Emerson VersaMax 24 VDC Power Supply is a robust component designed for automation systems, specifically within the PLC category. This power supply unit offers dual output voltages of 5 VDC and an expanded 3.3 VDC, with a total output current capacity of up to 1.5 A maximum. It ensures operational safety with built-in protection against short circuits, overload, and reverse polarity. As part of the VersaMax series, it stands out for its reliability in demanding industrial environments.

Technical Specifications

Maximum Nominal Output Voltage DC (V) 5
Maximum Temperature (°C) 60
Minimum Nominal Output Voltage DC (V) 3.3
Minimum Temperature (°C) -20
Nominal Output Current (A) 1.5
Rated Maximum Operational Voltage DC (V) 24
Brand Emerson
Degree of Protection IP20
Mounting Type DIN Rail
Series VersaMax
