Product Code: HG1P-ST32ZBFH-B0

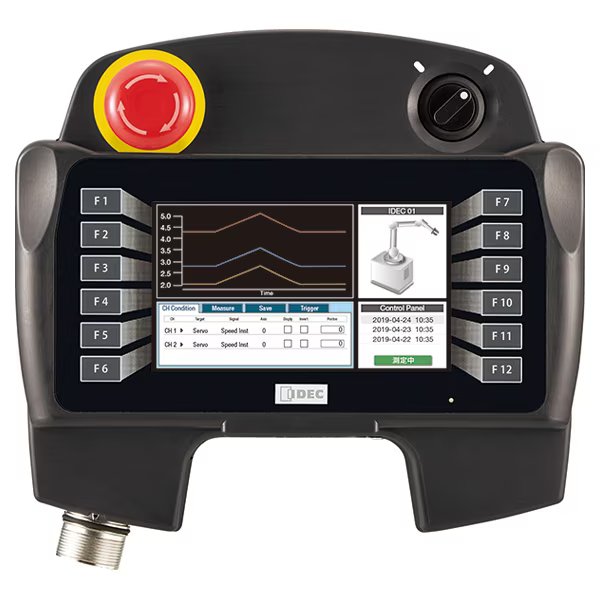

The IDEC HG1P-ST32ZBFH-B0 is a handheld HMI with a 4.3-inch display, designed for on-the-go monitoring and control in industrial environments. It supports RS422/RS485 serial communication and includes an emergency stop function for enhanced safety. Its robust design ensures durability, while the lightweight and compact form factor facilitates ease of use and portability. This device integrates seamlessly with Ethernet networks, offering a versatile solution for machine operators.

Display Screen Size (mm)	95.0 W × 53.8 H
Resistance to Shock (m/s²)	147
Resistance to Vibrations	5-8.4Hz
Screen Resolution	80W × 272H
Viewing Angle	Left / Right: 80°, Top: 65°, Bottom: 55°
Voltage Range (DC)	20.4-28.8
Brand	IDEC
Dimensions (mm)	191.0W × 168.9H × 56.0D
Display Screen Type	TFT Color LCD
Minimum Electrical Life	1000000
Operating Humidity	10 to 90%
Operational Temperature Range (°C)	0 to 45
Power Consumption (W)	3
Weight (g)	500

HMI Panels

IDEC HAND HELD HMI 4.3inch CHIP 54F RS422/RS485 SERIAL E-STOP HG1P-ST32ZBFH-B0

Product Code: HG1P-ST32ZBFH-B0

Technical Specifications
